Kurt HP420 Vise Replacement Parts

Kurt HP420 Vise Replacement Parts

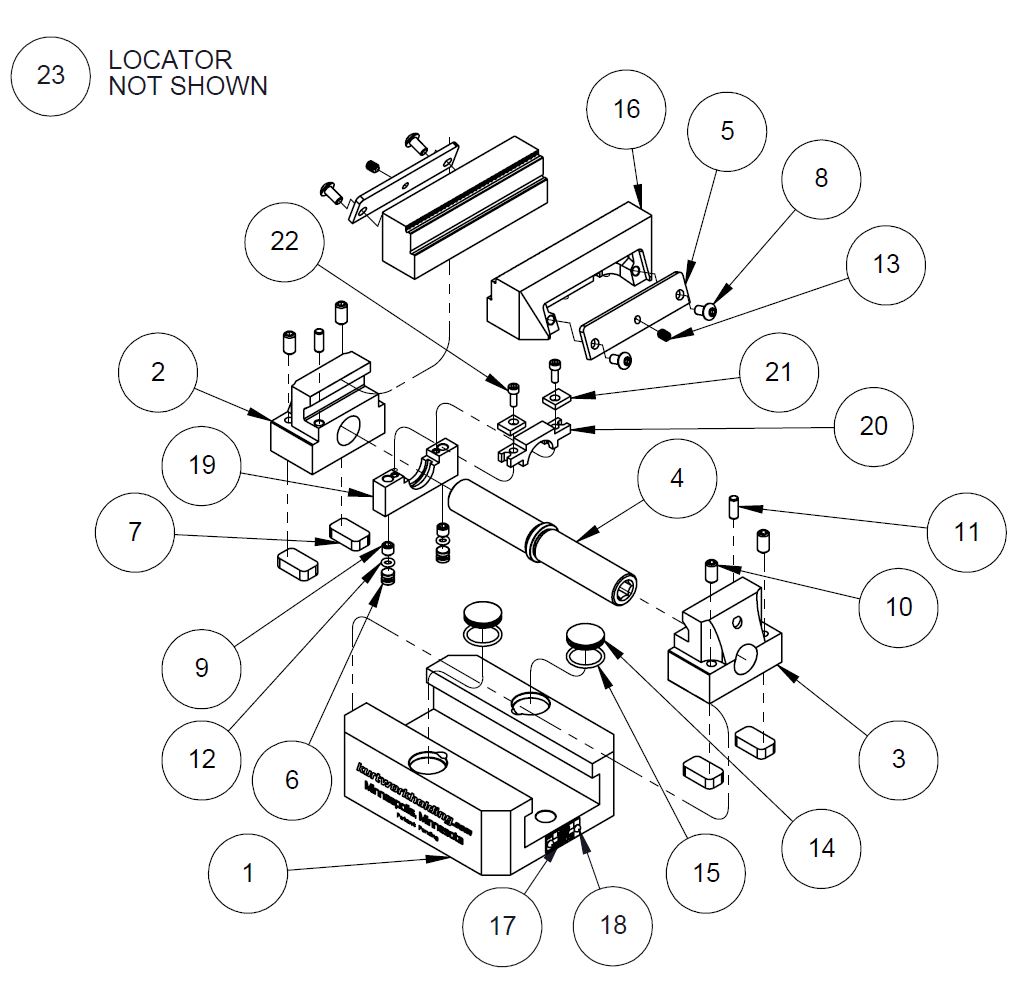

CalloutQty NeededNamePart No.PriceBuy
1Kurt SHSS 8-32 x .25 LG flat pt. - 01-145101-1451$6.00
212Kurt Polyurethane Seal Cover - HP420-156-CPHP420-156-CP$8.00
92Kurt SHSS, Flat Point, 1/4-28 X .25 LG - 01-047301-0473$6.00
182Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
1Kurt Hex Adaptor - ML35-293ML35-293$33.00
112Kurt Dowel Pin 0.1875 x 0.5LG - 04-002804-0028$6.00
84Kurt SBHCS 10-32 x 0.375 LG - 03-002103-0021$6.00
104Kurt SHSS Flt Pt 1/4-20 X .50lg Nyloc - 01-347601-3476$5.00
132Kurt 10-32 x .25LG Nyloc - 01-206101-2061$6.00
222Kurt SHCS 6-32 x 0.375LG - 00-116000-1160$6.00
201Kurt Thrust Locker - HP420-361A-CPHP420-361A-CP$36.00
74Kurt Thrust Plate - HP420-243-CPHP420-243-CP$16.00
191Kurt Holding Block, center - HP420-212A-CPHP420-212A-CP$73.00
52Kurt Rear Cover - HP420-53-CPHP420-53-CP$22.00
62Kurt Support Foot - HP420-126-CPHP420-126-CP$32.00
41Kurt Screw - HP420-5-CPHP420-5-CP$78.00
21Kurt Nut RH - HP420-3R-CPHP420-3R-CP$247.00
31Kurt Nut, LH - HP420-3L-CPHP420-3L-CP$247.00
162Kurt Movable Jaw, Dovetail - HP420-2HP420-2$342.00
1Kurt O-Ring, Buna-N 90 Dur #016 - SDW35-96SDW35-96$6.00
1Kurt O-Ring, Buna N, #011 - MLH35-68MLH35-68$6.00
1Kurt Handle Assembly for CL2 and ML35 - CL2-10-SA-CPCL2-10-SA-CP$40.00
122Kurt O-Ring, Buna N, #007 - 360AU-97360AU-97$6.00
142Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
