Kurt SCMX250 Vise Replacement Parts

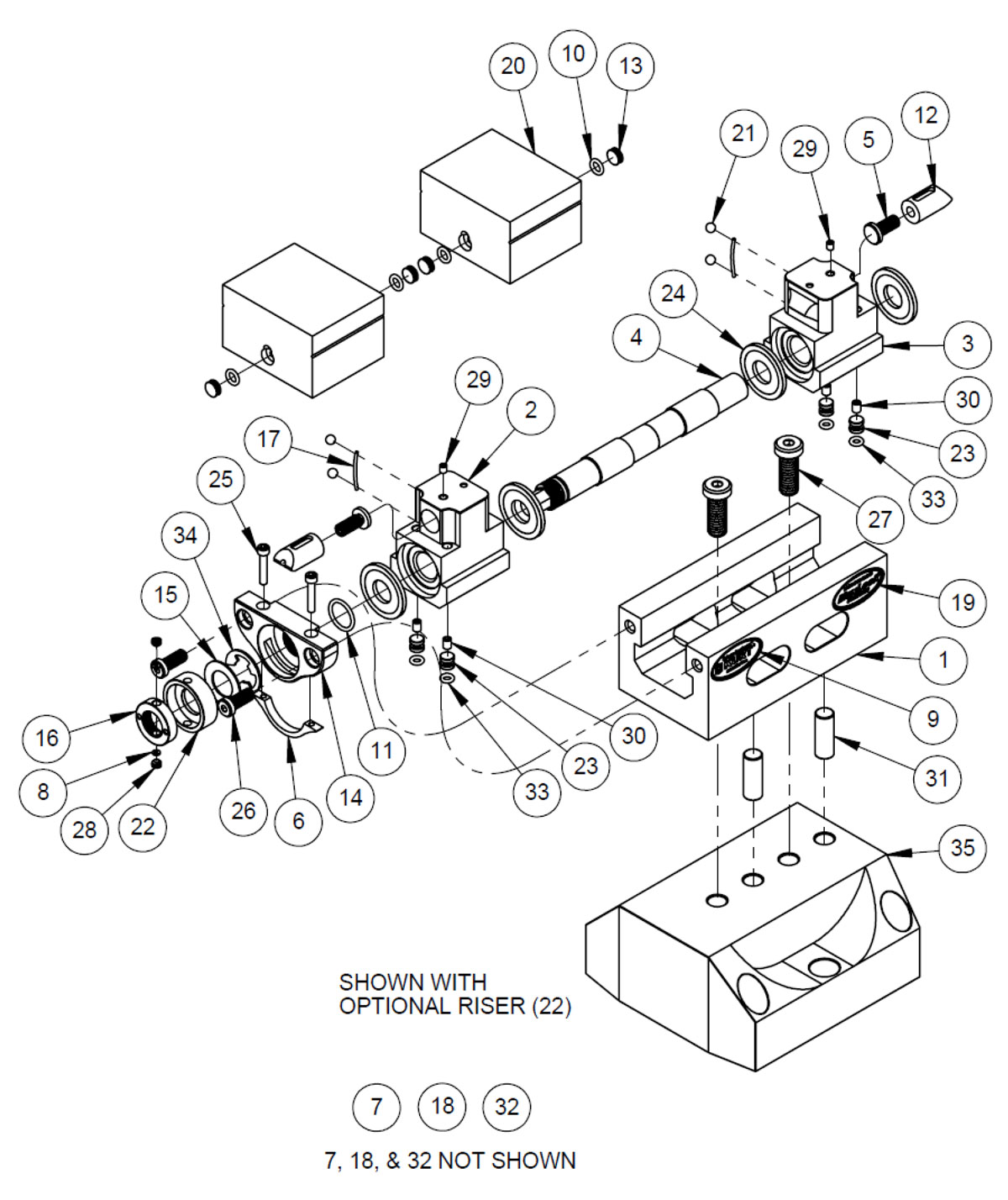

SCMX250 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
341Kurt Retaining Ring - SCMX250-217SCMX250-217$6.00
134Kurt Protective Plug Assembly - SCMX250-191-CPSCMX250-191-CP$11.00
111Kurt O-Ring, #015 - SCMX250-129SCMX250-129$6.00
104Kurt O-Ring, #009 - SCMX250-128SCMX250-128$6.00
312Kurt Dowel Pin 3/8 x 1 LG - 04-007004-0070$6.00
272Kurt LHSHCS 3/8-16 X 1 LG - 00-335500-3355$6.00
252Kurt SHCS 6-32 x 0.75LG - 00-116600-1166$6.00
61Kurt Pad Brake - SCMX250-16-CPSCMX250-16-CP$31.00
161Kurt Spanner Nut - SCMX250-291-CPSCMX250-291-CP$52.00
282Kurt Set Screw, 10-32 X .125 LG - 01-005901-0059$6.00
82Kurt Crush Washer - SCMX250-29-CPSCMX250-29-CP$6.00
304Kurt SHSS 8-32 x .25 LG flat pt. - 01-145101-1451$6.00
221Kurt Bearing Carrier - SCMX250-359-CPSCMX250-359-CP$66.00
234Kurt Support Foot - HP420-126-CPHP420-126-CP$32.00
0Kurt Aluminum Jaw Block Kit - SCMX250AL-JAWKITSCMX250AL-JAWKIT$279.00
214Kurt Steel ball - SCMX250-355SCMX250-355$8.00
172Kurt Wire spring - SCMX250-311SCMX250-311$8.00
141Kurt Screw support - SCMX250-224ASCMX250-224A$159.00
52Kurt Custom screw - SCMX250-11-CPSCMX250-11-CP$37.00
292Kurt 6-32 SHSS - 01-103901-1039$7.00
122Kurt Plunger - SCMX250-142-CPSCMX250-142-CP$93.00
202Kurt Jaw block - SCMX250-348SCMX250-348$176.00
31Kurt Rear nut - SCMX250-3R-CPSCMX250-3R-CP$341.00
21Kurt Front nut - SCMX250-3F-CPSCMX250-3F-CP$341.00
262Kurt 1/4-20 X .63 LG. LHCS - 00-328800-3288$6.00
41Kurt Screw - SCMX250-5A-CPSCMX250-5A-CP$93.00
244Kurt Brush seal - MX350-211MX350-211$17.00
151Kurt Thrust Washer, .031 thick - SCMX250-271-CPSCMX250-271-CP$8.00
334Kurt O-Ring, Buna N, #007 - 360AU-97360AU-97$6.00
