Kurt SCMX425 Vise Replacement Parts

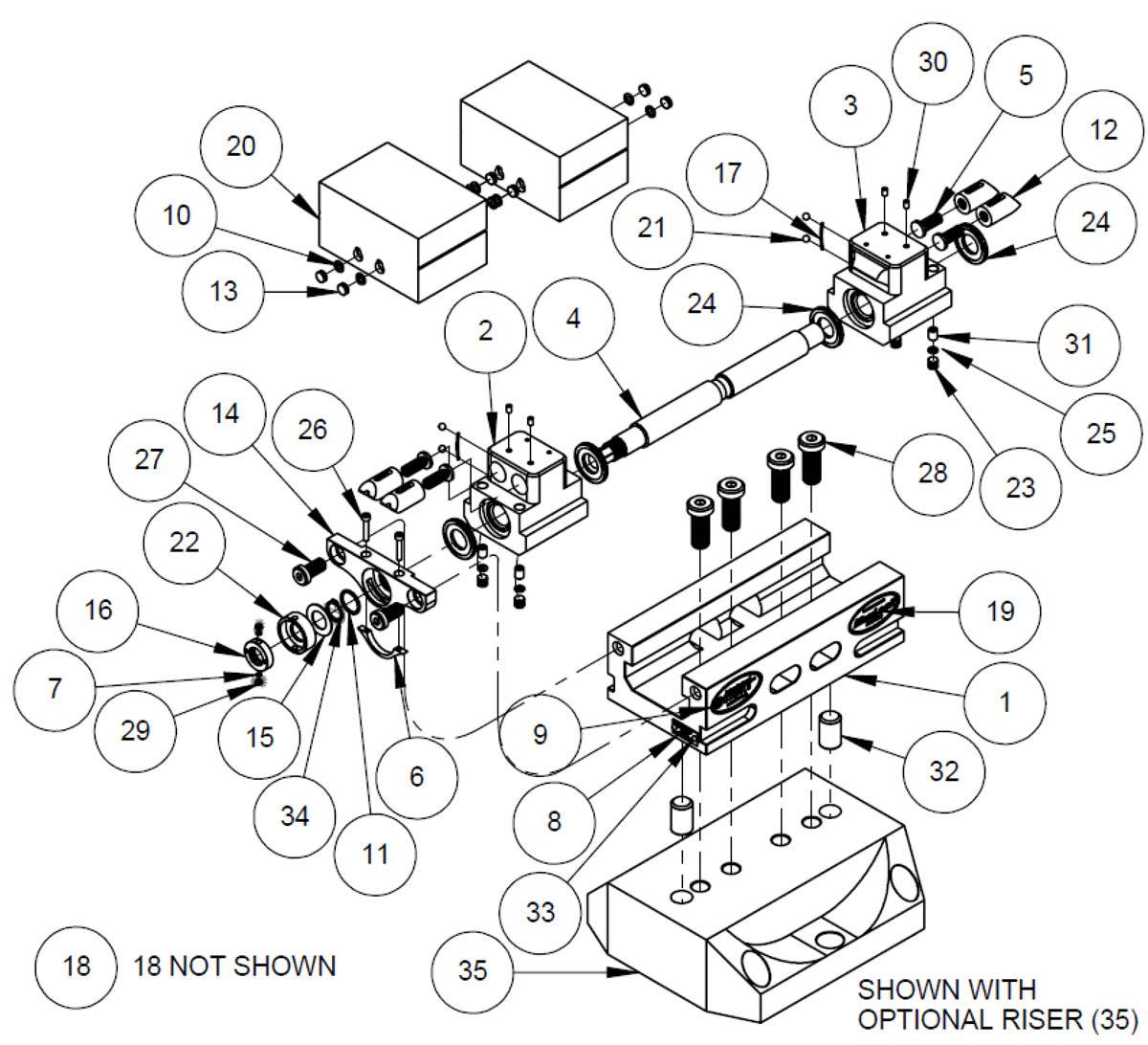

SCMX425 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
341Kurt Retaining Ring - SCMX425-217SCMX425-217$6.00
1Kurt Handle Assembly - SCMX425-10-SA-CPSCMX425-10-SA-CP$55.00
138Kurt Protective Plug Assembly - SCMX250-191-CPSCMX250-191-CP$11.00
108Kurt O-Ring, #009 - SCMX250-128SCMX250-128$6.00
262Kurt SHCS 6-32 x 0.75LG - 00-116600-1166$6.00
61Kurt Pad Brake - SCMX250-16-CPSCMX250-16-CP$31.00
161Kurt Spanner Nut - SCMX250-291-CPSCMX250-291-CP$52.00
292Kurt Set Screw, 10-32 X .125 LG - 01-005901-0059$6.00
72Kurt Crush Washer - SCMX250-29-CPSCMX250-29-CP$6.00
221Kurt Bearing Carrier - SCMX250-359-CPSCMX250-359-CP$66.00
234Kurt Support Foot - HP420-126-CPHP420-126-CP$32.00
1Kurt Aluminum Jaw Block Kit - SCMX425AL-JAWKITSCMX425AL-JAWKIT$460.00
141Kurt Screw support - SCMX425-224ASCMX425-224A$156.00
304Kurt 6-32 SHSS - 01-144001-1440$7.00
54Kurt Custom screw - SCMX425-11-CPSCMX425-11-CP$44.00
124Kurt Plunger - SCMX425-142-CPSCMX425-142-CP$72.00
202Kurt Jaw block - SCMX425-348SCMX425-348$281.00
31Kurt Rear nut - SCMX425-3R-CPSCMX425-3R-CP$430.00
21Kurt Front nut - SCMX425-3F-CPSCMX425-3F-CP$317.00
41Kurt Screw - SCMX425-5A-CPSCMX425-5A-CP$96.00
212Kurt Steel ball - SCMX250-355SCMX250-355$8.00
172Kurt Wire spring - SCMX250-311SCMX250-311$8.00
0Kurt 1/4-20 X .63 LG. LHCS - 00-328800-3288$6.00
272Kurt 3/8-16 X 0.75LG. LHCS - 00-335200-3352$6.00
111Kurt O-Ring, Buna-N 90 Dur #016 - SDW35-96SDW35-96$6.00
154Kurt Thrust Washer, .031 thick - SCMX250-271-CPSCMX250-271-CP$8.00
244Kurt Internal Brush Seal - PT400-211PT400-211$10.00
254Kurt O-Ring, Buna N, #007 - 360AU-97360AU-97$6.00
