Kurt PF460 Vise Replacement Parts

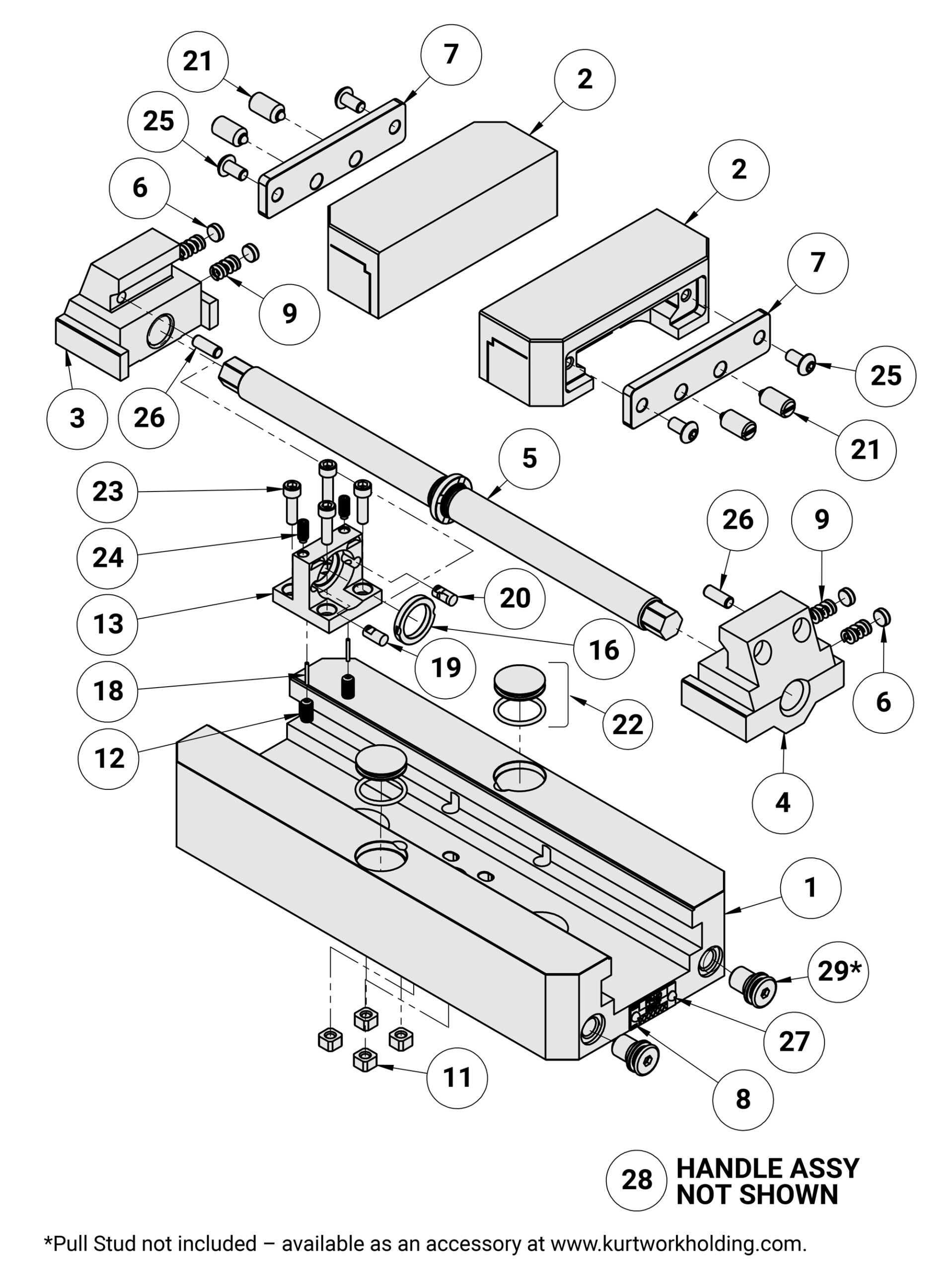

Kurt PF460 Replacement Parts Diagram

Show per page

Callout	Qty Needed	Name	Part No.	Price	Buy
2	2	Kurt Serrated Jaw - PF420-2S	PF420-2S	$352.00	Kurt Serrated Jaw - PF420-2S quantity
2	2	Kurt Dovetail Jaw - PF420-2D	PF420-2D	$352.00	Kurt Dovetail Jaw - PF420-2D quantity
2	2	Kurt Machinable Jaw - PF420-2C	PF420-2C	$238.00	Kurt Machinable Jaw - PF420-2C quantity
3	1	PF Vise Right Threaded Machined Nut - PF420-3R	PF420-3R	$93.00	PF Vise Right Threaded Machined Nut - PF420-3R quantity
4	1	PF Vise Left Threaded Machined Nut - PF420-3L	PF420-3L	$93.00	PF Vise Left Threaded Machined Nut - PF420-3L quantity
5	1	Screw - PF250-5	PF250-5	$110.00	Screw - PF250-5 quantity
6	4	Kurt Pad Guide - PF420-16	PF420-16	$11.00	Kurt Pad Guide - PF420-16 quantity
7	2	PF420-53 REAR COVER	PF420-53	$25.00	PF420-53 REAR COVER quantity
9	4	Kurt Compression Spring - PF420-169	PF420-169	$5.00	Kurt Compression Spring - PF420-169 quantity
11	4	Heavy Duty Square Nut - PF250-195	PF250-195	$20.00	Heavy Duty Square Nut - PF250-195 quantity
12	2	Set Screw w/Nyloc Modified - PF250-196	PF250-196	$14.00	Set Screw w/Nyloc Modified - PF250-196 quantity
13	1	PF Vise Central Holding Block - PF420-212-CP	PF420-212-CP	$96.00	PF Vise Central Holding Block - PF420-212-CP quantity
16	1	PF250-272 THRUST WASHER COLLAR	PF250-272	$35.00	PF250-272 THRUST WASHER COLLAR quantity
18	2	PF250-311 Straight Wire Spring	PF250-311	$6.00	PF250-311 Straight Wire Spring quantity
19	1	PF250-364L LEFT HAND LOCKING PIN	PF250-364L	$58.00	PF250-364L LEFT HAND LOCKING PIN quantity
20	1	PF250-364R RIGHT HAND LOCKING PIN	PF250-364R	$58.00	PF250-364R RIGHT HAND LOCKING PIN quantity
21	4	PF420-366 SPRING, PLUNGER, SHORT	PF420-366	$10.00	PF420-366 SPRING, PLUNGER, SHORT quantity
22	2	Kurt Protective Plug Assembly - 3600V-191-SA	3600V-191-SA	$6.00	Kurt Protective Plug Assembly - 3600V-191-SA quantity
23	4	SHCS 8-32 X 0.562 LG - 00-1194	00-1194	$6.00	SHCS 8-32 X 0.562 LG - 00-1194 quantity
24	2	Half Dog Set Screw - 01-1853	01-1853	$6.00	Half Dog Set Screw - 01-1853 quantity
25	4	Kurt SBHCS 10-32 x 0.375 LG - 03-0021	03-0021	$6.00	Kurt SBHCS 10-32 x 0.375 LG - 03-0021 quantity
26	2	Kurt Dowel Pin 0.1875 x 0.5LG - 04-0028	04-0028	$6.00	Kurt Dowel Pin 0.1875 x 0.5LG - 04-0028 quantity
27	2	Kurt Screw, Drive, #2 X 0.25 - 07-0230	07-0230	$6.00	Kurt Screw, Drive, #2 X 0.25 - 07-0230 quantity
28	1	PF420-10-SA-CP HANDLE ASSEMBLY, PF Series Vise	PF420-10-SA-CP	$50.00	PF420-10-SA-CP HANDLE ASSEMBLY, PF Series Vise quantity
29	2	Pull Stud for Lifting Vise - PF420-367-CP	PF420-367-CP	$36.00	Pull Stud for Lifting Vise - PF420-367-CP quantity

Showing 25 products
