D40 Replacement Parts
Search All Products

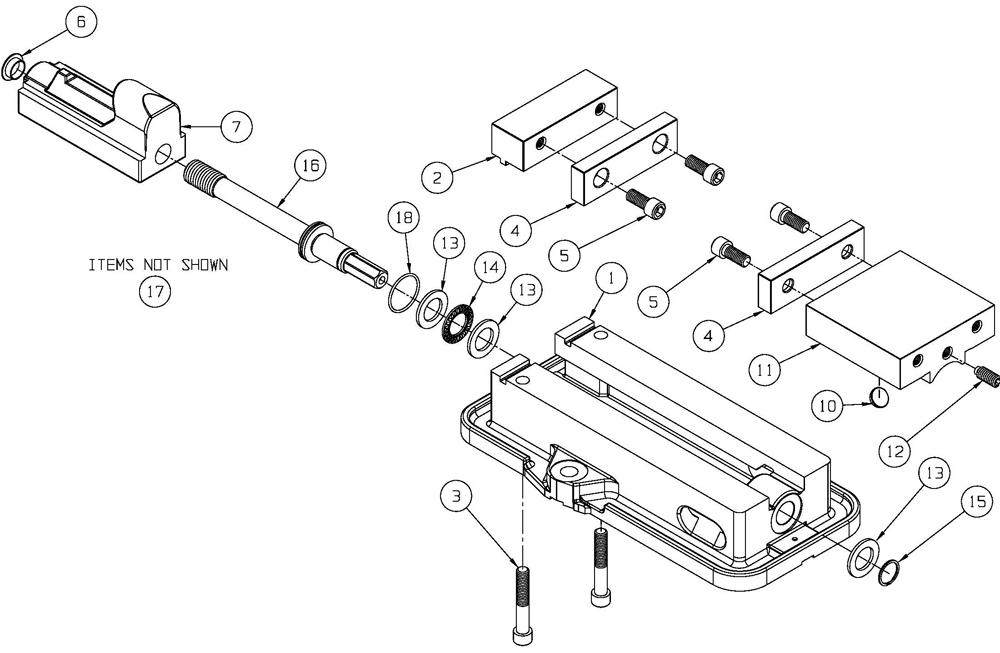

| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 0 | Kurt Handle Assembly - D40I-10-SA | D40I-10-SA | $41.00 | ||
| 0 | Kurt T-bolt, Nut and Washer, 2 each - D40-27-SA | D40-27-SA | $69.00 | ||
| 0 | Kurt D40 Repair Kit - D40-KIT | D40-KIT | $18.00 | ||
| 2 | 1 | Kurt Stationary Jaw - D40-6A | D40-6A | $124.00 | |
| 3 | 2 | Kurt Screw, SHCS, 3/8-16 X 2-1/4 Long - 00-1362 | 00-1362 | $6.00 | |
| 4 | 2 | Kurt Jaw Plate, 4" - D40-7 | D40-7 | $50.00 | |
| 5 | 4 | Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-1353 | 00-1353 | $6.00 | |
| 6 | 1 | Kurt Plastic Cap - D40-12A | D40-12A | $6.00 | |
| 7 | 1 | Kurt Nut w/ D40-12A Cap - D40-3 | D40-3 | $91.00 | |
| 9 | 2 | Kurt Screw, Drive, #2 X 0.25 - 07-0230 | 07-0230 | $6.00 | |
| 10 | 1 | Kurt Spherical Segment - D40-9 | D40-9 | $7.00 | |
| 11 | 1 | Kurt Movable Jaw - D40-2 | D40-2 | $171.00 | |
| 12 | 1 | Kurt Screw, SHSS, 3/8-16 X 7/8 - 01-3908 | 01-3908 | $11.00 | |
| 13 | 3 | Kurt Thrust Bearing Washer - D40-42 | D40-42 | $8.00 | |
| 14 | 1 | Kurt Thrust Bearing - D40-41 | D40-41 | $8.00 | |
| 15 | 1 | Kurt Spiral Retaining Ring - D40-217A | D40-217A | $7.00 | |
| 16 | 1 | Kurt Screw - D40-5A | D40-5A | $78.00 | |
| 18 | 1 | Kurt O-Ring, Buna N, #024 - D40-68 | D40-68 | $6.00 |
