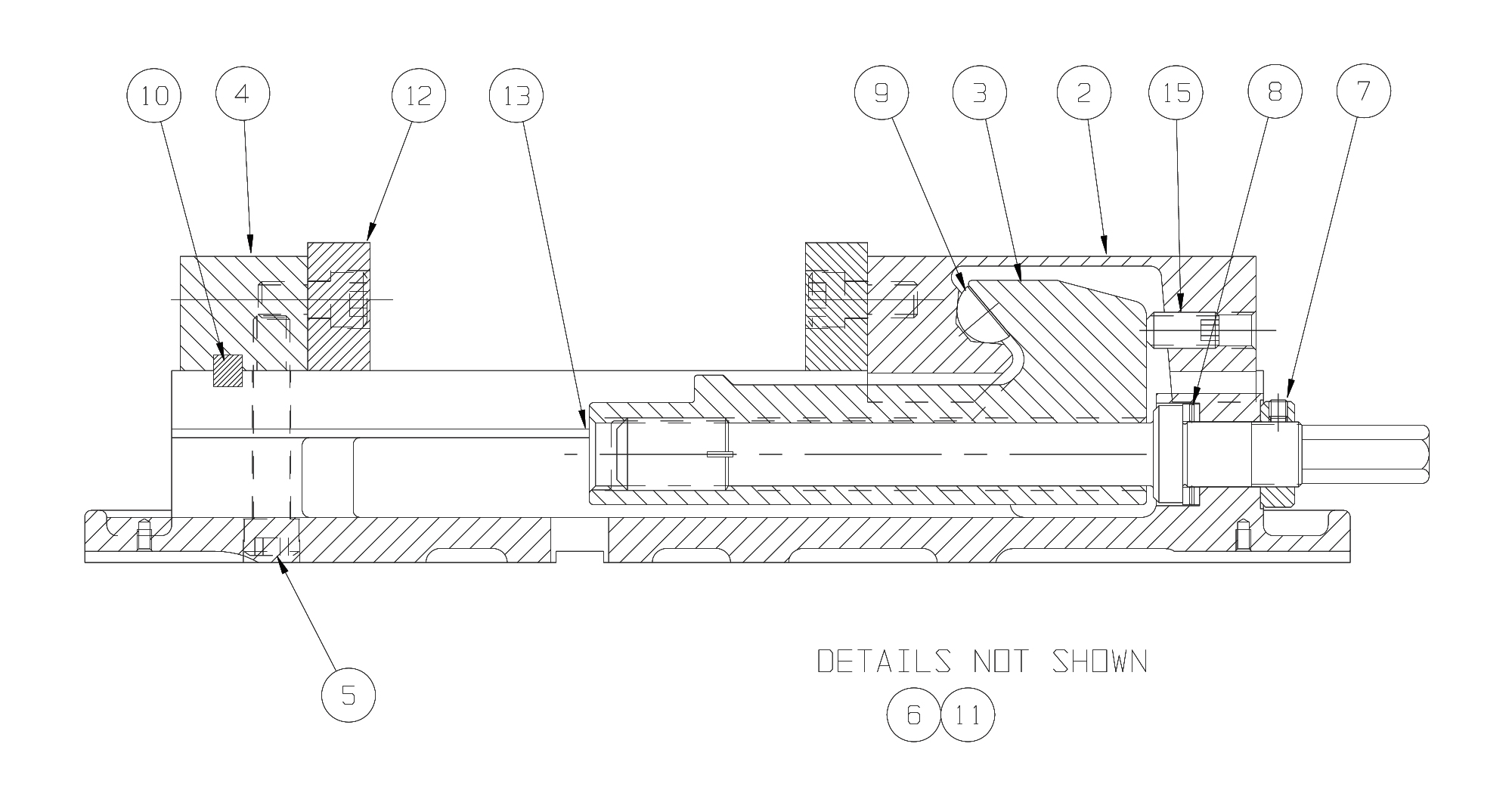

D80 Replacement Parts
The following Callouts have no replacements available and are obsolete: 4,5,7,10
| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| D80-5A SCREW | D80-5A | $168.00 | |||
| 3 | 1 | Nut and screw assembly with bearing, washers & O-ring - D80-3-SA | D80-3-SA | $387.00 | |
| 0 | Kurt Rod Clamp - D80WS-4 | D80WS-4 | $61.00 | ||
| 2 | Kurt T-bolt, Nut and Washer, 2 each - D80-27-SA | D80-27-SA | $73.00 | ||
| 13 | 1 | Kurt Plastic Cap - D80-12A | D80-12A | $7.00 | |
| 1 | Kurt D80 Repair Kit - D80-KIT | D80-KIT | $19.00 | ||
| 9 | 1 | Kurt Spherical Segment - D80-9 | D80-9 | $9.00 | |
| 8 | 1 | Kurt Thrust Bearing Assembly - D80-72 | D80-72 | $11.00 | |
| 12 | 2 | Kurt Jaw Plate, 8" - D80-7 | D80-7 | $124.00 | |
| 8 | 2 | Kurt Thrust Bearing Washer - D80-42 | D80-42 | $8.00 | |
| 8 | 1 | Kurt Thrust Bearing - D80-41 | D80-41 | $7.00 | |
| 2 | 1 | Kurt Movable Jaw - D80-2 | D80-2 | $494.00 | |
| 6 | 1 | Kurt Handle Assembly - D80I-10-SA | D80I-10-SA | $88.00 | |
| 15 | 1 | Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-3953 | 01-3953 | $19.00 |
