DX8 Replacement Parts

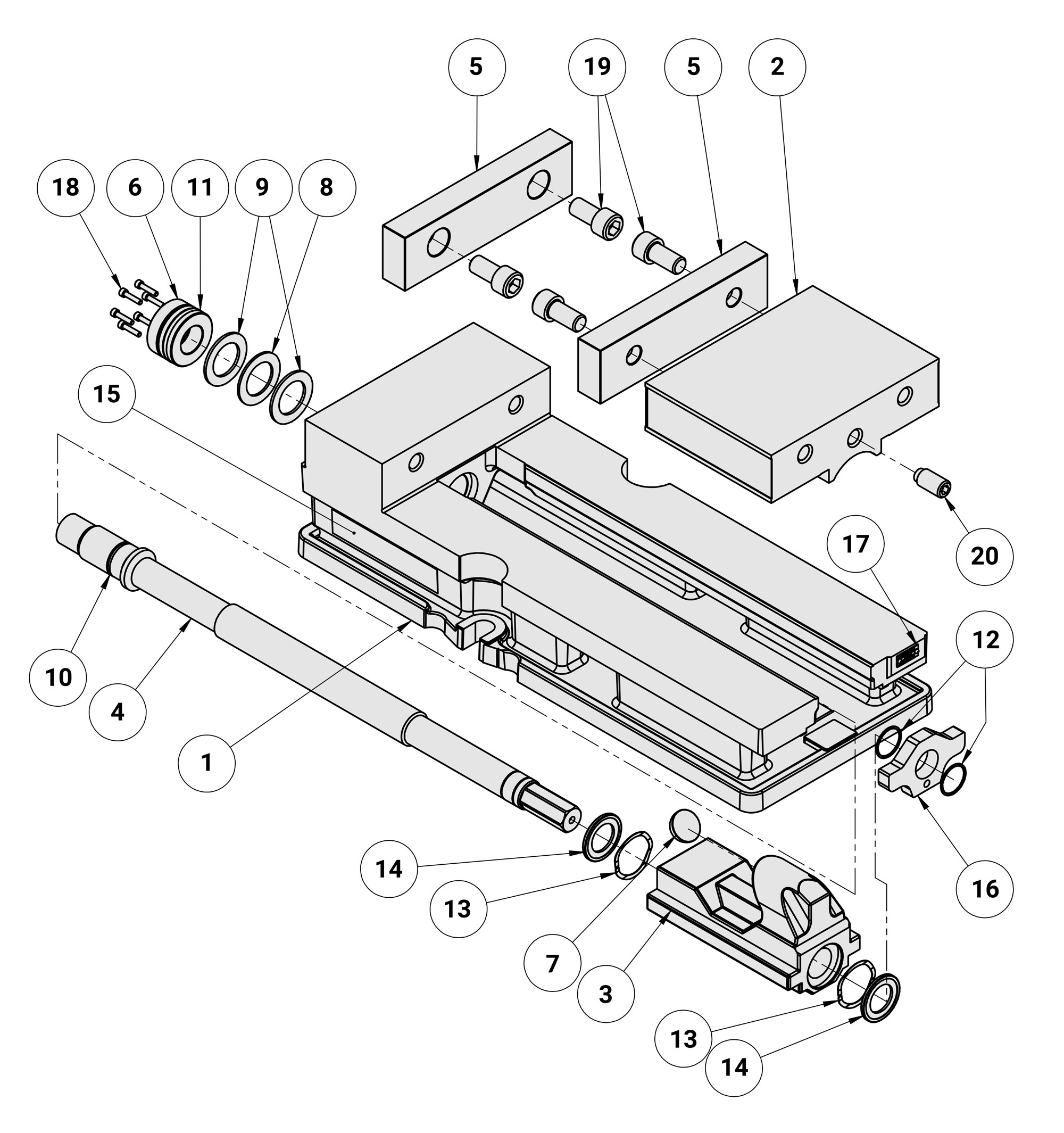

Kurt DX8 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0Kurt DX8 Repair Kit - DX8-KITDX8-KIT$26.00
0DX8H-5 Hydraulic ScrewDX8H-5$389.00
161Kurt Screw Support - DX8-224DX8-224$29.00
132Kurt Wave Spring - DX8-169DX8-169$6.00
92Kurt Thrust Bearing Washer - 3800V-423800V-42$13.00
81Kurt Thrust Bearing - 3800V-413800V-41$11.00
21Kurt Movable Jaw - DX8-2DX8-2$323.00
212Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
31Kurt Nut with Internal Brush Seal - DX8-3DX8-3$100.00
61Kurt Retaining Nut, 2 piece - 3800V-83800V-8$63.00
101Kurt O-Ring, #121 - 3800V-993800V-99$6.00
112Kurt O-Ring, #224 - 3800V-1283800V-128$6.00
122Kurt Spiral Retaining Ring - 3800V-1473800V-147$6.00
41Kurt Screw - DX8-5DX8-5$202.00
142Kurt Internal Brush Seal - PT800-211PT800-211$11.00
221Kurt Chip Guard - D80XL-248D80XL-248$11.00
71Kurt Spherical Segment - D80-9D80-9$9.00
52Kurt Jaw Plate, 8" - D80-7D80-7$124.00
231Kurt Handle Assembly - D80I-10-SAD80I-10-SA$88.00
201Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
194Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
186Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
