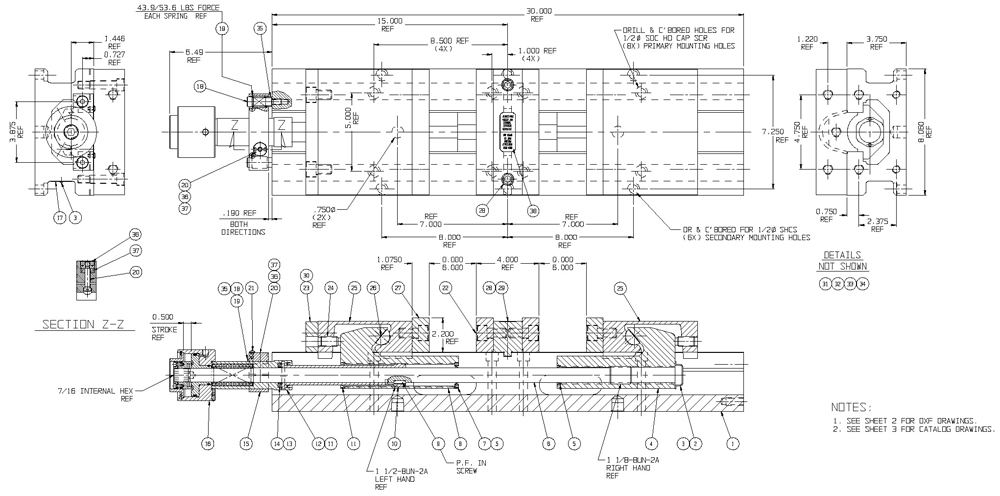

DLH800 Vise Replacement Parts

DLH800 Vise Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
61Kurt Screw - DLH800-5ADLH800-5A$357.00
121Kurt Connector - DLH800-56ADLH800-56A$272.00
151Kurt Hydraulic Holding Block - DLH800-212ADLH800-212A$248.00
101Kurt Threaded Sleeve - DLH800-209DLH800-209$516.00
71Kurt Spacer, Knurled - DLH600-61DLH600-61$44.00
91Kurt Key - DLH600-290-RMDLH600-290-RM$31.00
291Kurt Stationary Jaw - DL800-6DL800-6$404.00
41Kurt Rear Nut - DL800-3RDL800-3R$319.00
81Kurt Front Nut - DL800-3FDL800-3F$319.00
371Kurt Pre-load Spring - DL800-311DL800-311$11.00
361Kurt Spanner Nut - DL800-291DL800-291$38.00
231Kurt Retaining Plate - DL800-227DL800-227$80.00
252Kurt Movable Jaw - DL800-2DL800-2$399.00
182Kurt Altered Shoulder Bolt - DL800-176DL800-176$25.00
21Kurt End Cap - DL600-218DL600-218$10.00
352Kurt Bushing, Spring - DL600-213BDL600-213B$21.00
112Kurt U-Cup Seal, Front Nut - DL600-180DL600-180$7.00
52Kurt U-Cup Seal, Rear Nut - DL600-146DL600-146$6.00
341Kurt Chip Guard, Long - D80XL-249D80XL-249$19.00
332Kurt Chip Guard - D80XL-248D80XL-248$11.00
262Kurt Spherical Segment - D80-9D80-9$9.00
274Kurt Jaw Plate, 8" - D80-7D80-7$124.00
132Kurt Thrust Bearing Washer - D60-42D60-42$7.00
141Kurt Thrust Bearing - D60-41D60-41$7.00
161Kurt Hydraulic Unit Assembly - 6.5THU6.5THU$1,527.00
201Kurt Screw, SHLDR, 5/16 X 1-1/4 - 03-201403-2014$7.00
212Kurt Screw, BHCS, #10-24 X 3/8 - 03-012403-0124$6.00
242Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
228Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
302Kurt Screw, SHCS, 5/8-11 X 1 Long - 00-147900-1479$7.00
282Kurt Screw, SHCS, 1/2-13 X 2-1/4 - 00-142400-1424$7.00
