640XLS Replacement Parts

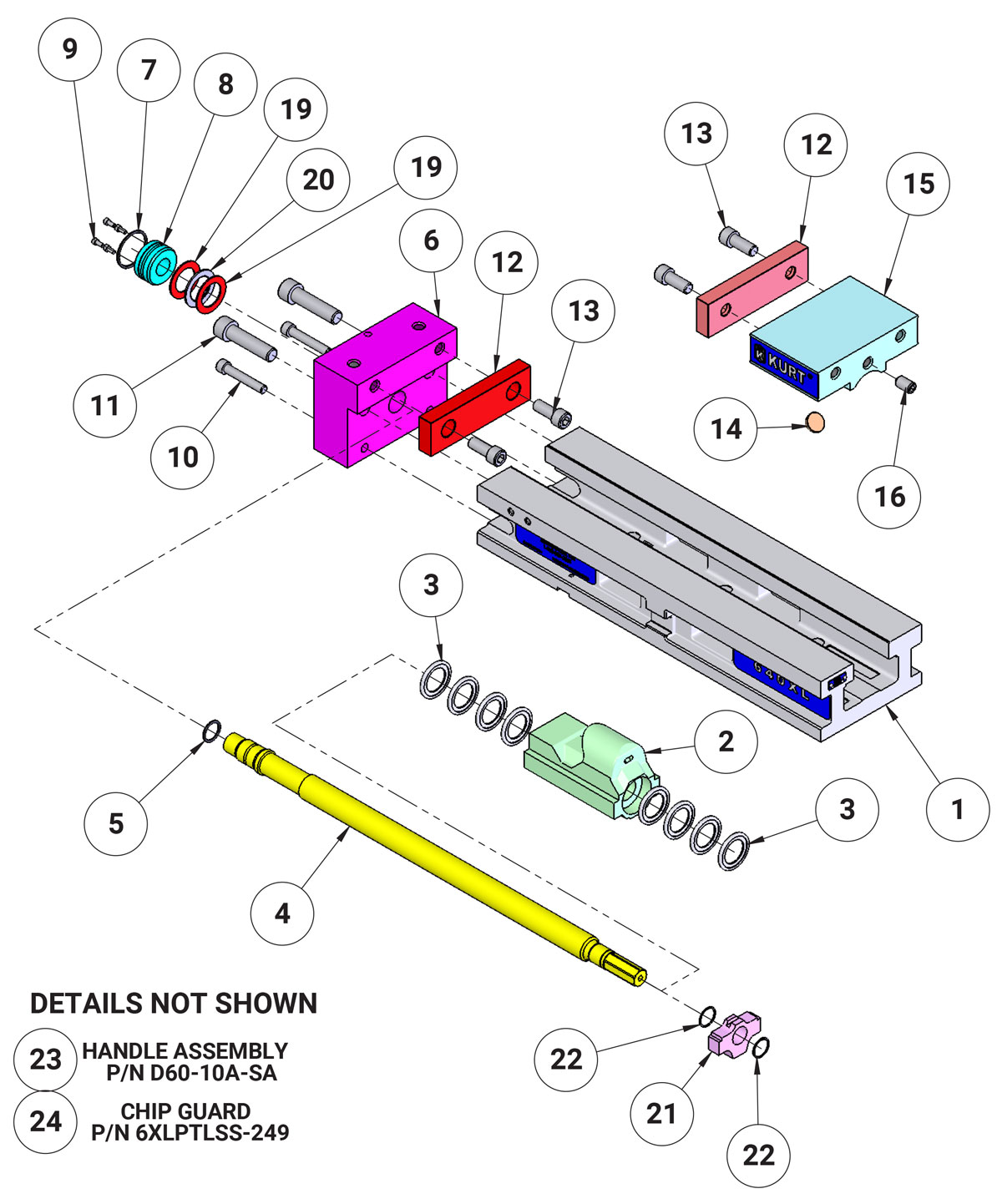

Kurt 640XLS Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
211Kurt Screw Support - 640XLS-224640XLS-224$78.00
112Kurt Screw, SHCS, 5/8-11 X 2-1/2 - 00-148700-1487$7.00
38Kurt Internal Brush Seal - PT600-211PT600-211$11.00
41Kurt Screw, 6XLPT Vise, STD - 6XLPTLSS-56XLPTLSS-5$418.00
241Kurt Chip Guard - 6XLPTLSS-2496XLPTLSS-249$16.00
61Kurt Holding Block, Reverse 6XLPT Vise - 6XLPTLSAR-2126XLPTLSAR-212$683.00
151Kurt Movable Jaw - DL640-2DL640-2$228.00
201Kurt Thrust Bearing - D80-41D80-41$7.00
141Kurt Spherical Segment - D60-9D60-9$9.00
122Kurt Jaw Plate, 6" - D60-7D60-7$48.00
231Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
51Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
192Kurt Thrust Washer - 3600V-423600V-42$7.00
222Kurt Spiral Retaining Ring - 3600V-1473600V-147$6.00
71Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
161Kurt Screw, SHSS, 1/2-13 X 1 LG - 01-333401-3334$22.00
134Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
102Kurt Screw, SHCS, 3/8-16 X 2-1/4 Long - 00-136200-1362$6.00
94Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
