8XLPTLSR Replacement Parts

8XLPTLSR Replacement Parts

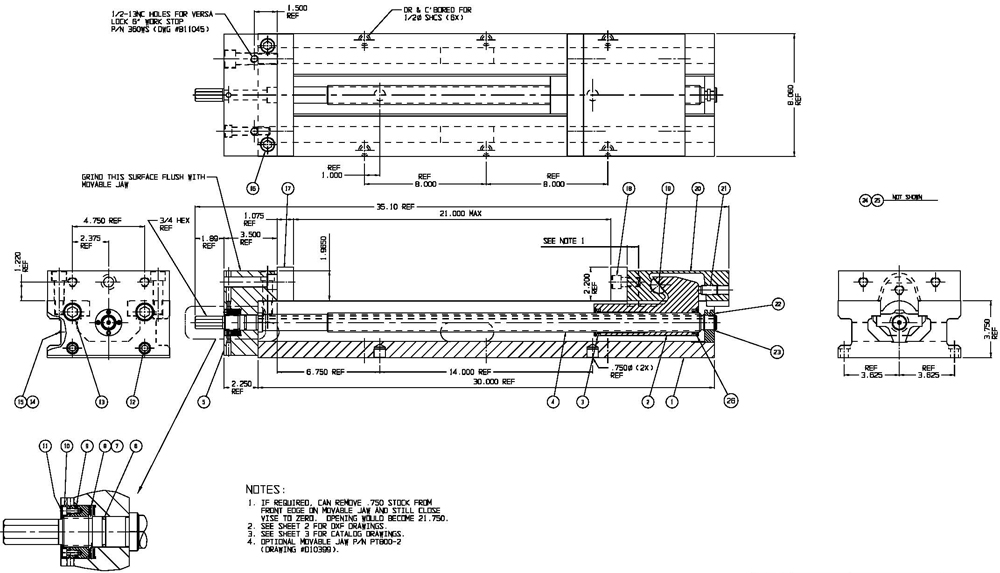

CalloutQty NeededNamePart No.PriceBuy
0Kurt XL8R Reverse Vise Screw - XL8R-5XL8R-5$738.00
0Kurt Nut, Machined - 3810V-33810V-3$115.00
132Kurt Screw, SHCS, 3/4-10 X 2-3/4 - 00-151900-1519$8.00
122Kurt Screw, SHCS, 1/2-13 X 2-1/2 - 00-142500-1425$7.00
221Kurt Screw Support - 8XLPTLSS-224A8XLPTLSS-224A$106.00
251Kurt Chip Guard - XL8-249XL8-249$35.00
262Kurt Truarc Retaining Ring - 8XLPTLSS-2178XLPTLSS-217$7.00
51Kurt Holding Block - 8XLPTLSS-2128XLPTLSS-212$1,083.00
232Kurt Retaining Ring - 8XLPTLSS-1478XLPTLSS-147$8.00
41Kurt Screw, 8XLPTL Reverse Vise - 8XLPTLSR-58XLPTLSR-5$897.00
34Kurt Internal Brush Seal - PT800-211PT800-211$11.00
201Kurt Movable Jaw - D810-2D810-2$346.00
191Kurt Spherical Segment - D80-9D80-9$9.00
172Kurt Jaw Plate, 8" - D80-7D80-7$124.00
81Kurt Thrust Bearing - D80-41D80-41$7.00
241Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
61Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
72Kurt Thrust Washer - 3600V-423600V-42$7.00
91Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
211Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
162Kurt Screw, SHCS, 5/8-11 X 2-1/4 - 00-148600-1486$7.00
184Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
114Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
