XL8 Replacement Parts

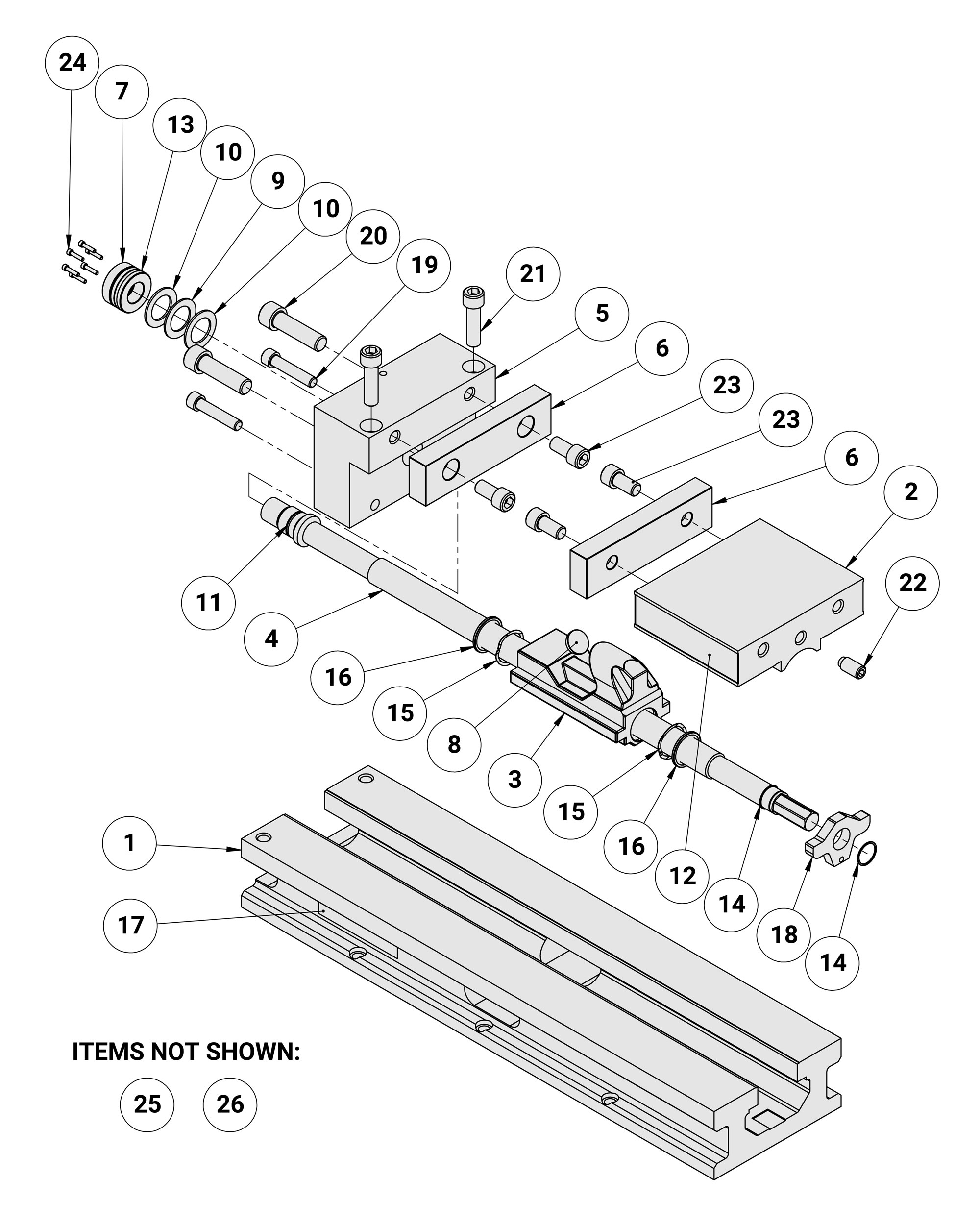

Kurt XL8 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
41Kurt XL8R Reverse Vise Screw - XL8R-5XL8R-5$738.00
152Kurt Wave Spring - DX8-169DX8-169$6.00
181Kurt Screw Support - XL8-224XL8-224$51.00
102Kurt Thrust Bearing Washer - 3800V-423800V-42$13.00
91Kurt Thrust Bearing - 3800V-413800V-41$11.00
21Kurt Movable Jaw - DX8-2DX8-2$323.00
31Kurt Nut with Internal Brush Seal - DX8-3DX8-3$100.00
71Kurt Retaining Nut, 2 piece - 3800V-83800V-8$63.00
111Kurt O-Ring, #121 - 3800V-993800V-99$6.00
131Kurt O-Ring, #224 - 3800V-1283800V-128$6.00
142Kurt Spiral Retaining Ring - 3800V-1473800V-147$6.00
202Kurt Screw, SHCS, 3/4-10 X 2-3/4 - 00-151900-1519$8.00
192Kurt Screw, SHCS, 1/2-13 X 2-1/2 - 00-142500-1425$7.00
162Kurt Internal Brush Seal - PT800-211PT800-211$11.00
81Kurt Spherical Segment - D80-9D80-9$9.00
62Kurt Jaw Plate, 8" - D80-7D80-7$124.00
251Kurt Handle Assembly - D80I-10-SAD80I-10-SA$88.00
221Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
212Kurt Screw, SHCS, 5/8-11 X 2-1/4 - 00-148600-1486$7.00
234Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
246Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
