HD690 Replacement Parts

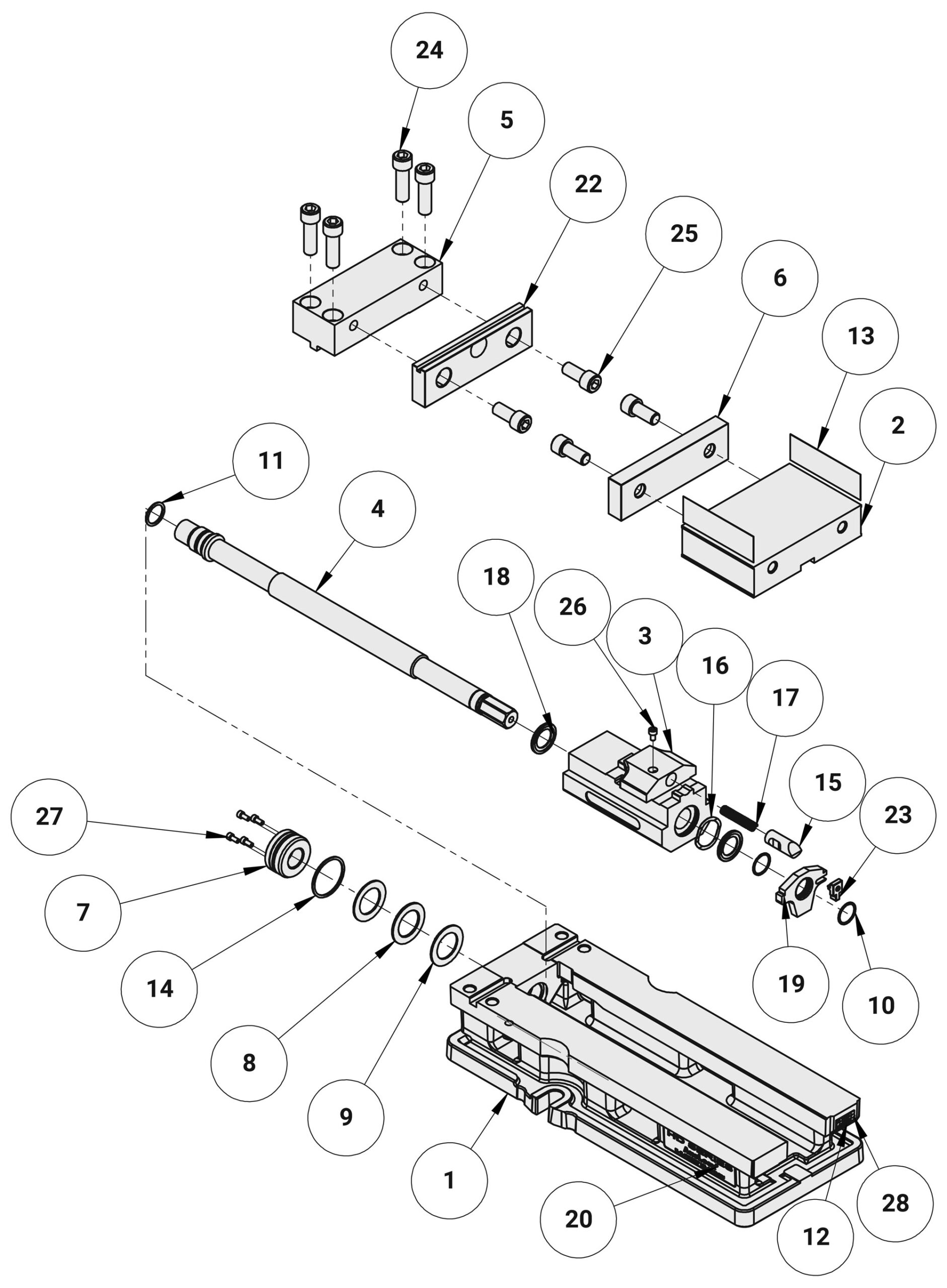

Kurt HD690 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
31TL6 Vise Front Nut - TL6-3FTL6-3F$192.00
2441/2-13 x 1-5/8 Socket Head Cap Screw - 00-143900-1439$7.00
282Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
162Kurt Wave Spring - DX6-169DX6-169$6.00
41Kurt Screw - DX6-5DX6-5$74.00
0Kurt Hard Movable Jaw, J Style (English) - HDL6J-2HDL6J-2$206.00
0Kurt Chip Guard Long - HDM690-249HDM690-249$13.00
261Kurt SHCS #10-32UNC x 1/4 LG - 00-025100-0251$6.00
51Kurt Stationary Jaw - HD690-6HD690-6$279.00
0Kurt HD690 Repair Kit - HD690-KITHD690-KIT$31.00
171Kurt Spring, Red, Manual Vise Only - HD6-197HD6-197$6.00
21Kurt Hard Movable Jaw, J Style - HDLM6J-2HDLM6J-2$202.00
231Kurt Workstop Assembly - WSRL46WSRL46$23.00
0Kurt Replacement O-Rings - MT6-96MT6-96$6.00
151Kurt Spring Guide, Metric - HDM6-142HDM6-142$12.00
191Kurt Screw Support - HDM690-224-CPHDM690-224-CP$35.00
81Kurt Thrust Bearing - D80-41D80-41$7.00
182Kurt Internal Brush Seal - D688-211D688-211$10.00
61Kurt Jaw Plate, 6" - D60-7D60-7$48.00
221Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$52.00
0Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
111Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
71Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$21.00
92Kurt Thrust Washer - 3600V-423600V-42$7.00
102Kurt Spiral Retaining Ring - 3600V-1473600V-147$6.00
141Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
254Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$6.00
274Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
