HDLM6/HDL6 Replacement Parts

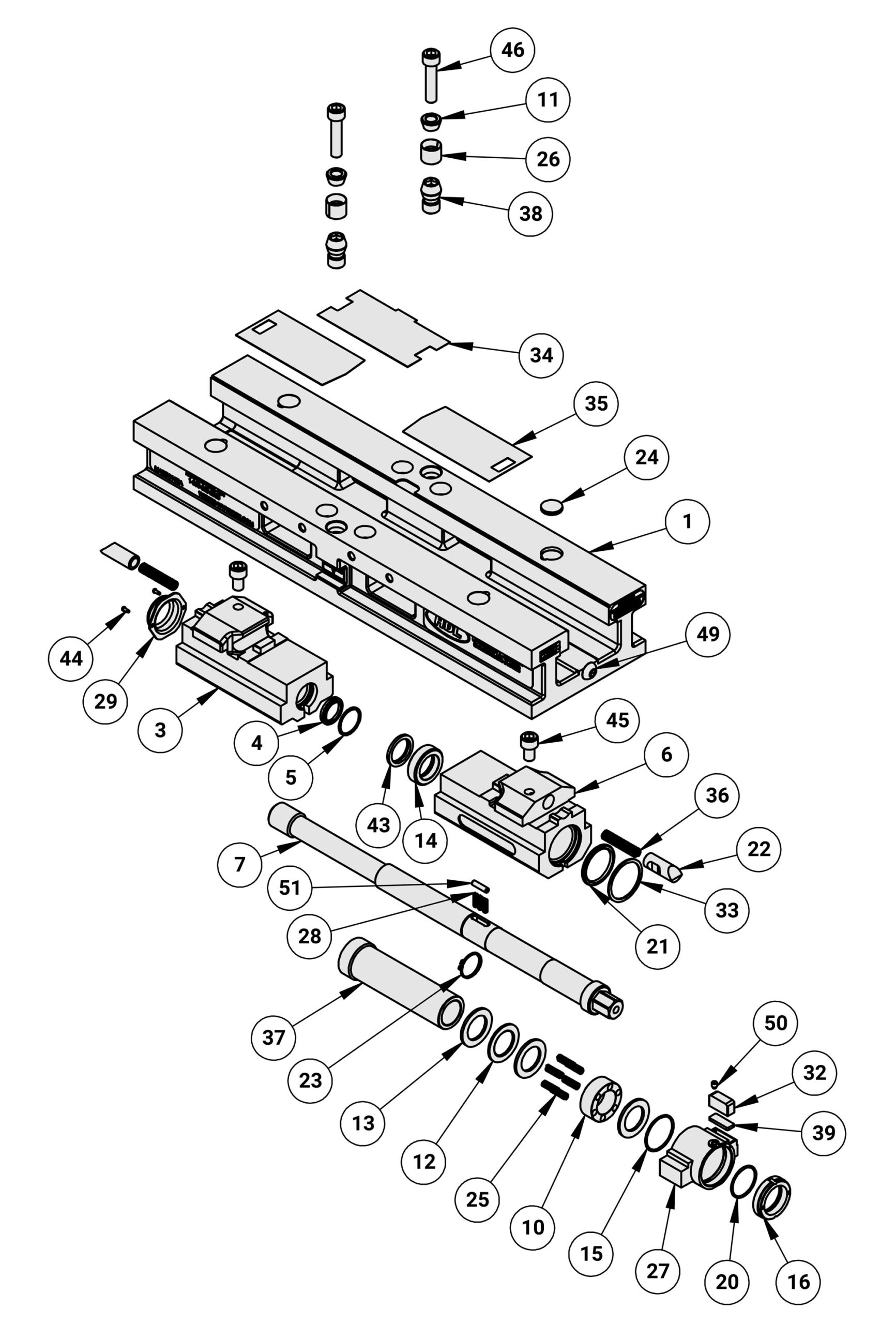

Kurt HDL6/HDLM6 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
442Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
462Kurt Screw, SHCS, 3/8-16 x 1-3/4 for use with the HDL6 English v - 00-136000-1360$6.00
382Kurt Stationary Jaw Locating Pin for use with the HDL6 English v - HD6-277AHD6-277A$37.00
31Kurt Nut, Machined, Rear - HDLM6-3R-SAHDLM6-3R-SA$191.00
0Kurt Spring, Super Heavy Duty, Manual Vise Only - HD6-87HD6-87$9.00
61Kurt Nut, Machined, Front - HDLM6-3F-SAHDLM6-3F-SA$222.00
362Kurt Spring, Red, Manual Vise Only - HD6-197HD6-197$6.00
1Kurt Handle Assembly, Long Socket - D60XI-10-SAD60XI-10-SA$45.00
0Kurt Manual Vise Replacement Kit, Serial #1000- HDLM6-KIT1HDLM6-KIT1$21.00
382Kurt Stationary Jaw Locating Pin for use with the HDLM6 Metric v - HDM6-277AHDM6-277A$40.00
222Kurt Spring Guide, Metric - HDM6-142HDM6-142$12.00
0Kurt HDL Nut & Screw Assembly - HDLM6-3-SAHDLM6-3-SA$800.00
352Kurt Chip Guard, Movable - HDLM6-249HDLM6-249$8.00
341Kurt Chip Guard, Stationary - HDLM6-248HDLM6-248$9.00
112Kurt Stationary Jaw Clamp - HD6-35HD6-35$23.00
262Kurt Clamp Sleeve - HD6-209HD6-209$29.00
271Kurt Holding Block, Metric - DLM640-212DLM640-212$88.00
41Kurt Wiper Ring - DL640-97DL640-97$7.00
161Kurt Collar, Threaded - DL640-91-PDL640-91-P$36.00
101Kurt Collar - DL640-8ADL640-8A$20.00
151Kurt O-Ring, 1-3/8 X 1-1/2 - DL640-68DL640-68$6.00
141Kurt Spacer, Threaded - DL640-61ADL640-61A$19.00
71Kurt Screw - DL640-5BDL640-5B$102.00
391Kurt Pre-load Spring - DL640-311ADL640-311A$9.00
371Kurt Clutch - DL640-273B-CPDL640-273B-CP$63.00
331Kurt Retaining Ring - DL640-231DL640-231$6.00
321Kurt Friction Clamp - DL640-225A-PDL640-225A-P$17.00
51Kurt Retaining Ring - DL640-217DL640-217$6.00
283Kurt Clutch Spring, Stainless - DL640-215DL640-215$6.00
258Kurt Compression Spring - DL640-197DL640-197$7.00
231Kurt Snap Ring, Trarc, Ext. - DL640-147BDL640-147B$6.00
211Kurt O-Ring, Metric - DL640-129DL640-129$6.00
201Kurt O-Ring, 1-3/16 ID, 1-5/16 - DL640-128DL640-128$6.00
291Kurt End Cap - DL600-218DL600-218$10.00
431Kurt Wiper Ring - DL430-331DL430-331$7.00
133Kurt Thrust Bearing Washer - D60-42D60-42$7.00
121Kurt Thrust Bearing - D60-41D60-41$7.00
244Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
491Kurt Screw, BHCS, M10 X 1.5 X 12 for use with the HDLM6 Metric v - 29-021829-0218$7.00
501Kurt Socket, Set Screw, M5 X .8 - 28-112228-1122$6.00
462Kurt Screw, SHCS, M10 X 1.5 X 45mm LG for use with the HDLM6 Met - 26-023226-0232$6.00
452Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-008226-0082$6.00
511Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$6.00
491Kurt Screw, BHCS, 3/8-16 X 1/2 - 03-014803-0148$6.00
