KHU4 Replacement Parts

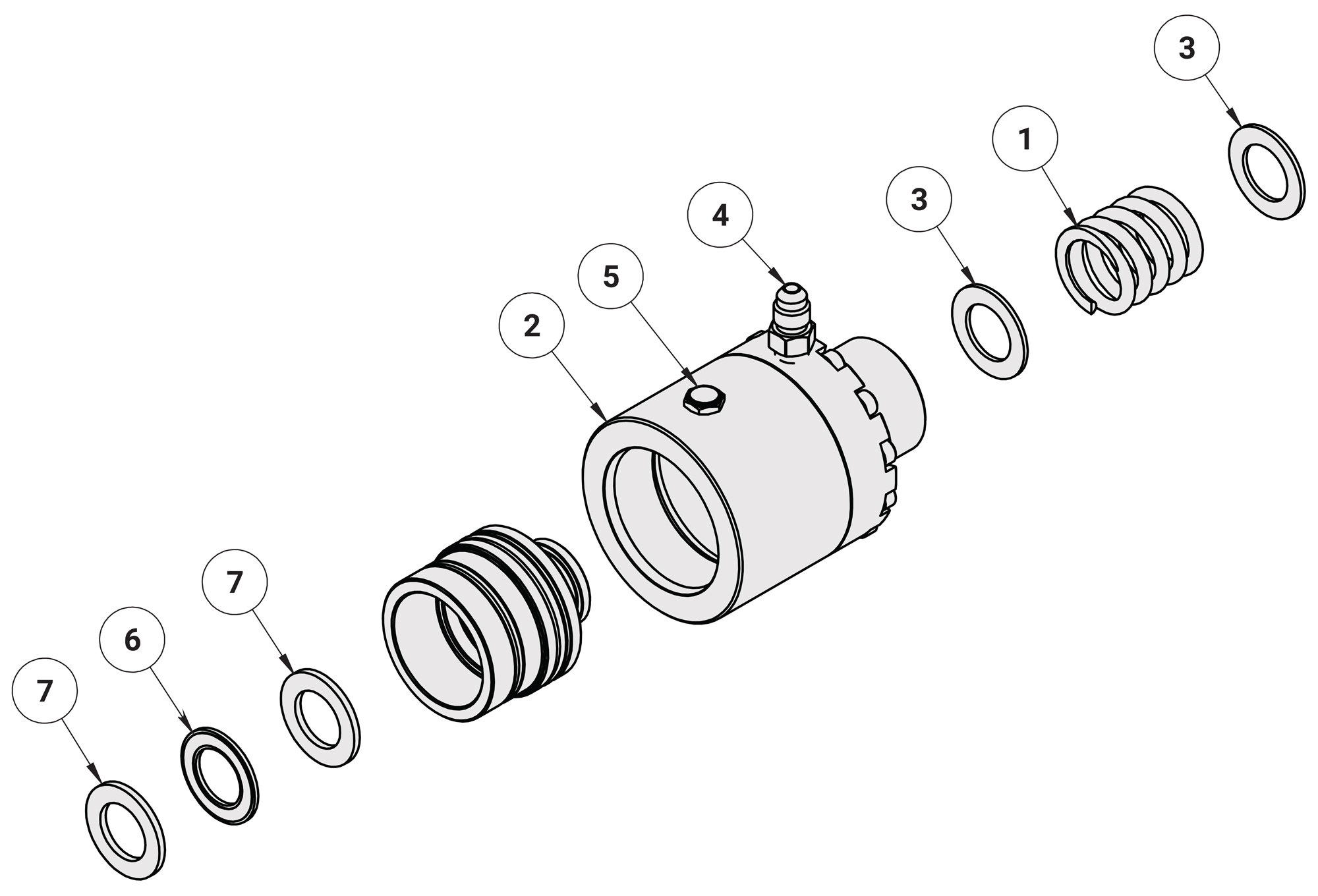

| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 4 | 1 | FITTING, 1/8 MNPT-4MJIC - 2404-04-02 | 2404-04-02 | $6.00 | |
| 2 | 1 | Kurt 4" Hydraulic Unit - KHU4-P | KHU4-P | $1,245.00 | |
| 5 | 1 | Kurt 1/8 inch Breather Fitting - PCFBR-02 | PCFBR-02 | $6.00 | |
| 1 | 1 | Kurt Compression Spring - 4BHU-87 | 4BHU-87 | $28.00 | |
| 7 | 2 | Kurt Thrust Bearing Washer - D40-42 | D40-42 | $8.00 | |
| 6 | 1 | Kurt Thrust Bearing - D40-41 | D40-41 | $8.00 | |
| 3 | 2 | Kurt Washer - 4THU-230 | 4THU-230 | $18.00 |
