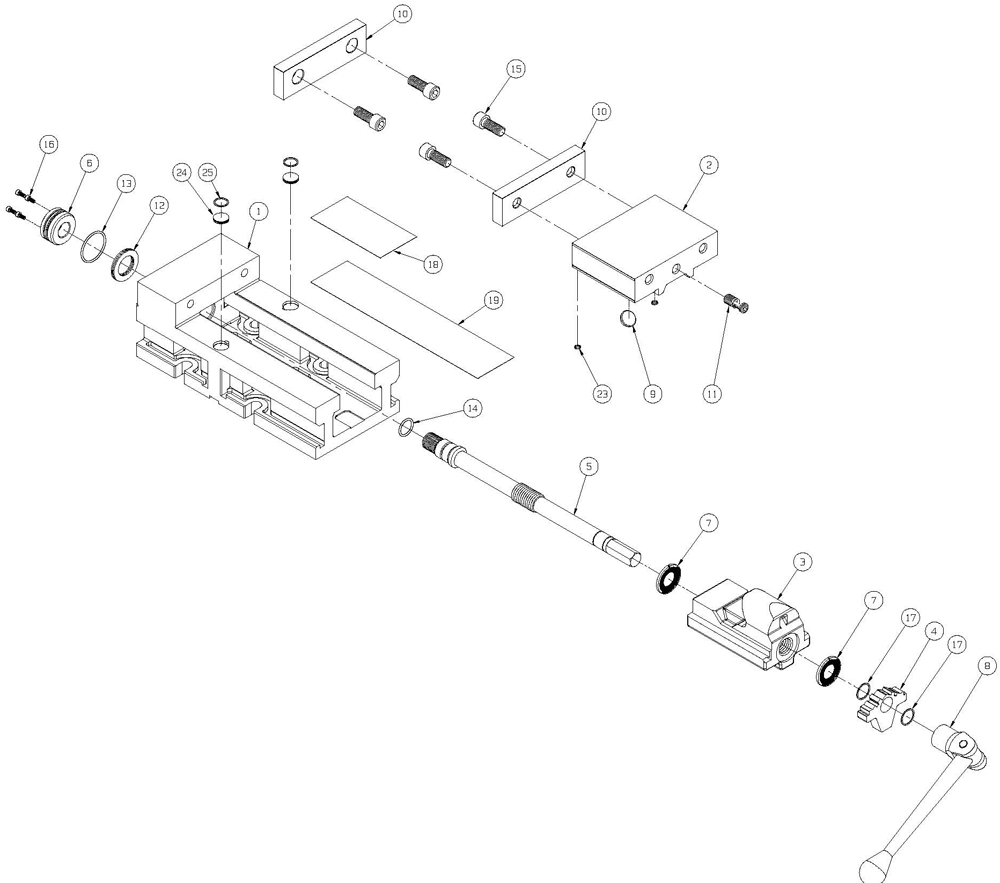

3620V Replacement Parts

3620V Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
212Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
121Kurt Thrust Bearing - D80-41D80-41$7.00
91Kurt Spherical Segment - D60-9D60-9$9.00
102Kurt Jaw Plate, 6" - D60-7D60-7$48.00
81Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
51Kurt Screw - 3620V-53620V-5$88.00
141Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
61Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$21.00
122Kurt Thrust Washer - 3600V-423600V-42$7.00
31Kurt Nut w/ Internal Brush Seal - 3600V-33600V-3$121.00
191Kurt Chip Guard, Long - 3600V-2493600V-249$9.00
181Kurt Chip Guard, Short - 3600V-2483600V-248$7.00
41Kurt Screw Support - 3600V-224B3600V-224B$29.00
72Kurt Internal Brush Seal - 3600V-2113600V-211$10.00
21Kurt Movable Jaw - 3600V-23600V-2$256.00
242Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
172Kurt Spiral Retaining Ring - 3600V-1473600V-147$6.00
131Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
232Kurt O-Ring, Buna N, 008 - 225-01225-01$6.00
111Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$8.00
154Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
164Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
