ML35 Replacement Parts

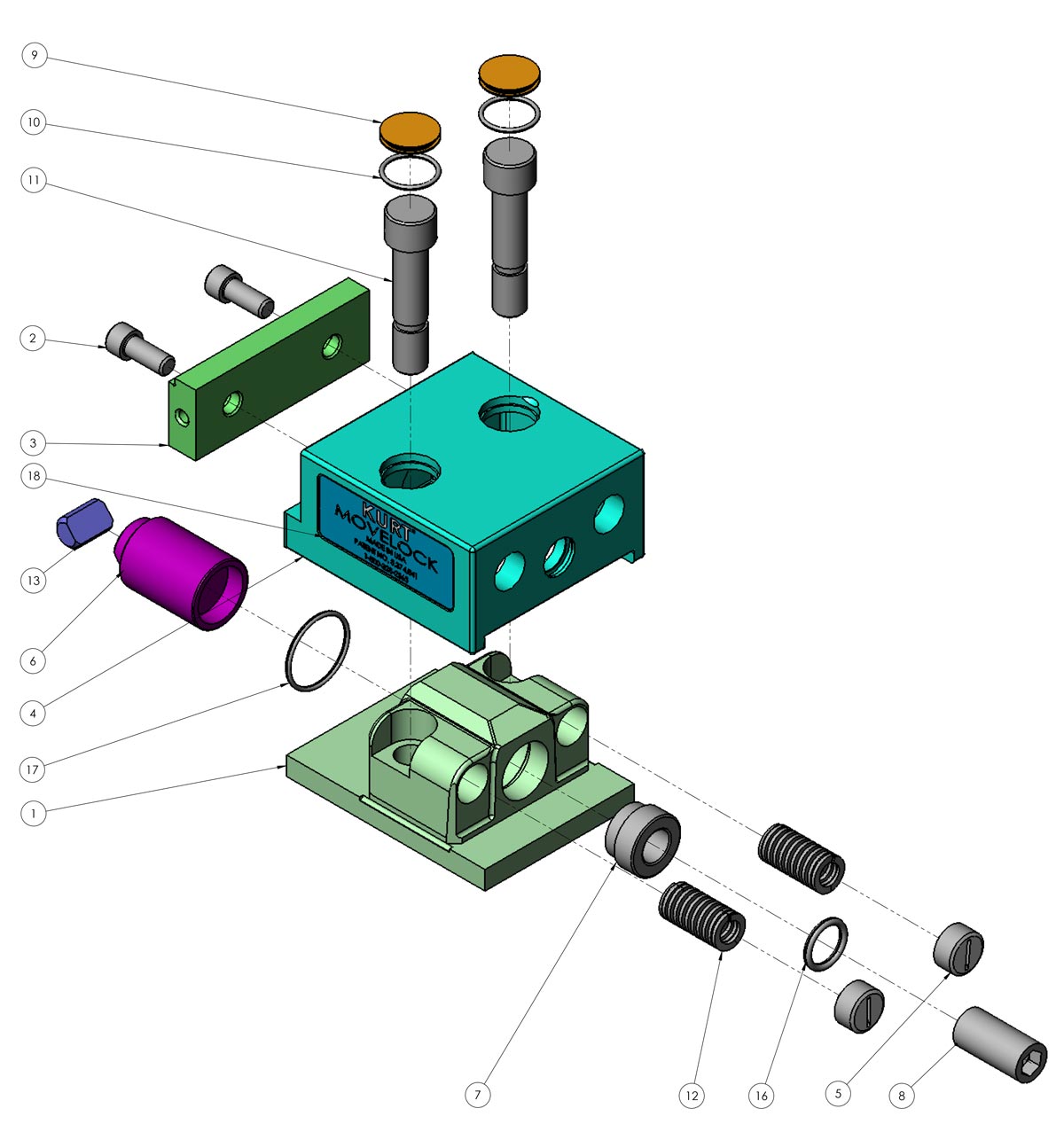

Kurt ML35 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0Kurt Hole Plug - ML35-191AML35-191A$11.00
41Kurt Movable, Jaw, Machined - ML35-2C.1ML35-2C.1$242.00
0Kurt Screw, SHCS,5/16-18 X 5/8 - 00-131900-1319$6.00
112Kurt Bolt, Locating - ML35-176ML35-176$50.00
122Kurt Die Spring - MLH35-197MLH35-197$18.00
61Kurt Piston, Manual - ML35-93ML35-93$60.00
11Kurt Cylinder Housing Manual - ML35-90B-SAML35-90B-SA$411.00
131Kurt Segment - ML35-9AML35-9A$17.00
31Kurt Jaw Plate, Stepped - ML35-32-CPML35-32-CP$118.00
71Kurt Threaded Bushing - ML35-297AML35-297A$21.00
81Kurt Set Screw, Altered - ML35-202ML35-202$25.00
52Kurt Screw, Spiral Retaining - ML35-196ML35-196$21.00
0Kurt O-Ring, Buna N, #024 - D40-68D40-68$6.00
0Kurt Handle Assembly for CL2 and ML35 - CL2-10-SA-CPCL2-10-SA-CP$40.00
161Kurt O-Ring, Buna N. #114 - MLH35-173AMLH35-173A$6.00
102Kurt O-Ring, Buna N, #018 - ML35-128ML35-128$6.00
22Kurt Screw, SHCS, 5/16-18 X 3/4 Long - 00-132100-1321$6.00
