MLH35 Replacement Parts

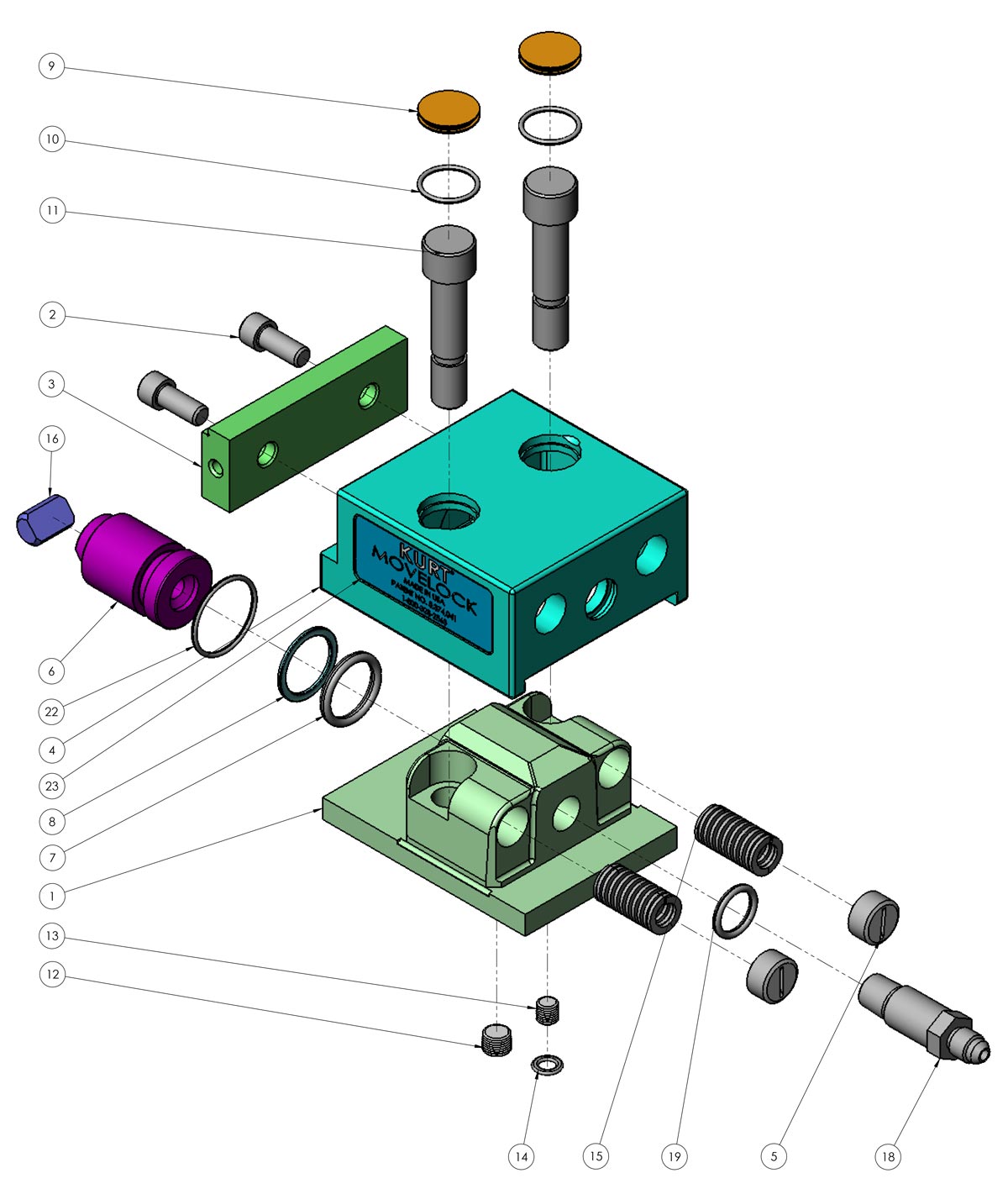

Kurt MLH35 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
131Kurt Pipe Plug, 1/16-27 NPT - SCDH600-292SCDH600-292$6.00
92Kurt Hole Plug - ML35-191AML35-191A$11.00
41Kurt Movable, Jaw, Machined - ML35-2C.1ML35-2C.1$242.00
0Kurt Screw, SHCS,5/16-18 X 5/8 - 00-131900-1319$6.00
112Kurt Bolt, Locating - ML35-176ML35-176$50.00
71Kurt O-Ring, Polyeurathane, #212 - MLH35-96MLH35-96$12.00
61Kurt Hydraulic Piston - MLH35-93MLH35-93$66.00
11Kurt Cylinder Housing Hydraulic - MLH35-90BMLH35-90B$298.00
141Kurt O-Ring, Buna N, #011 - MLH35-68MLH35-68$6.00
181Kurt Special Adapter - MLH35-309MLH35-309$33.00
152Kurt Die Spring - MLH35-197MLH35-197$18.00
81Kurt Back-up Ring - MLH35-188MLH35-188$6.00
201Kurt Cap, Flare Tube End - MLH35-12MLH35-12$9.00
161Kurt Segment - ML35-9AML35-9A$17.00
31Kurt Jaw Plate, Stepped - ML35-32-CPML35-32-CP$118.00
52Kurt Screw, Spiral Retaining - ML35-196ML35-196$21.00
0Kurt O-Ring, Buna N, #024 - D40-68D40-68$6.00
211Kurt Plastic Cap - D40-12AD40-12A$6.00
191Kurt O-Ring, Buna N. #114 - MLH35-173AMLH35-173A$6.00
102Kurt O-Ring, Buna N, #018 - ML35-128ML35-128$6.00
121Kurt Pipe Plug, 1/8-27 NPT - 227-01227-01$8.00
22Kurt Screw, SHCS, 5/16-18 X 3/4 Long - 00-132100-1321$6.00
