PTH800A Replacement Parts

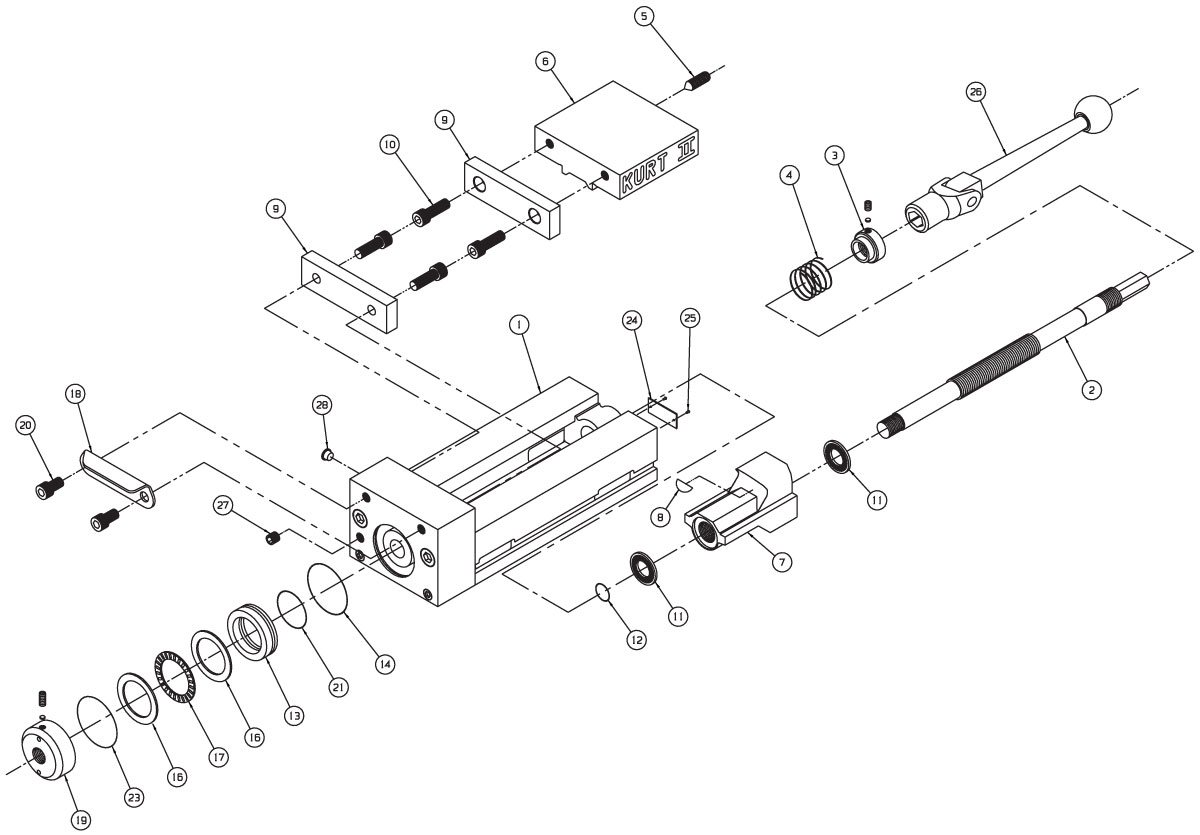

PTH800A Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
252Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
0Kurt Rod Seal, STD O'ring - PTH800-96PTH800-96$18.00
0Kurt PTH800A Repair Kit - PTH800A-KITPTH800A-KIT$85.00
0Kurt PTH800A Piston Seal Repair Kit - PTH800A-PS-KITPTH800A-PS-KIT$161.00
0Kurt O-Ring, Urethane, #329 - PTH800-98PTH800-98$16.00
211Kurt Rod Seal, STD polypak - PTH800-96APTH800-96A$12.00
131Kurt Piston - PTH800-93APTH800-93A$159.00
141Kurt Piston Seal, STD Polypak - PTH800-198APTH800-198A$17.00
0Kurt Back-up Ring - PTH800-188PTH800-188$6.00
31Kurt Front Colllar - PTH800-8-SAPTH800-8-SA$88.00
41Kurt Compression Spring - PTH800-87PTH800-87$94.00
21Kurt Screw - PTH800-5PTH800-5$284.00
162Kurt Thrust Washer - PTH800-42PTH800-42$20.00
271Kurt Pipe Plug, 1/4-18 NPT - PTH400-182PTH400-182$9.00
121Kurt O-Ring, 1.083 x .118 buna-N 70 duro - PT800-99APT800-99A$6.00
231Kurt O-Ring, #235 - PT800-97PT800-97$6.00
171Kurt Thrust Bearing - PT800-41PT800-41$20.00
71Kurt Nut with Internal Brush Seal - PT800-3APT800-3A
112Kurt Internal Brush Seal - PT800-211PT800-211$11.00
61Kurt Movable Jaw - PT800-2PT800-2$607.00
81Kurt Spherical Segment - D80-9D80-9$9.00
92Kurt Jaw Plate, 8" - D80-7D80-7$124.00
0Kurt Thrust Bearing Washer - D80-42D80-42$8.00
261Kurt Handle Assembly - D80I-10-SAD80I-10-SA$88.00
51Obsolete Kurt Screw, SHSS, 5/8-11 X 1-1/4 - 01-335301-3353$0.00
104Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
0Kurt Screw, SHCS, 5/8-11 X 5/8 - 00-147400-1474$8.00
281Kurt Plug, Plastic 1/4-18 NPT - 181181$4.00
