SCD640 Replacement Parts

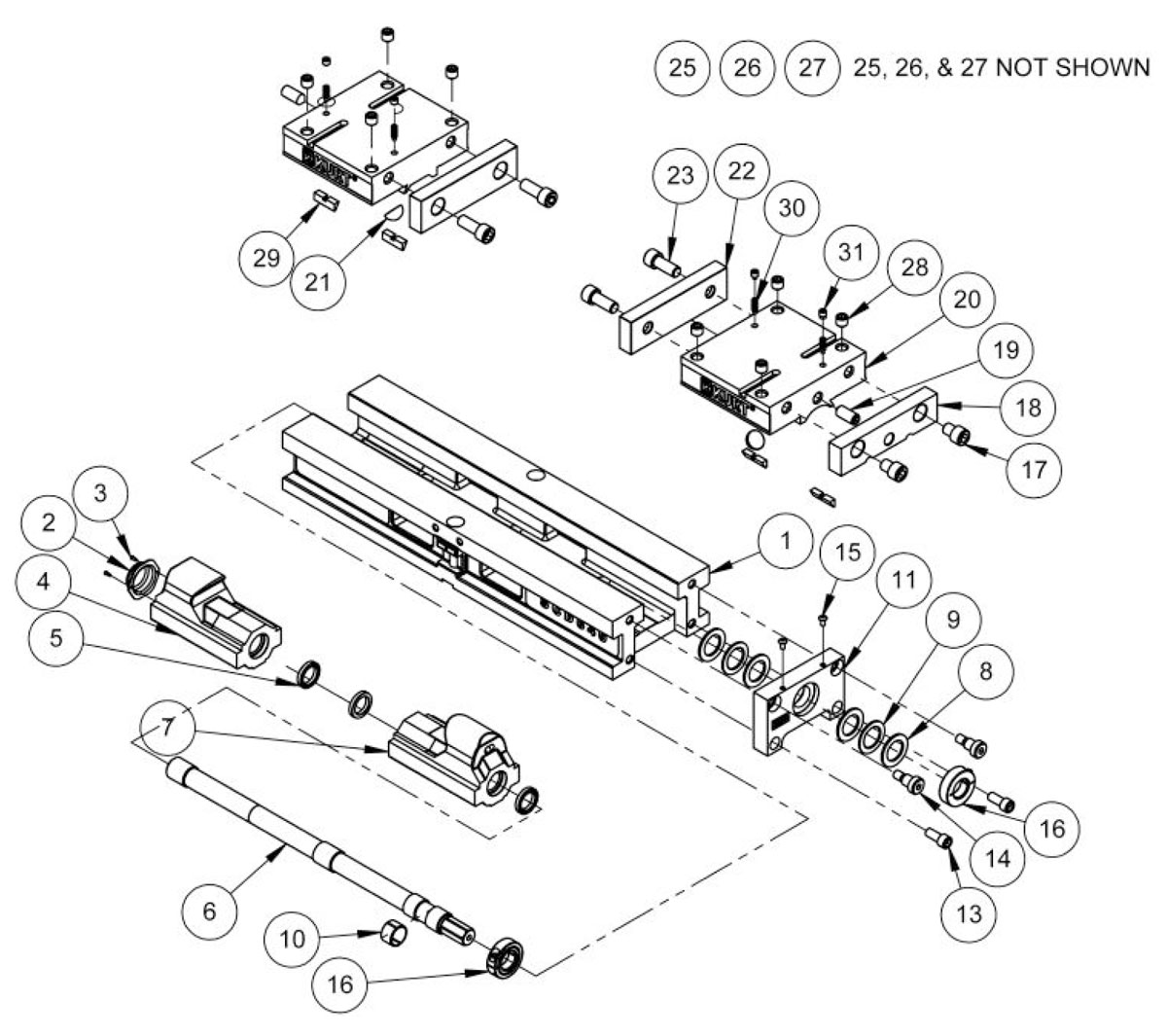

SCD640 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
41Kurt Rear Nut w/ End Cap - SCD640-3RSCD640-3R$208.00
71Kurt Front Nut - SCD640-3FSCD640-3F$202.00
162Kurt Collar - SCD600-8SCD600-8$45.00
101Kurt Split Bushing - SCD600-60SCD600-60$18.00
61Kurt Screw - SCD600-5-CPSCD600-5-CP$208.00
202Kurt Movable Jaw, Special - SCD600-2SSCD600-2S$574.00
181Kurt Retaining Plate - SCD600-227SCD600-227$49.00
111Kurt Holding Block - SCD600-212SCD600-212$247.00
304Kurt Screw, Set, Altered - SCD600-196SCD600-196$16.00
53Kurt U-Cup Seal - SCD600-146SCD600-146$13.00
294Kurt Movable Jaw, GIB - SCD640-13SCD640-13$32.00
261Kurt Chip Guard, Short - DL600-248DL600-248$10.00
21Kurt End Cap - DL600-218DL600-218$10.00
212Kurt Spherical Segment - D60-9D60-9$9.00
222Kurt Jaw Plate, 6" - D60-7D60-7$48.00
84Kurt Thrust Bearing Washer - D60-42D60-42$7.00
92Kurt Thrust Bearing - D60-41D60-41$7.00
251Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
142Kurt Screw, SHLDR, 1/2 X 1/2 - 03-203603-2036$11.00
152Kurt Screw, BHCS, #10-24 X 3/8 - 03-012403-0124$6.00
192Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-333501-3335$23.00
234Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
172Kurt Screw, SHCS, 1/2-13 X 5/8 - 00-141200-1412$6.00
132Kurt Screw, SHCS, 3/8-16 X 1 Long - 00-135500-1355$6.00
