CTTL4CS Replacement Parts

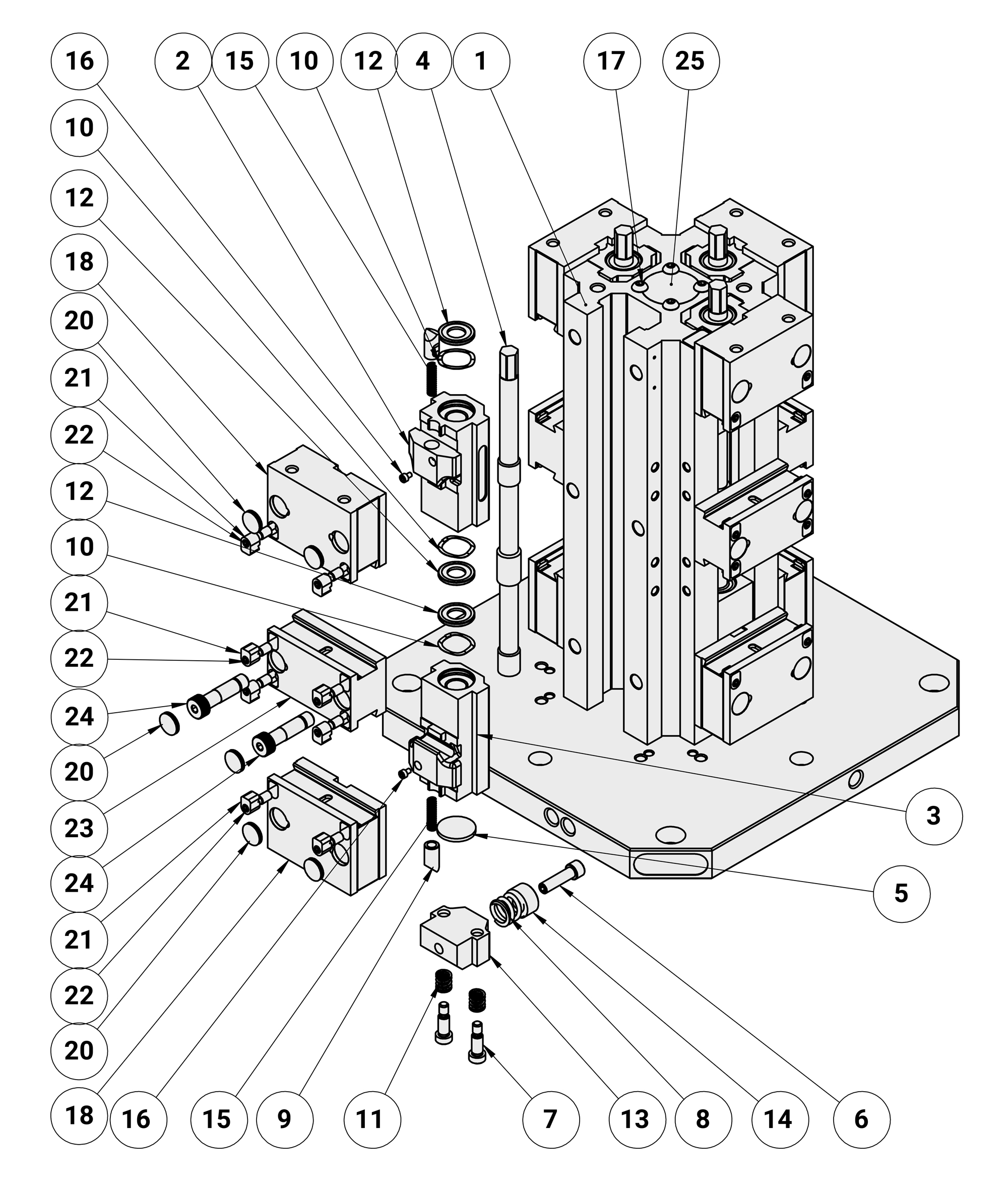

Kurt CTTL4CS Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
2132TL6CS Vise CARVESMART Clamp Nut - 8000780007$15.00
84TL6 Vise Friction Shoe Spring - TL6-87TL6-87$25.00
248TL6 Vise Stationary Jaw Shoulder Screw 1/2-13 - TL6-20TL6-20$48.00
2232Clamp Screw - 4" and 6" jaws - 8000380003$6.00
1012Kurt Wave Spring - DX4-169DX4-169$6.00
98Kurt Spring Guide - HDLM4-142HDLM4-142$12.00
158Kurt Spring, Compression - HDLM4-267HDLM4-267$8.00
174Kurt Screw, BHCS M8 X 1.25 X 12MM LG for use with the HDLM4 Metr - 29-016829-0168$6.00
168Kurt Screw, SHCS, M4 X .7 X 50MM Long - 26-005026-0050$6.00
1212Kurt Internal Brush Seal - PT400-211PT400-211$10.00
2024Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
