CTTL6CS Replacement Parts

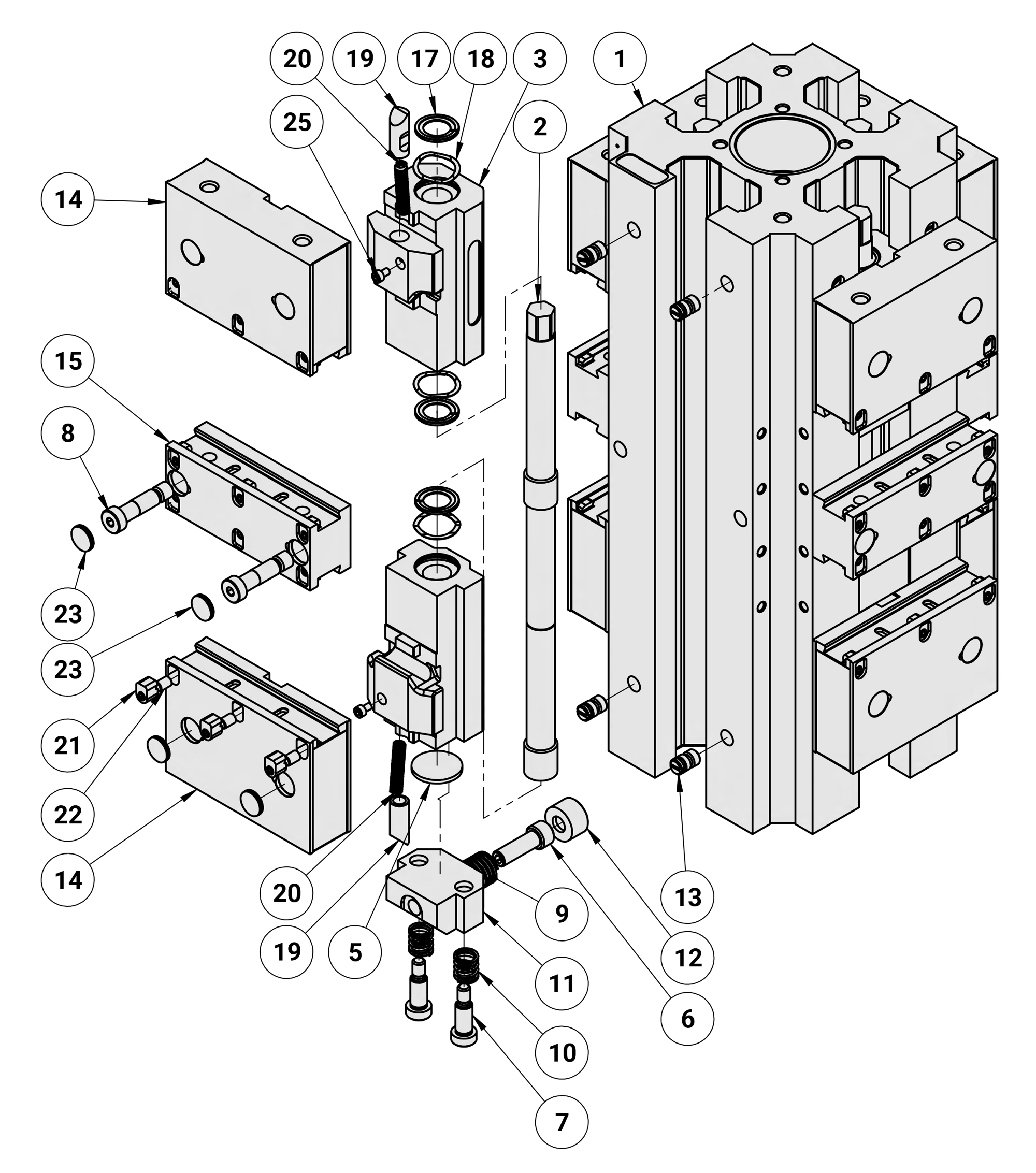

TriLock Tower Exploded Parts Diagram

Show per page

Callout	Qty Needed	Name	Part No.	Price	Buy
2	4	TL6 Vise Screw - TL6-5	TL6-5	$80.00	TL6 Vise Screw - TL6-5 quantity
3	4	TL6 Vise Front Nut - TL6-3F	TL6-3F	$192.00	TL6 Vise Front Nut - TL6-3F quantity
4	4	TL6 Vise Rear Nut - TL6-3R	TL6-3R	$194.00	TL6 Vise Rear Nut - TL6-3R quantity
5	4	TL6 Vise Protecting Plug - TL6-14	TL6-14	$9.00	TL6 Vise Protecting Plug - TL6-14 quantity
6	4	TL6 Vise Shoulder Screw 1/2-20 UNF X 1.5 Lg Modified - TL6-18	TL6-18	$30.00	TL6 Vise Shoulder Screw 1/2-20 UNF X 1.5 Lg Modified - TL6-18 quantity
7	8	TL6 Vise Holding Block Preload Shoulder Screw 1/2-13 - TL6-19	TL6-19	$6.00	TL6 Vise Holding Block Preload Shoulder Screw 1/2-13 - TL6-19 quantity
8	8	TL6 Vise Stationary Jaw Shoulder Screw 1/2-13 - TL6-20	TL6-20	$48.00	TL6 Vise Stationary Jaw Shoulder Screw 1/2-13 - TL6-20 quantity
9	4	TL6 Vise Friction Shoe Spring - TL6-87	TL6-87	$25.00	TL6 Vise Friction Shoe Spring - TL6-87 quantity
10	8	TL6 Vise Holding Block Preload Spring - TL6-197	TL6-197	$6.00	TL6 Vise Holding Block Preload Spring - TL6-197 quantity
11	4	TL6 Vise Holding Block - TL6-224	TL6-224	$42.00	TL6 Vise Holding Block - TL6-224 quantity
12	4	TL6 Vise Friction Shoe - TL6-225	TL6-225	$19.00	TL6 Vise Friction Shoe - TL6-225 quantity
13	16	TL6 Vise Body Plug 1/2 inch - TL6-292	TL6-292	$6.00	TL6 Vise Body Plug 1/2 inch - TL6-292 quantity
14	8	TL6CS CARVESMART Movable Jaw - TL6CS-2	TL6CS-2	$207.00	TL6CS CARVESMART Movable Jaw - TL6CS-2 quantity
15	4	TL6CS CARVESMART Stationary Jaw - TL6CS-6	TL6CS-6	$159.00	TL6CS CARVESMART Stationary Jaw - TL6CS-6 quantity
17	12	Kurt Internal Brush Seal - D688-211	D688-211	$10.00	Kurt Internal Brush Seal - D688-211 quantity
18	12	Kurt Wave Spring - DX6-169	DX6-169	$6.00	Kurt Wave Spring - DX6-169 quantity
19	8	Kurt Spring Guide, Metric - HDM6-142	HDM6-142	$12.00	Kurt Spring Guide, Metric - HDM6-142 quantity
20	8	Kurt Compression Spring - HD6-267	HD6-267	$8.00	Kurt Compression Spring - HD6-267 quantity
21	48	TL6CS Vise CARVESMART Clamp Nut - 80007	80007	$15.00	TL6CS Vise CARVESMART Clamp Nut - 80007 quantity
22	48	Clamp Screw - 4" and 6" jaws - 80003	80003	$6.00	Clamp Screw - 4" and 6" jaws - 80003 quantity
23	24	Kurt Protective Plug Assembly - 3600V-191-SA	3600V-191-SA	$6.00	Kurt Protective Plug Assembly - 3600V-191-SA quantity
25	8	Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-0082	26-0082	$6.00	Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-0082 quantity

Showing 22 products
