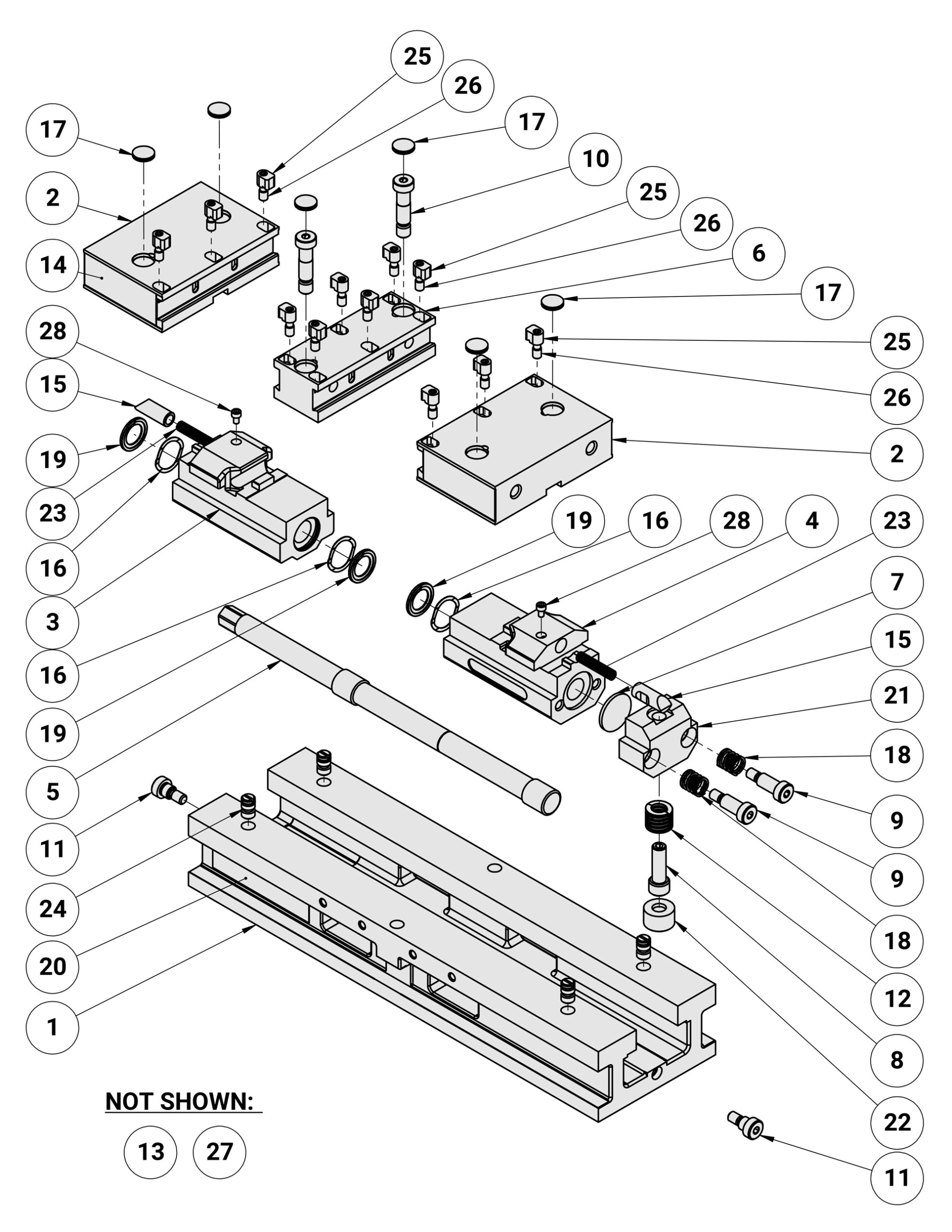

TL6SCS Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
TL6CS Vise CARVESMART Clamp Nut - 8000780007$15.00
TL6 Vise Body Plug 1/2 inch - TL6-292TL6-292$6.00
TL6 Vise Friction Shoe - TL6-225TL6-225$19.00
TL6 Vise Holding Block - TL6-224TL6-224$42.00
TL6 Vise Holding Block Preload Spring - TL6-197TL6-197$6.00
TL6 Vise Friction Shoe Spring - TL6-87TL6-87$25.00
TL6 Vise Screw Assembly Shoulder Screw - TL6-21TL6-21$6.00
TL6 Vise Holding Block Preload Shoulder Screw 1/2-13 - TL6-19TL6-19$6.00
TL6 Vise Stationary Jaw Shoulder Screw 1/2-13 - TL6-20TL6-20$48.00
TL6 Vise Shoulder Screw 1/2-20 UNF X 1.5 Lg Modified - TL6-18TL6-18$30.00
TL6 Vise Protecting Plug - TL6-14TL6-14$9.00
TL6CS CARVESMART Stationary Jaw - TL6CS-6TL6CS-6$159.00
TL6 Vise Screw - TL6-5TL6-5$80.00
TL6 Vise Rear Nut - TL6-3RTL6-3R$194.00
TL6CS CARVESMART Movable Jaw - TL6CS-2TL6CS-2$207.00
Clamp Screw - 4" and 6" jaws - 8000380003$6.00
Kurt Wave Spring - DX6-169DX6-169$6.00
Kurt Spring Guide, Metric - HDM6-142HDM6-142$12.00
Kurt Compression Spring - HD6-267HD6-267$8.00
Kurt Internal Brush Seal - D688-211D688-211$10.00
Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
