3400H Replacement Parts

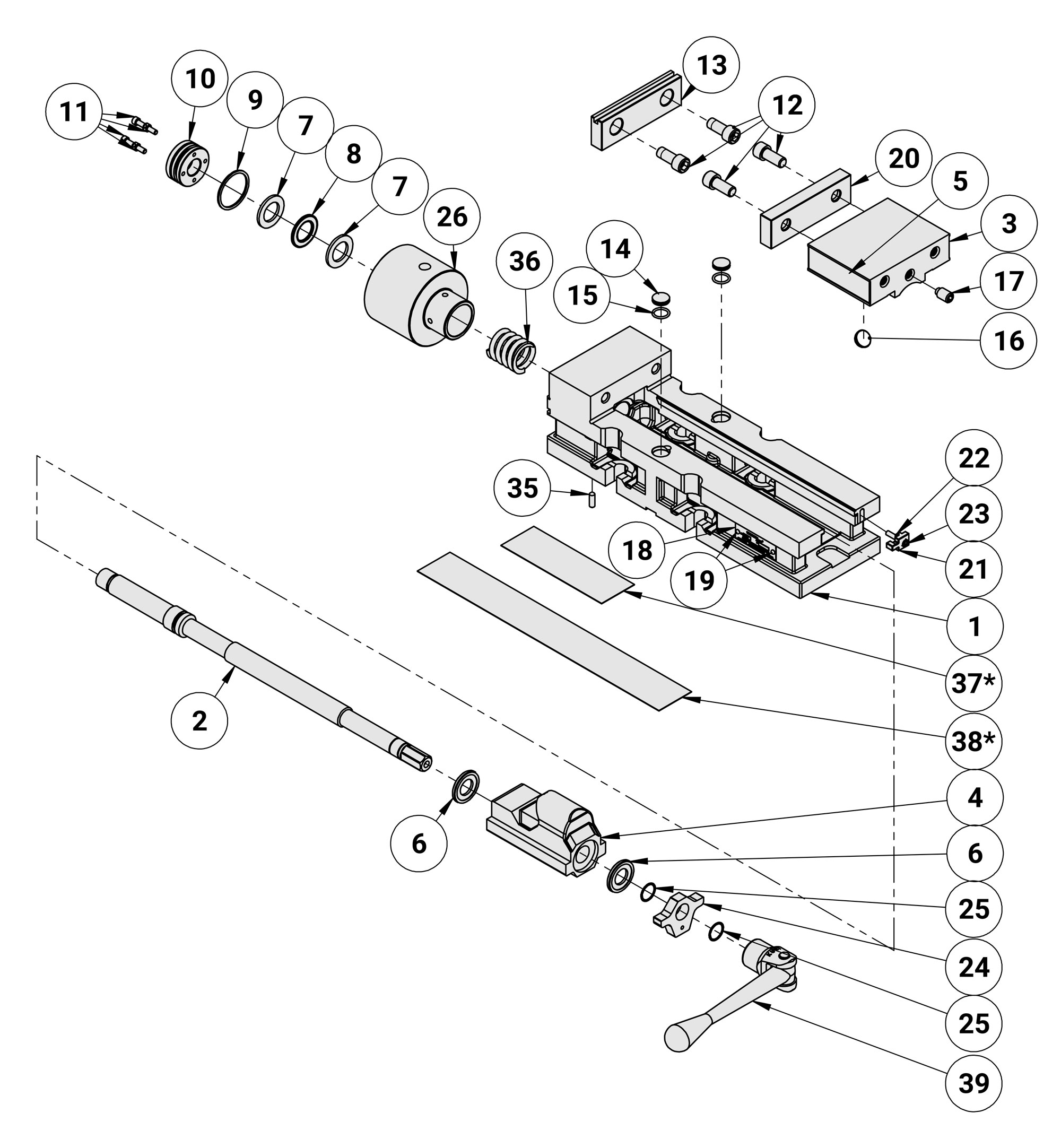

Kurt 3400H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
261Kurt 4" Hydraulic Unit - KHU4-PKHU4-P$1,245.00
0Kurt Nut - DX4-3DX4-3$50.00
0Kurt Handle Assembly - D40I-10-SAD40I-10-SA$41.00
0Kurt 3400H Repair Kit - 3400H-KIT3400H-KIT$73.00
192Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
351Kurt SHSS 10-24 x .625 - 01-326501-3265$11.00
361Kurt Compression Spring - 4BHU-874BHU-87$28.00
124Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$6.00
21Kurt Screw - 3400H-53400H-5$144.00
142Kurt Protective Plug - 3400V-1913400V-191$8.00
252Kurt Spiral Retaining Ring - 3400V-1473400V-147$6.00
171Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
101Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
241Kurt Screw Support - 3400V-224-CP3400V-224$36.00
91Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$6.00
72Kurt Thrust Bearing Washer - D40-42D40-42$8.00
221Kurt Replacement Clamp Assembly - WSRL46-86-SAWSRL46-86-SA$18.00
131Kurt Jaw Plate w/ Groove - D40-315D40-315$75.00
0Kurt Workstop Assembly - WSRL46WSRL46$23.00
62Kurt Internal Brush Seal - PT400-211PT400-211$10.00
31Kurt Movable Jaw - DL430-2DL430-2$137.00
381Kurt Chip Guard, Long - DL400-249DL400-249$9.00
371Kurt Chip Guard, Short - DL400-248DL400-248$8.00
161Kurt Spherical Segment - D40-9D40-9$7.00
201Kurt Jaw Plate, 4" - D40-7D40-7$50.00
81Kurt Thrust Bearing - D40-41D40-41$8.00
152Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$6.00
231Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
114Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
