3410H Replacement Parts

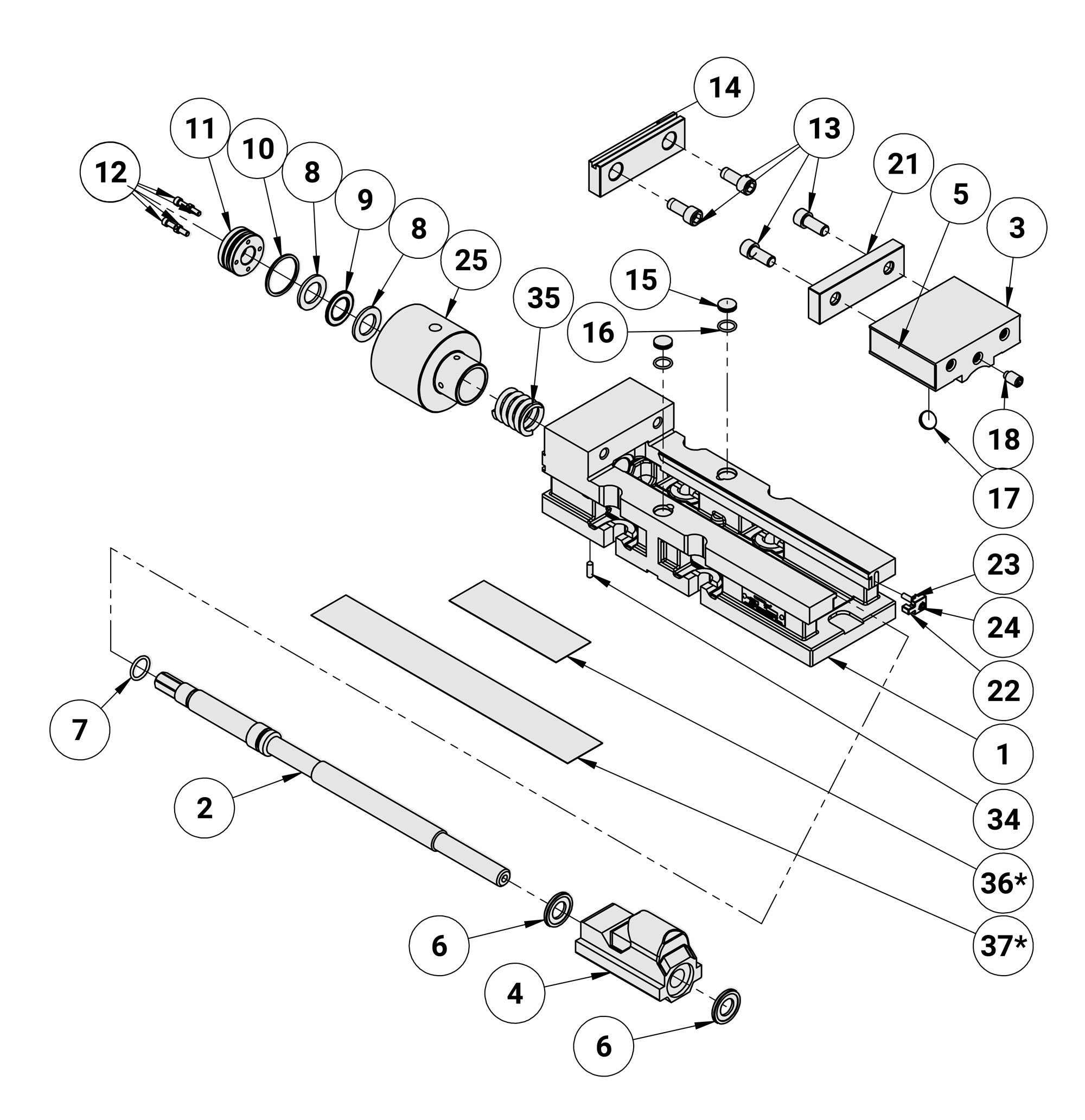

Kurt 3410H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
251Kurt 4" Hydraulic Unit - KHU4-PKHU4-P$1,245.00
0Kurt Nut, Reverse - DX4R-3DX4R-3$45.00
0Kurt Handle Assembly - D40I-10-SAD40I-10-SA$41.00
202Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
341Kurt SHSS 10-24 x .625 - 01-326501-3265$11.00
351Kurt Compression Spring - 4BHU-874BHU-87$28.00
134Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$6.00
21Kurt Screw - 3410H-53410H-5$230.00
152Kurt Protective Plug - 3400V-1913400V-191$8.00
181Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
111Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
101Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$6.00
82Kurt Thrust Bearing Washer - D40-42D40-42$8.00
141Kurt Jaw Plate w/ Groove - D40-315D40-315$75.00
221Kurt Workstop Assembly - WSRL46WSRL46$23.00
62Kurt Internal Brush Seal - PT400-211PT400-211$10.00
31Kurt Movable Jaw - DL430-2DL430-2$137.00
371Kurt Chip Guard, Long - DL400-249DL400-249$9.00
361Kurt Chip Guard, Short - DL400-248DL400-248$8.00
171Kurt Spherical Segment - D40-9D40-9$7.00
211Kurt Jaw Plate, 4" - D40-7D40-7$50.00
91Kurt Thrust Bearing - D40-41D40-41$8.00
162Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$6.00
71Kurt O-Ring, #115 - 3600AA-683600AA-68$6.00
124Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
