3410V Replacement Parts

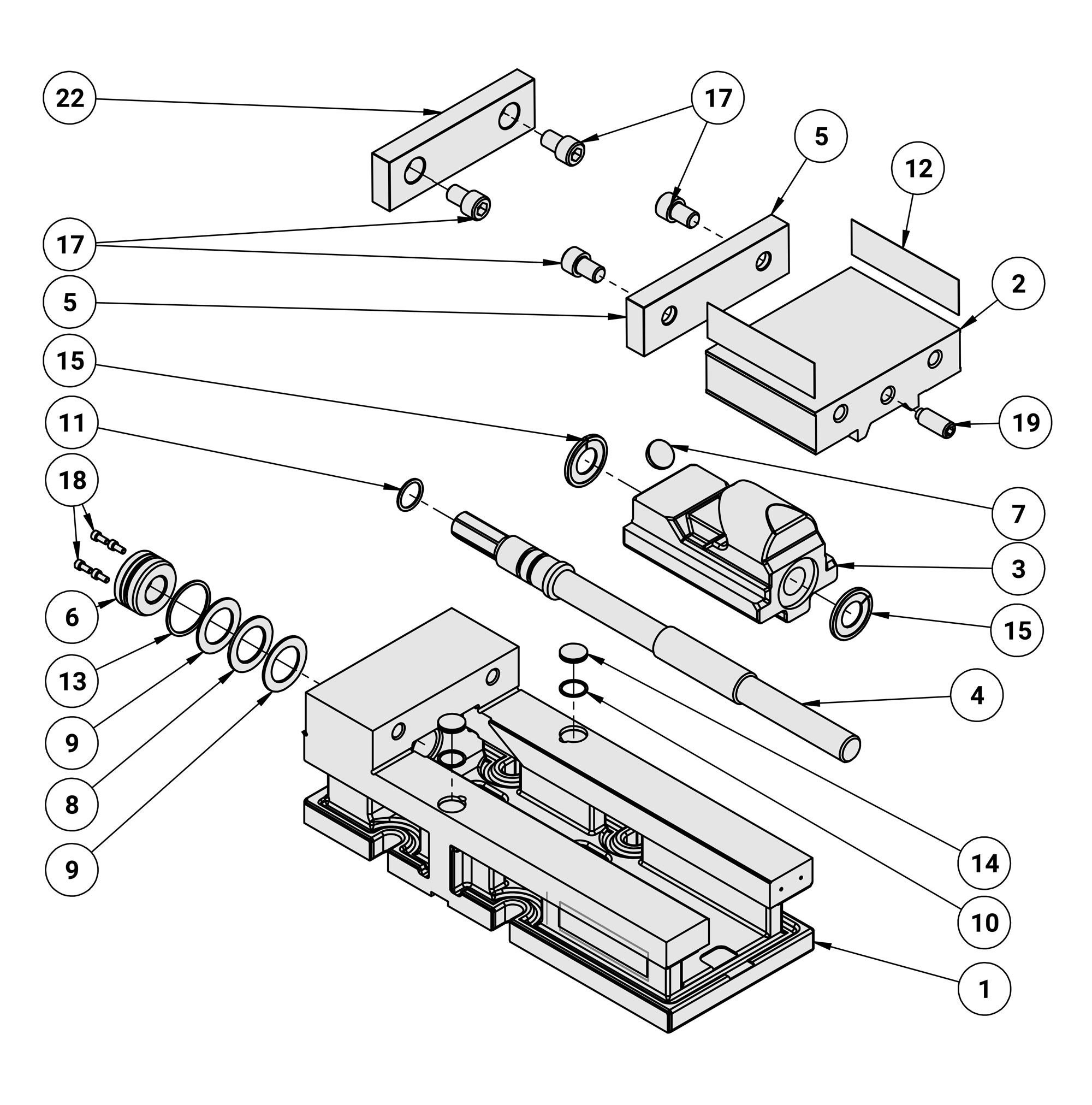

Kurt 3410V Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0KURT 3400V-KIT2 REPAIR KIT FOR THE FOLLOWING SERIAL NUMBERS: 3400V #1319-ALL AND 3410 #????$34.00
0KURT 3400V-KIT1 REPAIR KIT, 3400V/3410V REPAIR KIT FOR THE FOLLOWING SERIAL NUMBERS: 3400V #1000-1318 AND 3410 #1000-??3400V-KIT1$35.00
21DX4 MOVABLE JAW - DX4-2DX4-2$130.00
31Kurt Nut, Reverse - DX4R-3DX4R-3$45.00
81Kurt Thrust Bearing - 3400V-413400V-41$6.00
211Kurt Handle Assembly - D40I-10-SAD40I-10-SA$41.00
92Kurt Thrust Washer - 3400V-423400V-42$6.00
174Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$6.00
0Kurt Screw - 3410V-53410V-5$96.00
142Kurt Protective Plug - 3400V-1913400V-191$8.00
191Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
61Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
131Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$6.00
221Kurt Jaw Plate w/ Groove - D40-315D40-315$75.00
201Kurt Workstop Assembly - WSRL46WSRL46$23.00
152Kurt Internal Brush Seal - PT400-211PT400-211$10.00
71Kurt Spherical Segment - D40-9D40-9$7.00
52Kurt Jaw Plate, 4" - D40-7D40-7$50.00
102Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$6.00
111Kurt O-Ring, #115 - 3600AA-683600AA-68$6.00
184Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
