3600H Replacement Parts

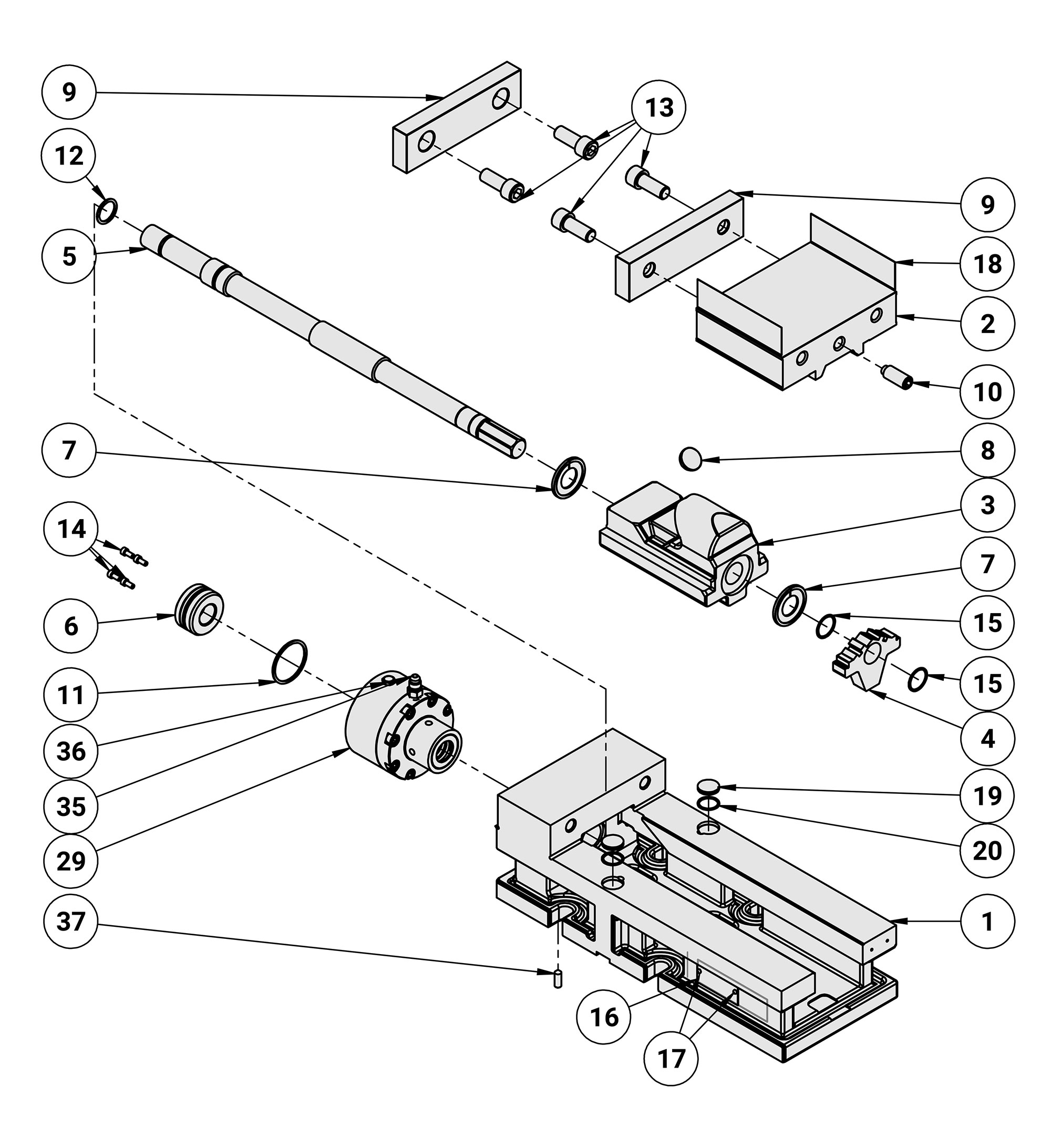

Kurt 3600H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
351FITTING, 1/8 MNPT-4MJIC - 2404-04-022404-04-02$6.00
361Kurt 1/8 inch Breather Fitting - PCFBR-02PCFBR-02$6.00
0Kurt KHU6 Seal Kit - KHU6-KITKHU6-KIT$23.00
172Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
291Kurt 6" Hydraulic Unit - KHU6KHU6$871.00
0Kurt 3600H Repair Kit - 3600H-KIT3600H-KIT$44.00
81Kurt Spherical Segment - D60-9D60-9$9.00
92Kurt Jaw Plate, 6" - D60-7D60-7$48.00
0Kurt Handle Assembly - D60I-10-SAD60I-10-SA$40.00
51Kurt Screw, Hydraulic - 360HU-5360HU-5$192.00
121Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
61Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$21.00
31Kurt Nut w/ Internal Brush Seal - 3600V-33600V-3$121.00
0Kurt Chip Guard, Long - 3600V-2493600V-249$9.00
0Kurt Chip Guard, Short - 3600V-2483600V-248$7.00
41Kurt Screw Support - 3600V-224B3600V-224B$29.00
72Kurt Internal Brush Seal - 3600V-2113600V-211$10.00
21Kurt Movable Jaw - 3600V-23600V-2$256.00
192Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
152Kurt Spiral Retaining Ring - 3600V-1473600V-147$6.00
111Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
0Kurt O-Ring, Buna N, 008 - 225-01225-01$6.00
101Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$8.00
371Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$7.00
134Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
144Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
