3610A Replacement Parts

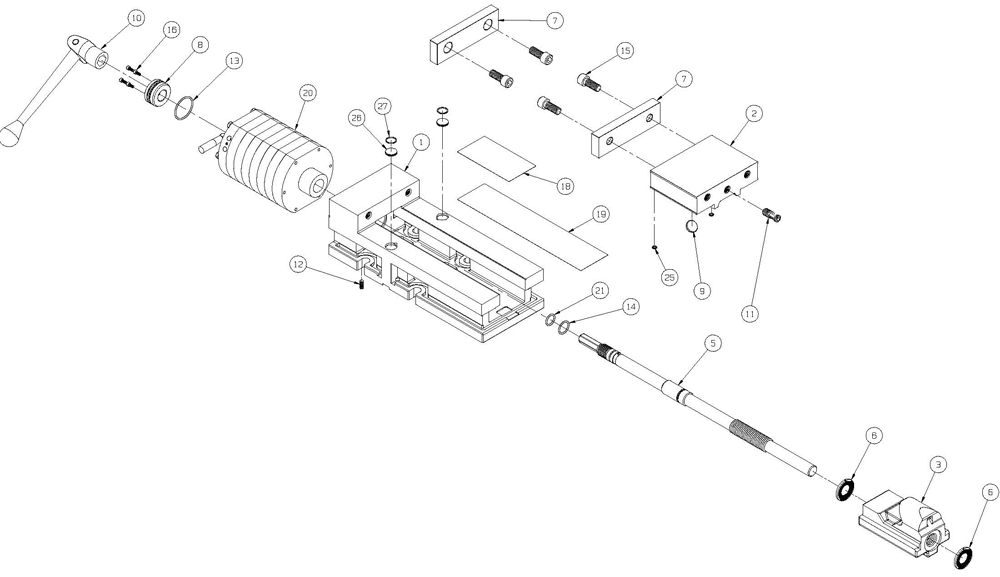

3610A Exploded

CalloutQty NeededNamePart No.PriceBuy
232Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
91Kurt Spherical Segment - D60-9D60-9$9.00
72Kurt Jaw Plate, 6" - D60-7D60-7$48.00
101Kurt Handle Assembly - D50-10A-SAD50-10A-SA$115.00
201Kurt Basic Air Unit - KAU6KAU6$2,060.00
51Kurt Reverse STD Air Vise Screw - 361AU-5361AU-5$378.00
31Kurt Nut, Reverse w/ Brush Seals - 3610V-33610V-3$121.00
141Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
0Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$21.00
191Kurt Chip Guard, Long - 3600V-2493600V-249$9.00
181Kurt Chip Guard, Short - 3600V-2483600V-248$7.00
62Kurt Internal Brush Seal - 3600V-2113600V-211$10.00
21Kurt Movable Jaw - 3600V-23600V-2$256.00
262Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
131Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
211Kurt O-Ring, #115 - 3600AA-683600AA-68$6.00
252Kurt O-Ring, Buna N, 008 - 225-01225-01$6.00
111Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$8.00
121Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$7.00
154Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$6.00
164Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
