3800V Replacement Parts

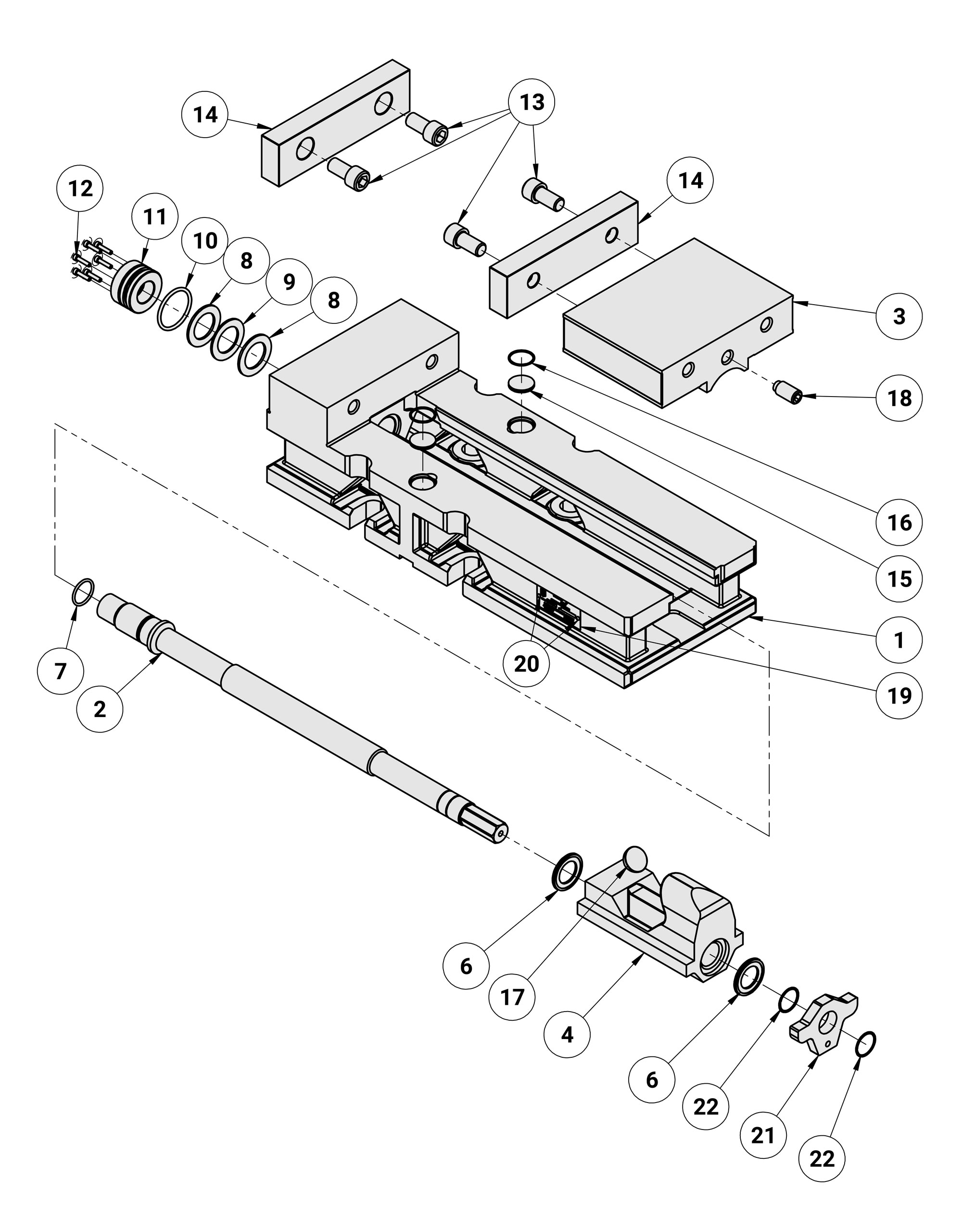

Kurt 3800V Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
41Kurt Nut with Internal Brush Seal - 3800V-33800V-3$149.00
0Kurt 3800V Repair Kit - 3800V-KIT23800V-KIT2$61.00
0Kurt Screw Support - XL8-224XL8-224$51.00
82Kurt Thrust Bearing Washer - 3800V-423800V-42$13.00
91Kurt Thrust Bearing - 3800V-413800V-41$11.00
0Kurt Movable Jaw - DX8-2DX8-2$323.00
202Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
31Kurt Movable Jaw - 3800V-23800V-2$307.00
0Kurt Nut with Internal Brush Seal - DX8-3DX8-3$100.00
111Kurt Retaining Nut, 2 piece - 3800V-83800V-8$63.00
71Kurt O-Ring, #121 - 3800V-993800V-99$6.00
152Kurt Protective Plug - 3800V-1913800V-191$9.00
101Kurt O-Ring, #224 - 3800V-1283800V-128$6.00
222Kurt Spiral Retaining Ring - 3800V-1473800V-147$6.00
211Kurt Screw Support - 3800V-2243800V-224$59.00
21Kurt Screw - DX8-5DX8-5$202.00
0Kurt 3800V Repair Kit - 3800V-KIT13800V-KIT1$40.00
162Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$6.00
62Kurt Internal Brush Seal - PT800-211PT800-211$11.00
0Kurt Chip Guard - D80XL-248D80XL-248$11.00
171Kurt Spherical Segment - D80-9D80-9$9.00
142Kurt Jaw Plate, 8" - D80-7D80-7$124.00
0Kurt Thrust Bearing Washer - D80-42D80-42$8.00
0Kurt Thrust Bearing - D80-41D80-41$7.00
0Kurt Handle Assembly - D80I-10-SAD80I-10-SA$88.00
181Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
134Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
126Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
