3810H Replacement Parts

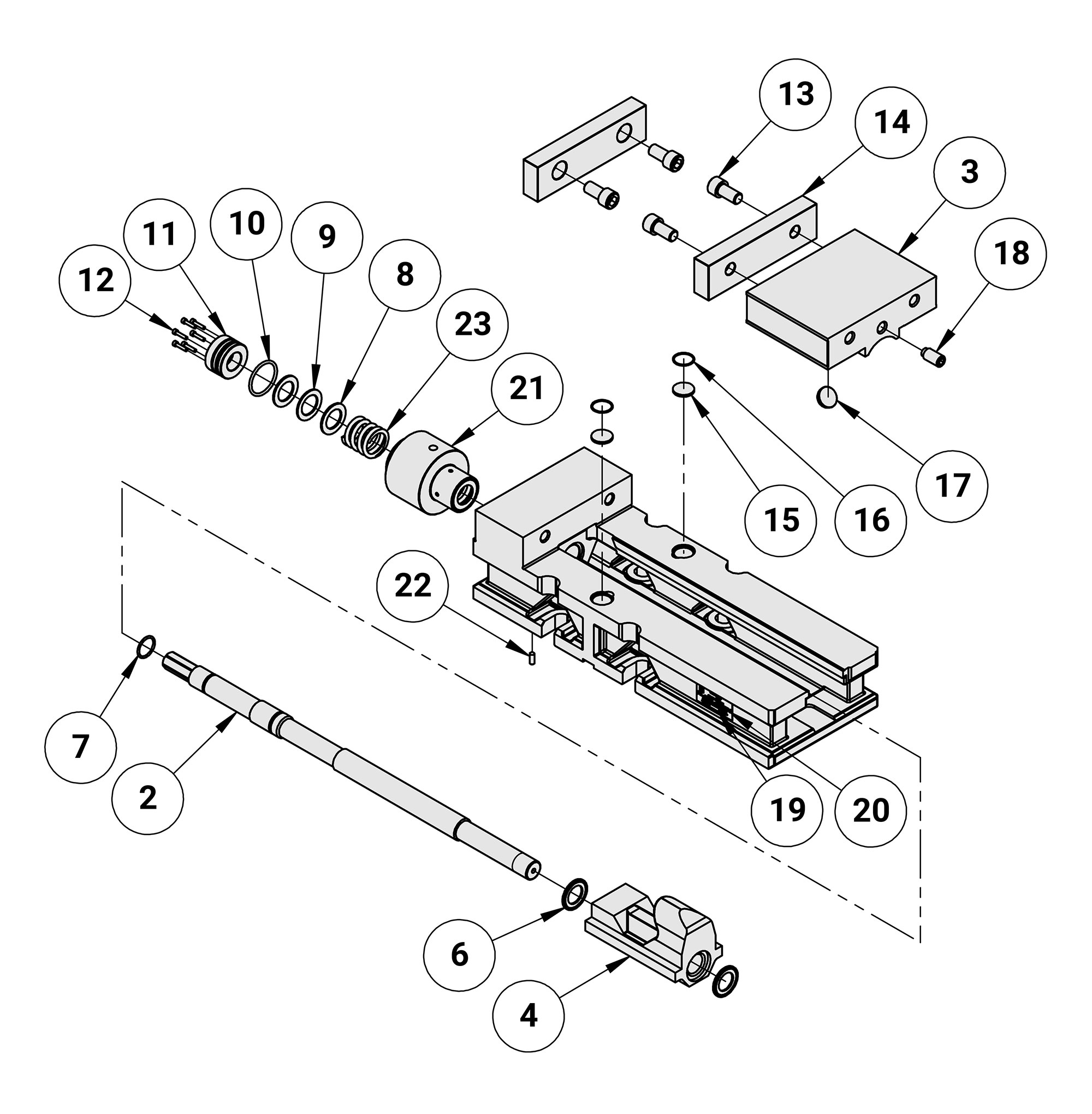

Kurt 3810H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0Kurt KHU8 Seal Kit - KHU8-KITKHU8-KIT$51.00
0Kurt Nut with Internal Brush Seal - DX8R-3DX8R-3$130.00
0Kurt Nut with Internal Brush Seal - 3800V-33800V-3$149.00
231Kurt Compression Spring - 8BHU-878BHU-87$34.00
202Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
21Kurt Screw - 3810H-5-CP3810H-5-CP$517.00
41Kurt Nut, Machined - 3810V-33810V-3$115.00
31Kurt Movable Jaw - 3800V-23800V-2$307.00
111Kurt Retaining Nut, 2 piece - 3800V-83800V-8$63.00
71Kurt O-Ring, #121 - 3800V-993800V-99$6.00
0Kurt Protective Plug - 3800V-1913800V-191$9.00
101Kurt O-Ring, #224 - 3800V-1283800V-128$6.00
0Kurt Spiral Retaining Ring - 3800V-1473800V-147$6.00
0Kurt Screw Support - 3800V-2243800V-224$59.00
0Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$6.00
62Kurt Internal Brush Seal - PT800-211PT800-211$11.00
171Kurt Spherical Segment - D80-9D80-9$9.00
52Kurt Jaw Plate, 8" - D80-7D80-7$124.00
82Kurt Thrust Bearing Washer - D80-42D80-42$8.00
91Kurt Thrust Bearing - D80-41D80-41$7.00
181Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
221Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$7.00
134Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
126Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
