3810V Replacement Parts

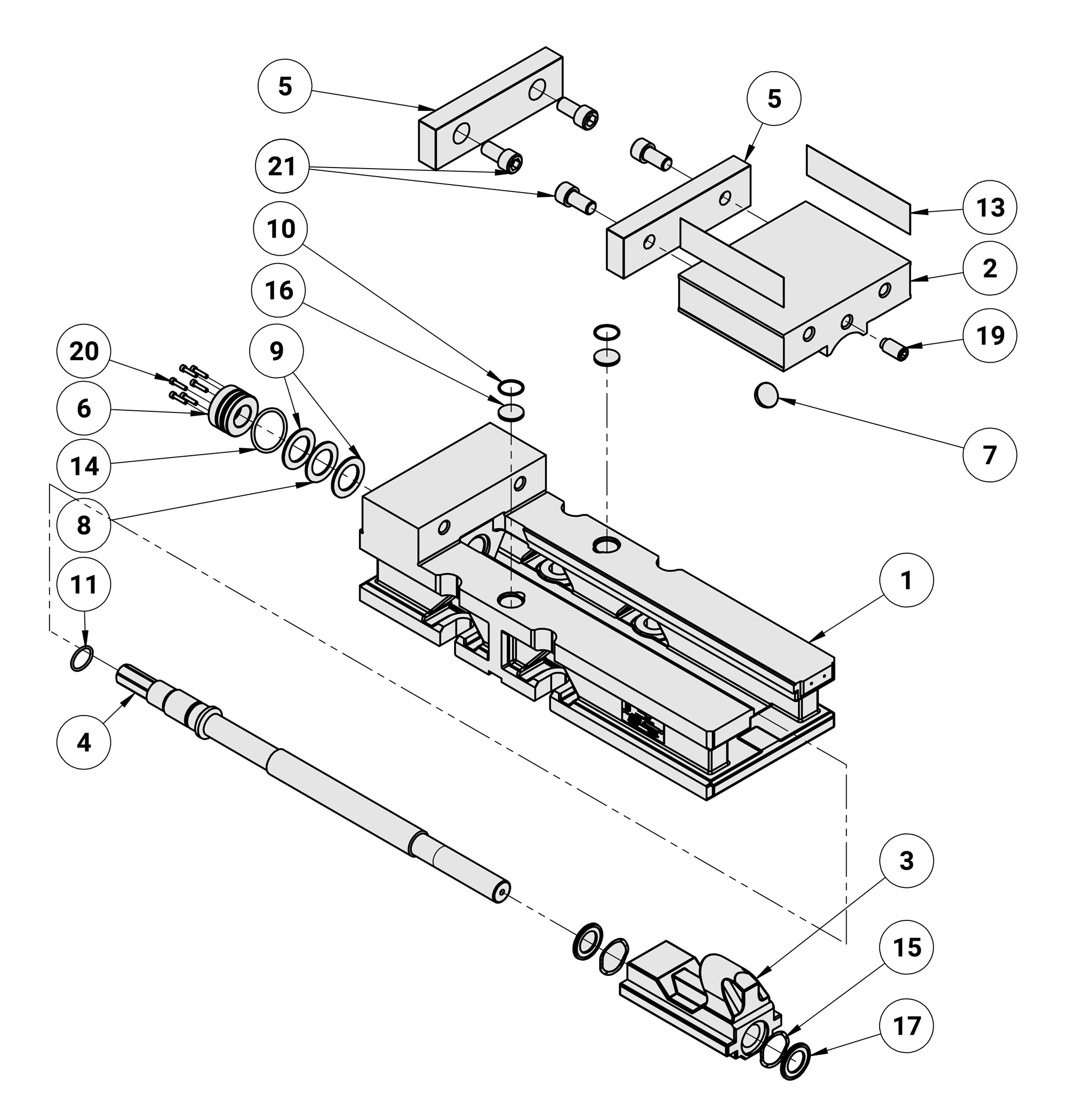

Kurt 3810V Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
152Kurt Wave Spring - DX8-169DX8-169$6.00
31Kurt Nut with Internal Brush Seal - DX8R-3DX8R-3$130.00
92Kurt Thrust Bearing Washer - 3800V-423800V-42$13.00
81Kurt Thrust Bearing - 3800V-413800V-41$11.00
21Kurt Movable Jaw - DX8-2DX8-2$323.00
182Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
0Kurt Nut, Machined - 3810V-33810V-3$115.00
41Kurt Screw - 3810V-5A-CP3810V-5A-CP$342.00
61Kurt Retaining Nut, 2 piece - 3800V-83800V-8$63.00
111Kurt O-Ring, #121 - 3800V-993800V-99$6.00
162Kurt Protective Plug - 3800V-1913800V-191$9.00
141Kurt O-Ring, #224 - 3800V-1283800V-128$6.00
102Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$6.00
172Kurt Internal Brush Seal - PT800-211PT800-211$11.00
71Kurt Spherical Segment - D80-9D80-9$9.00
52Kurt Jaw Plate, 8" - D80-7D80-7$124.00
0Kurt Thrust Bearing Washer - D80-42D80-42$8.00
191Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
214Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
206Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
