Kurt 3600H Repair Kit – 3600H-KIT
Part No. 3600H-KIT
$44.00
3600H Repair Kit
Description
Description

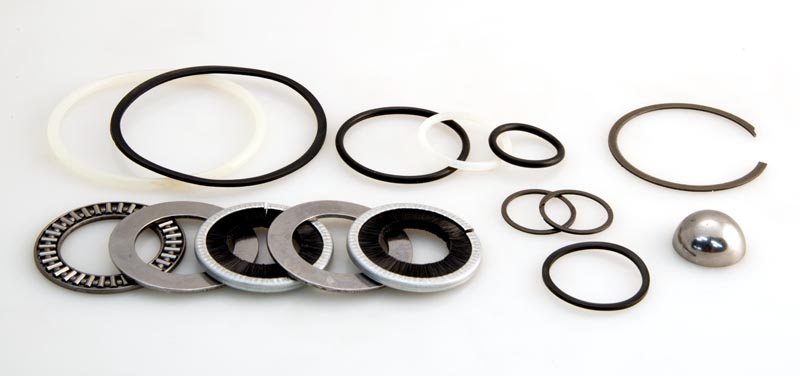

| 3600H-KIT Parts Included | Part No. | QTY |
| O-Ring, Buna N, #129 | 3600V-128 | 1 |
| Spiral Retaining Ring | 3600V-147 | 2 |
| Internal Brush Seal | 3600V-211 | 2 |
| Washer, Thrust Bearing | 3600V-42 | 2 |
| O-Ring, Buna N, #117 | 360HU-99 | 1 |
| Backup Ring | 360HU-187 | 1 |
| Ring, Retaining | 360HU-231 | 1 |
| O-Ring, Urethane, #121 | 360HU-98 | 1 |
| Segment | D60-9 | 1 |
| Thrust Bearing | D80-41 | 1 |
| Backup Ring | PTH600-188 | 1 |
| O-Ring, Urethane, #230 | PTH600-96 | 1 |
This kit includes seals for the 36BHU hydraulic unit. If your vise has a KHU6 hydraulic unit, then you will need to buy the 3600V-KIT and KHU6-KIT instead. If you need help identifying which hydraulic unit is on your vise, please contact customer service at 877-226-7823.
