Kurt 4-inch TriLock Tower – CTTL4CS

Description

The new Kurt TriLock 4-inch Tower with CARVESMART™ has a revolutionary design that transforms a Kurt 4-sided tower into a multi-configuration workholding work horse. Each of the four TL4 vise jaw sets can be reconfigured into three different vise sizes in minutes and can be completely disassembled for cleaning or setup in under 3 minutes. Patented CARVESMART jaws mount using a dovetail system that locates precisely with every jaw change and hold parts as solid as any bolt-on jaw. Each vise has CARVESMART movable and stationary jaws preinstalled with two pairs of aluminum soft jaws in each vise.  Search other CARVESMART jaw plates here –>

CTTL4CS 3-in-1 TriLock Design

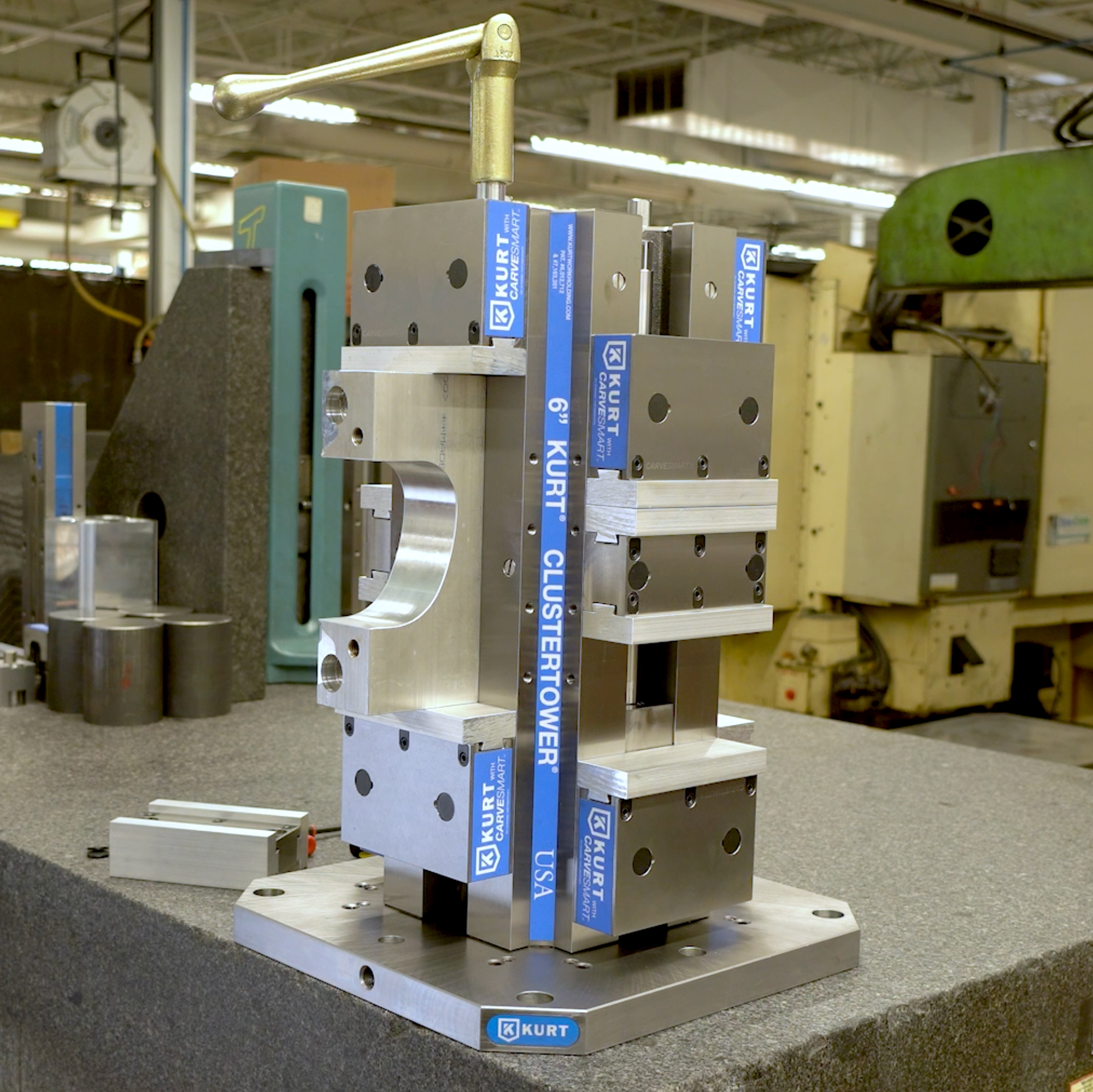

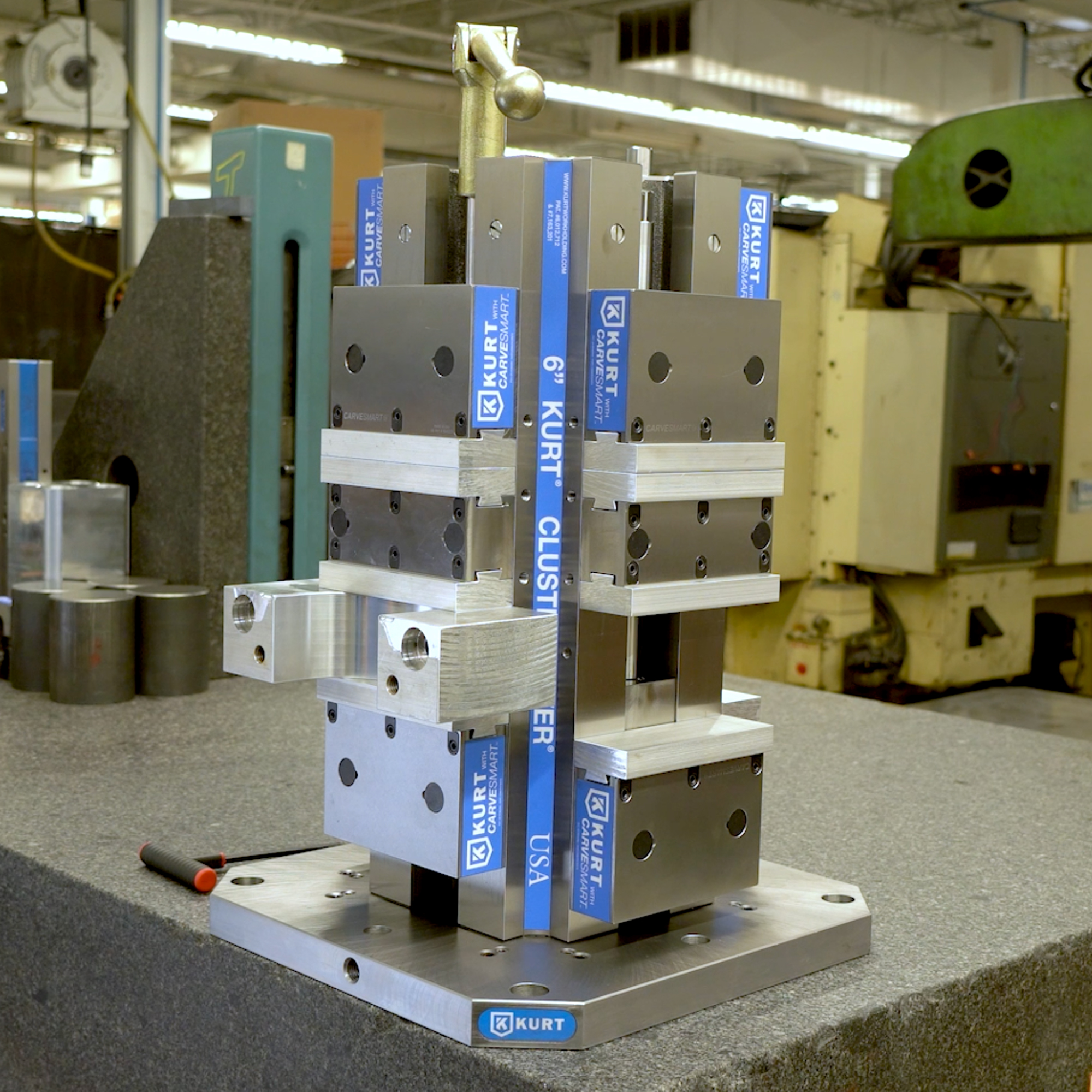

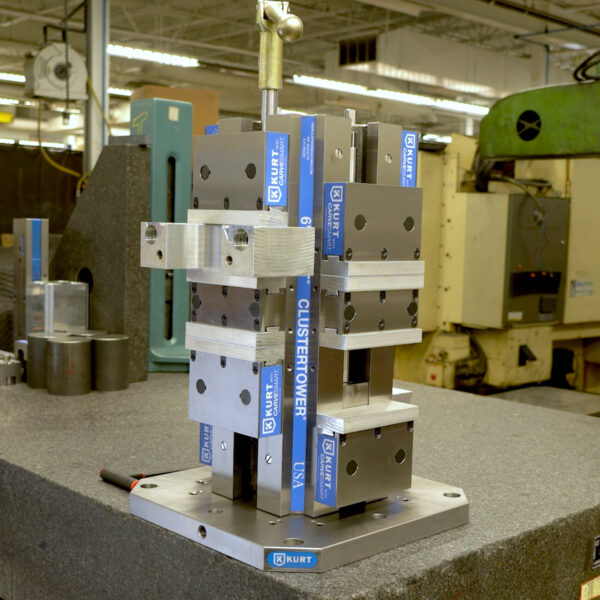

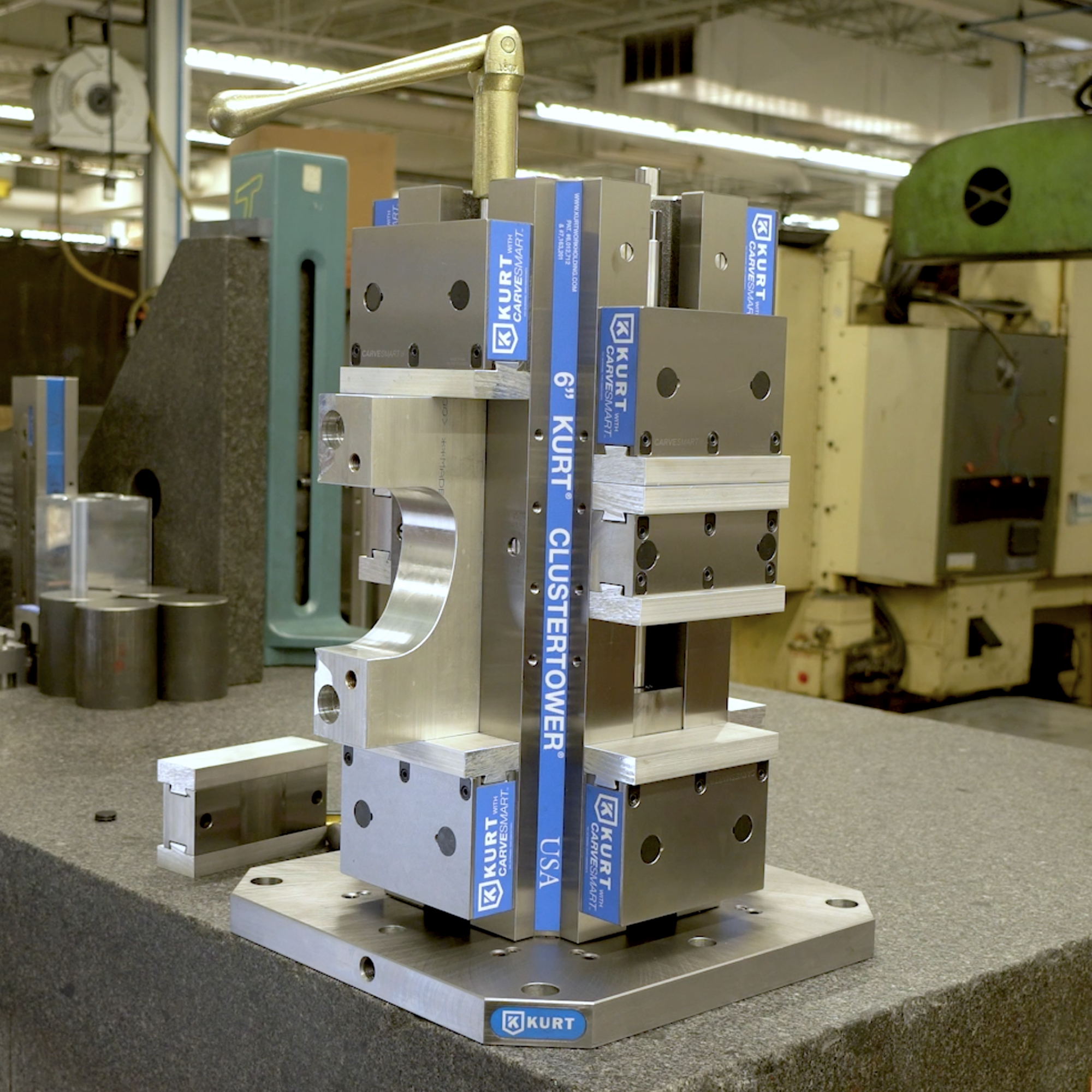

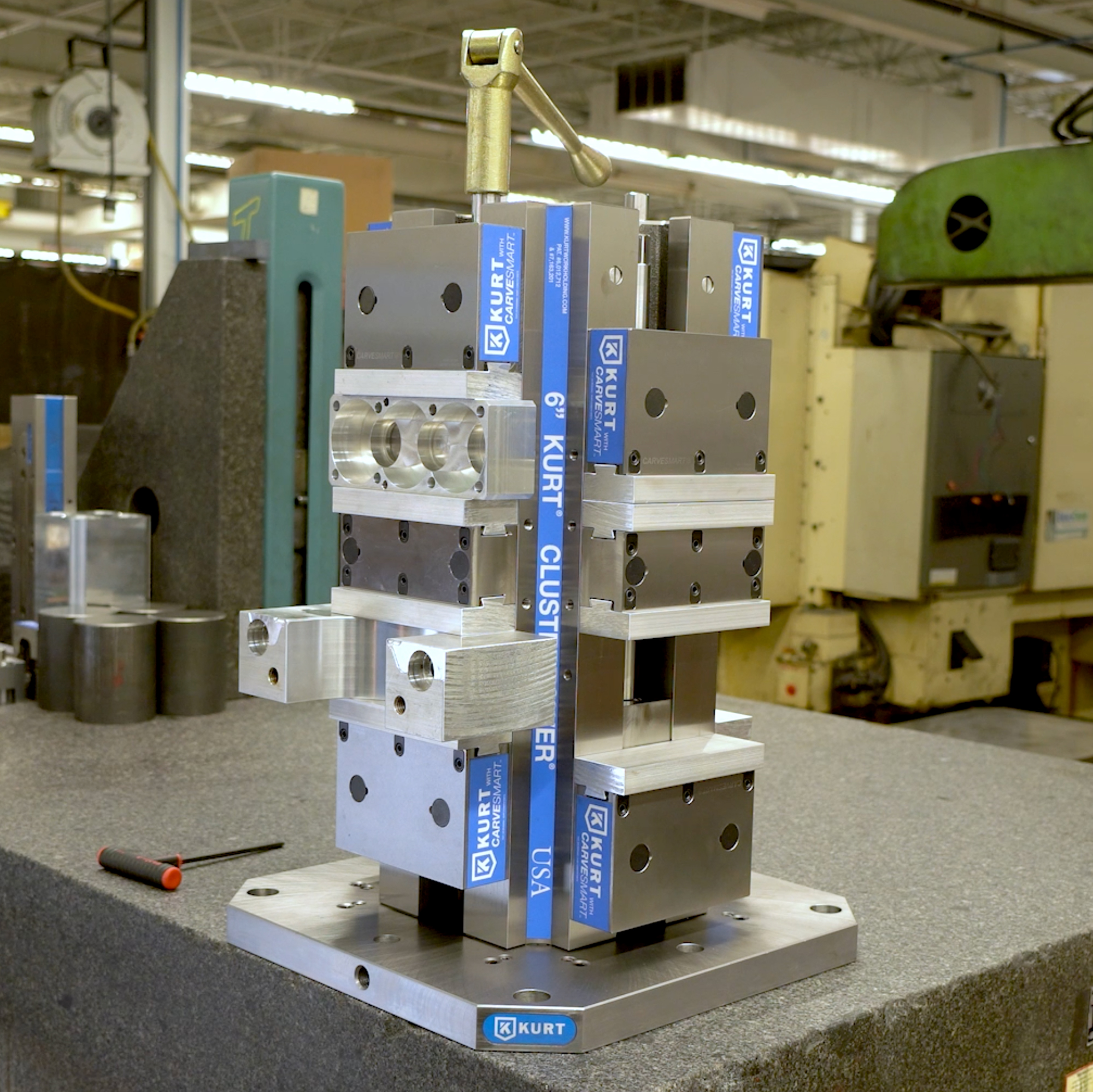

The TriLock design does the work of three vises in a single vise model and converts quickly between a double-station vise with as much as 4-inches of part capacity on each side, a single-station vise large enough for a 4-inch part or a large single-station vise that can hold parts as large as 11 inches wide with stock hard jaws. The friction block or “Third Hand” feature allows the nut and screw assembly to move freely within the tower while changing vise configurations or cleaning. TriLock Towers offer additional part holding options with upper and lower small single station and upper and lower large single station configurations. This allows operators to position jaws and parts at optimal heights. Watch the video below for a great illustration of the 5 part-holding configurations.

Features & Benefits

• Save money and setups with 3-in-1 vise design.
• 5 unique part-holding configurations with the TriLock Tower design.
• TriLock vises can be torn down for cleaning in just minutes.
• CARVESMART jaws come in multiple sizes and styles and can be ordered in bulk lengths.
• CARVESMART SmartStopped jaws have locating pins for easy repeatability.
• Space-saving design allows variable part sizes to run on the same tower.
• TriLock CTTL6CS Tower includes 8 sets of CARVESMART 3/4″ x 2″ x 4″ soft jaws.
• Includes deep-socket vise handle and 2 hex wrenches.
