Kurt 5-Axis Push Button Pallet – MPW420
Part No. MPW420
$1,779.00
The New Kurt MPW420 Pallet features 96 mm pull-stud spacing and push-button release for rapid manual or robotic vise swaps.
1 in stock
Description
Description

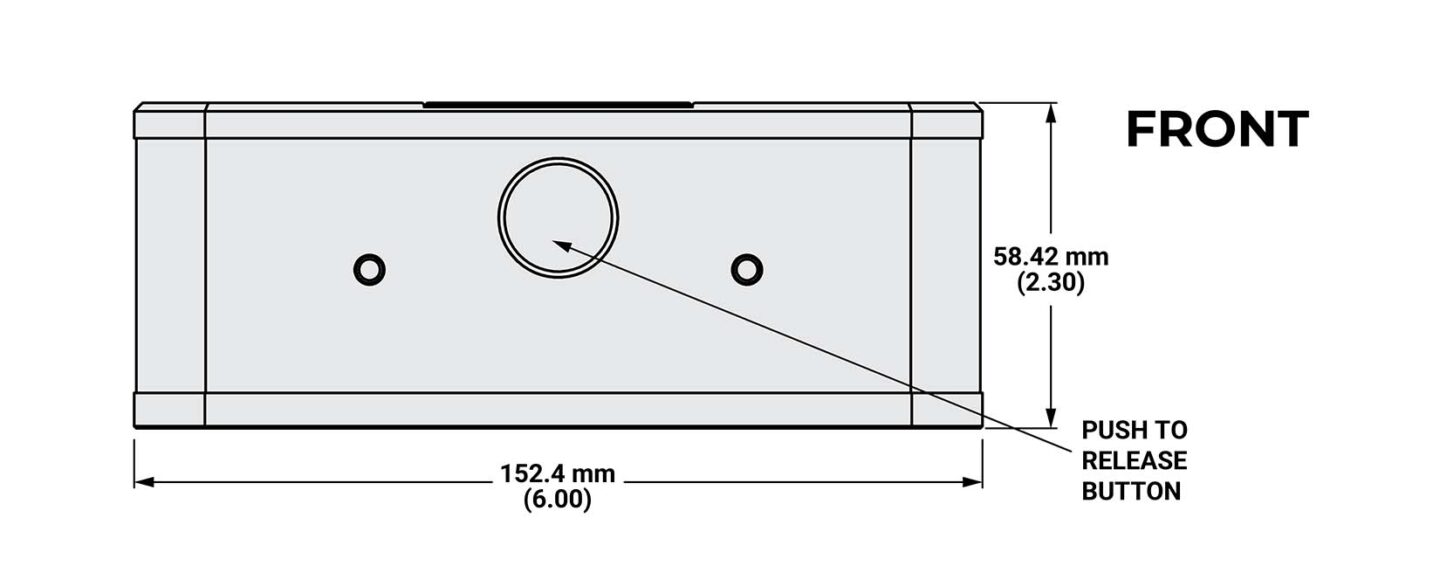

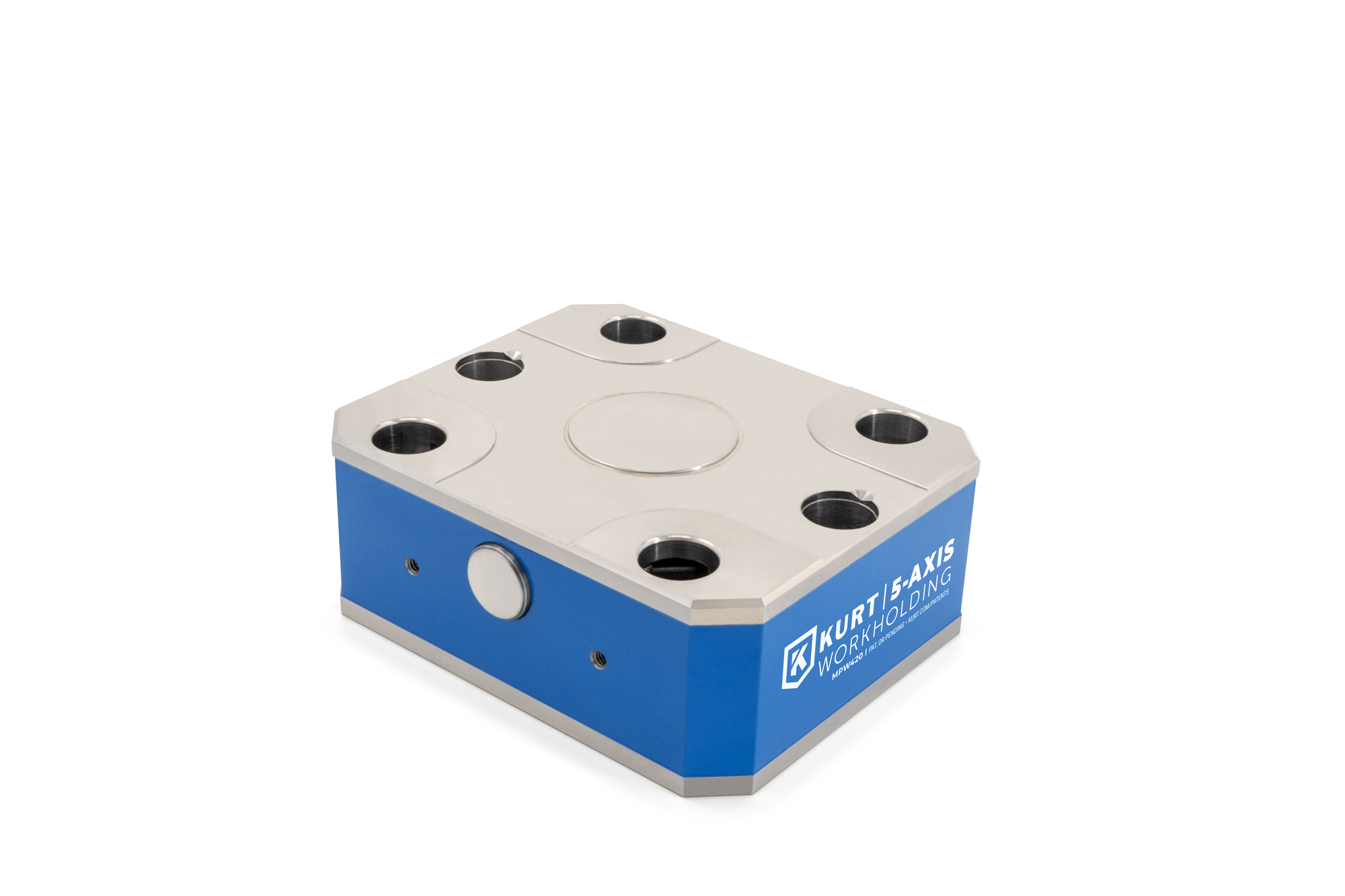

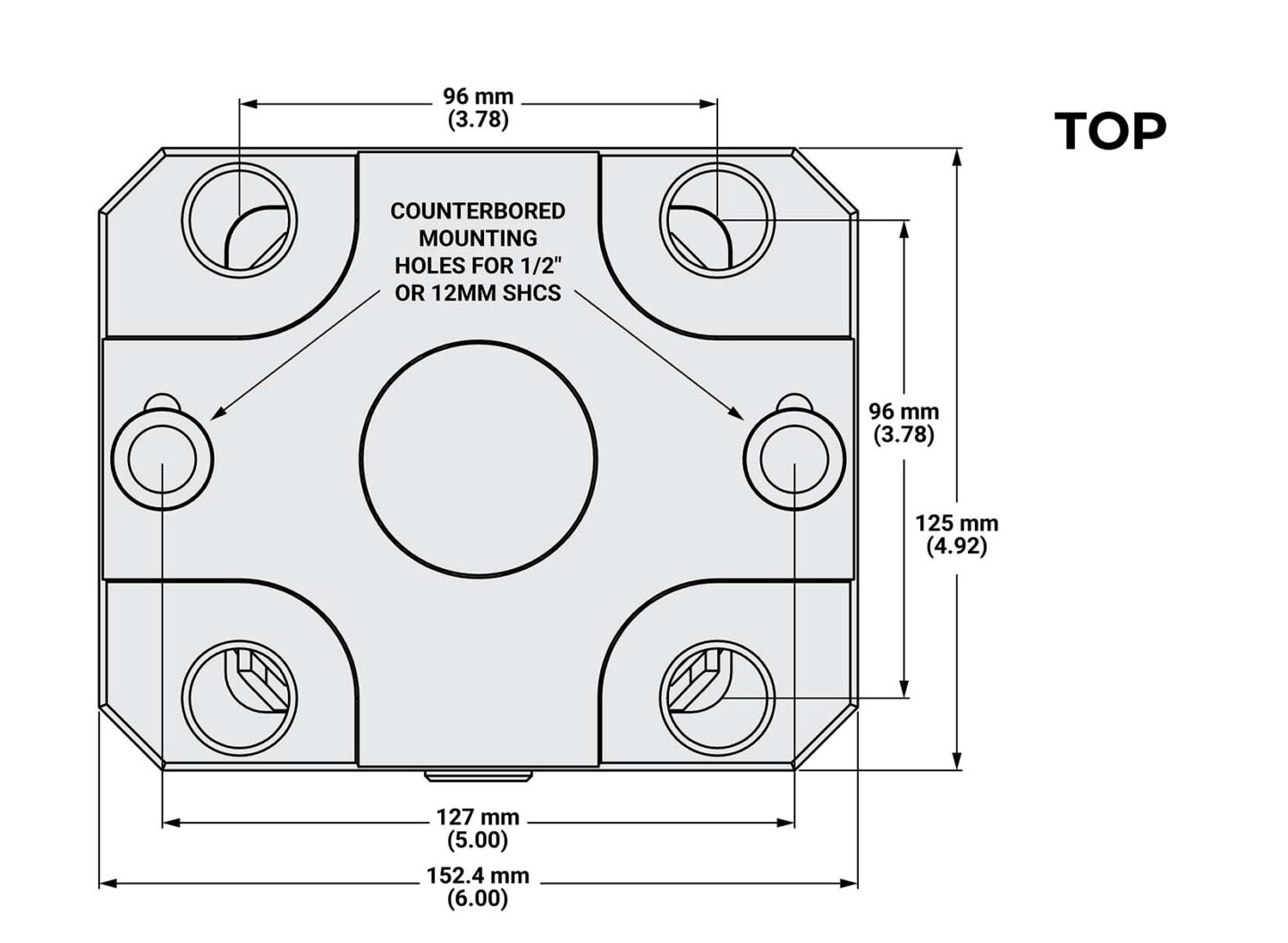

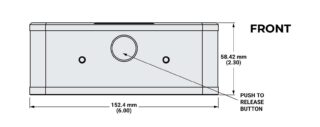

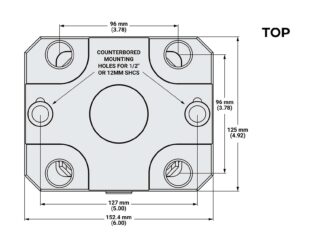

Kurt’s new MPW420 Quick-Release Pallet for 5-Axis Workholding features a single-button release and easy mounting with industry-standard 96 mm pull-stud spacing. The new pallet is designed to be mounted on a machine table with two through bolts and then actuated with the press of a mechanical push button to remove or mount a 5-axis vise on the pallet in the machine. When the button is depressed, the pull-studs are released. A vise with pull studs is automatically locked into place when pressed down onto the pallet. Once the Kurt MPW Pallet is mounted in the machine, it takes only seconds to mount or remove a vise, making setups or multi-vise operations a breeze.

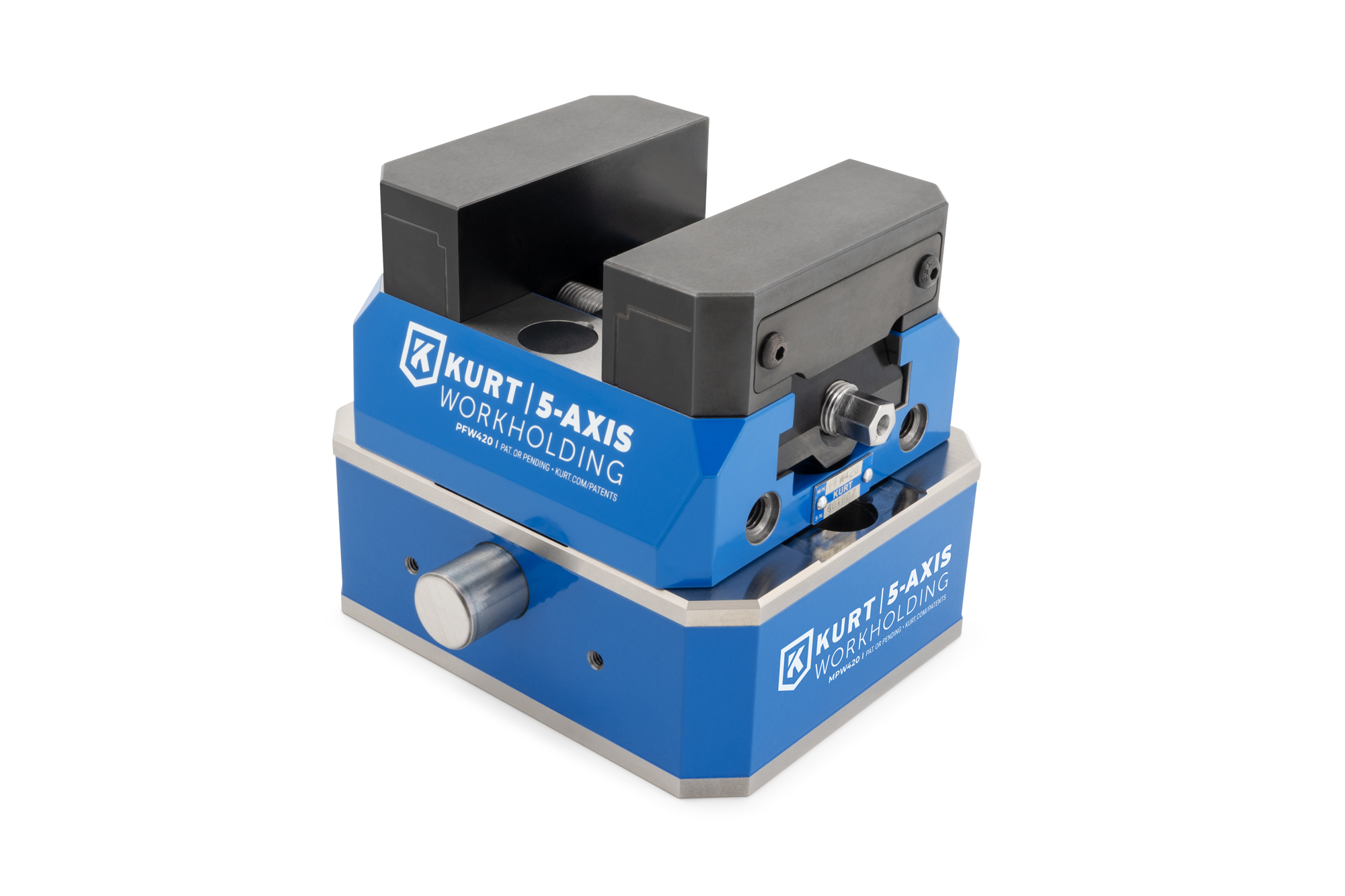

New Kurt PFW420, PFW440 and PFW460 5-axis vise models dock on the pallet using 4 pull studs with 96 mm spacing and offer top-quality design and construction for CNC workholding. Kurt PFW vises have 4-inch wide jaws and come in three sizes with openings between 2.625 and 6.625 inches. The 96 mm universal pull stud spacing also accommodates non-Kurt brand 5-axis vises.
Includes set of 4 pull studs and 3/8″ hex wrench
