Kurt 6″ D-Series Fixture Key Set 11/16 x 9/16 inch – D50-33D
Part No. D50-33D
$48.00

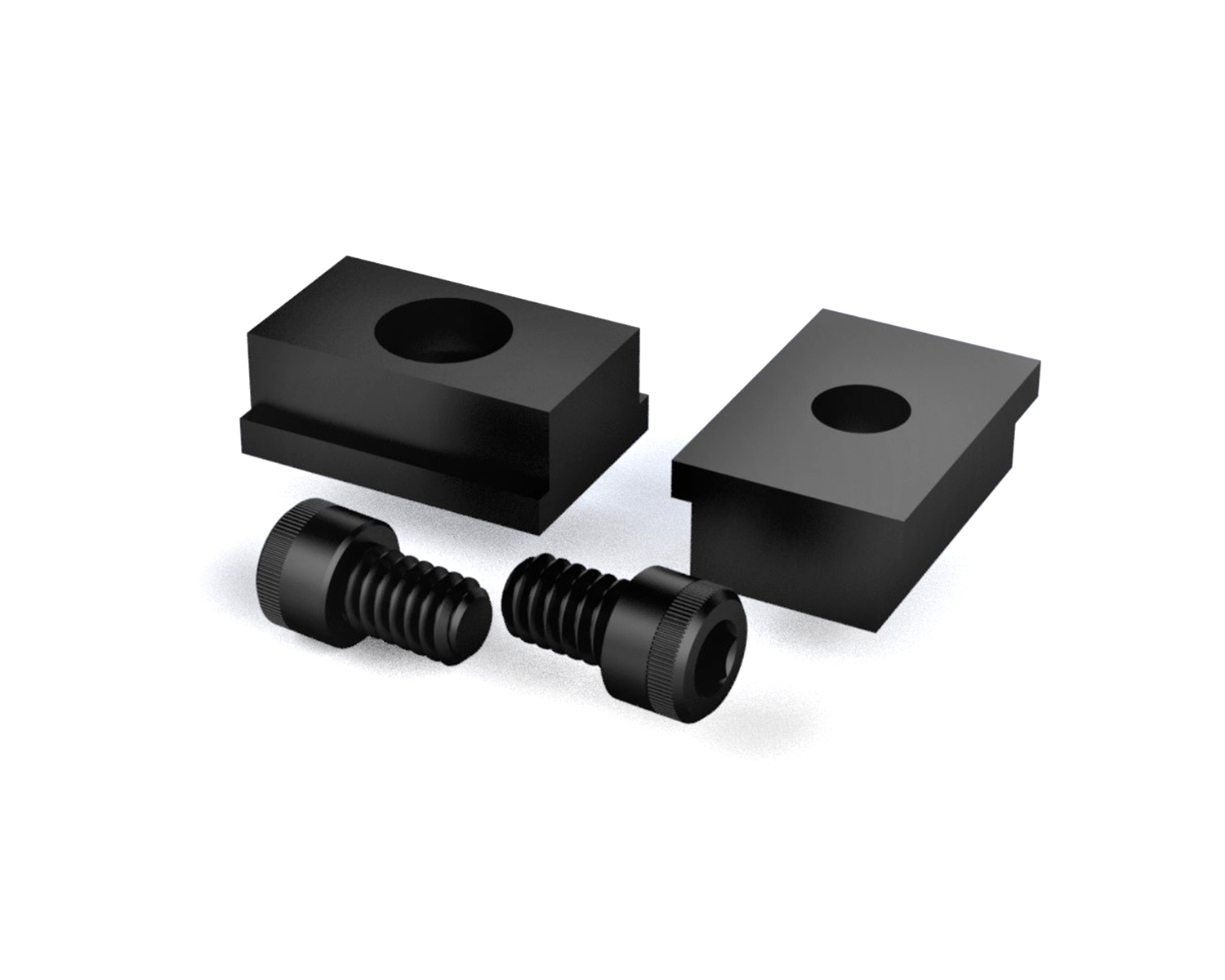

6″ D-Series Keys, Set, 11/16 x 9/16 inch
6″ D-Series Keys fit an 11/16 inch vise keyway and 9/16 inch machine table T-slot.
Description
Description
Hardened vise keys are used to align your Kurt vise to your milling machine table. Step keys are used when the keyway in the vise is different than that of the machine T-slot. Most commonly used with our 6 inch D-Series vise with 11/16 inch keyway slot.
- Keyway slot: 11/16 inch
- Machine T-slot: 9/16 inch
- Sold in pairs
Resources

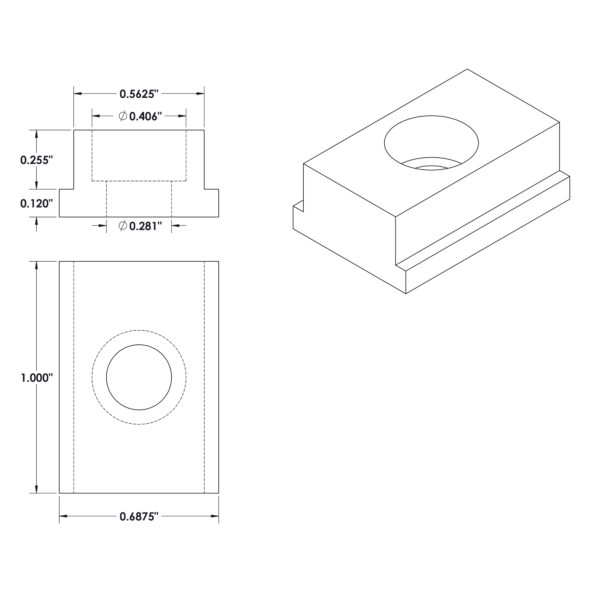

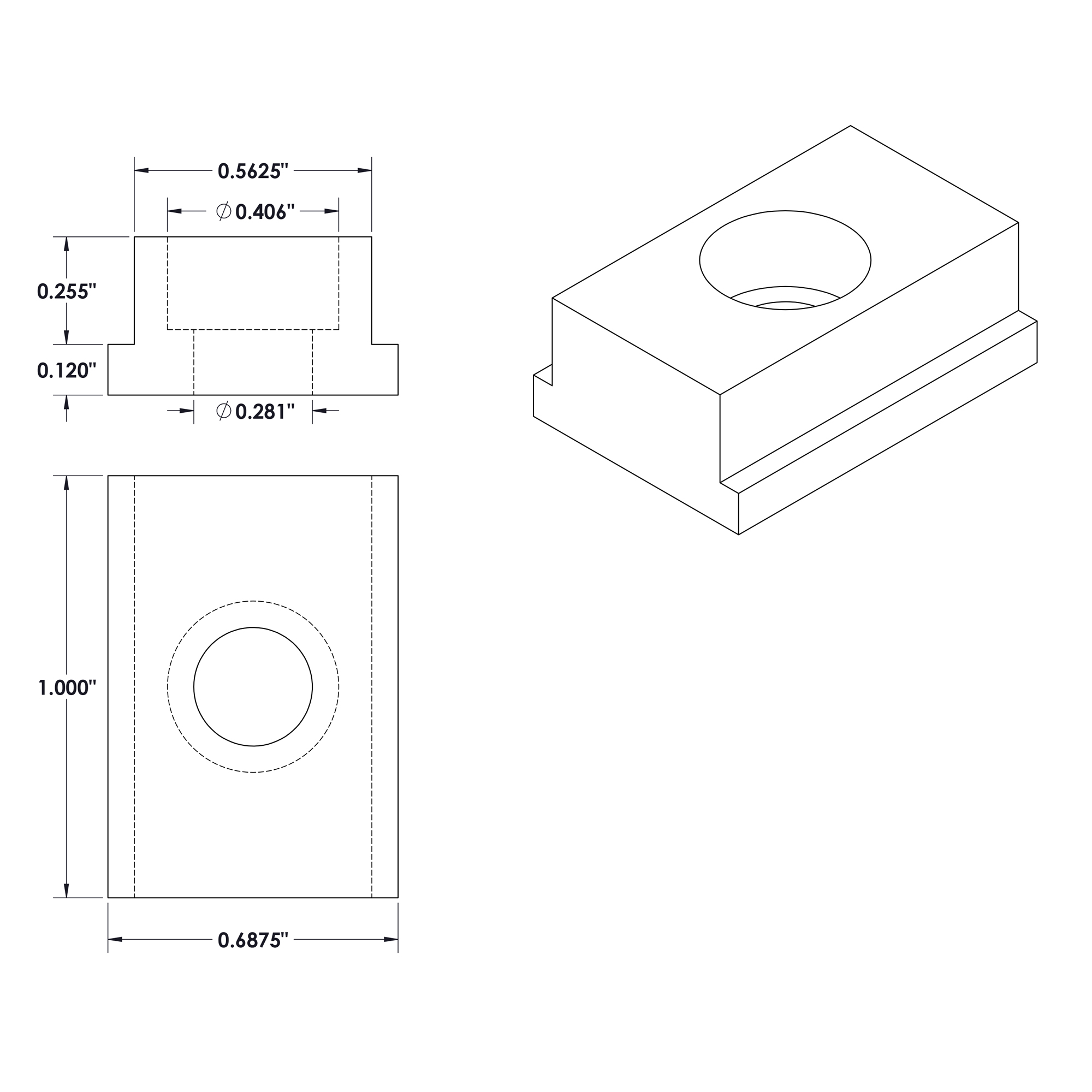

Dimensional Data
Dimensional Data
