Home / Shop / Parts and Accessories / Replacement Parts / Kurt Power Drawbar Replacement Parts / Automatic and Mechanical Drawbar Rods / Kurt Replacement Rod – 600-13-SA
Kurt Replacement Rod – 600-13-SA
Part No. 600-13-SA
$168.00

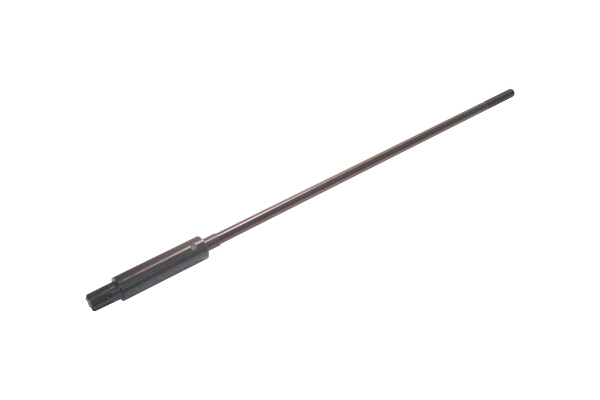

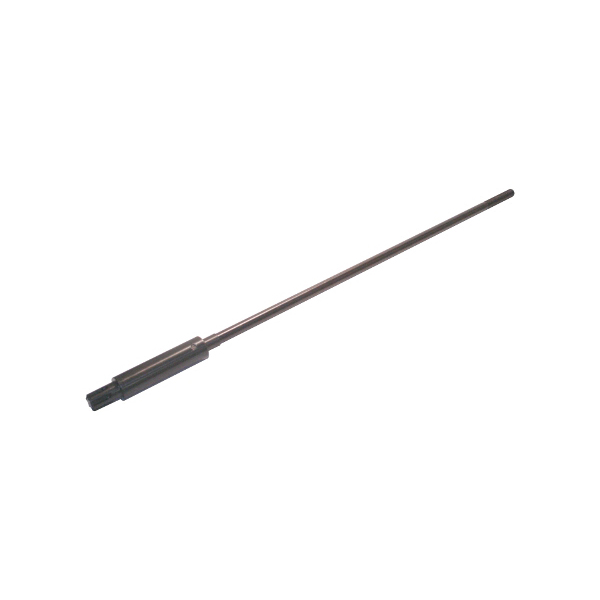

600-13-SA Replacement Rod
Description
Description

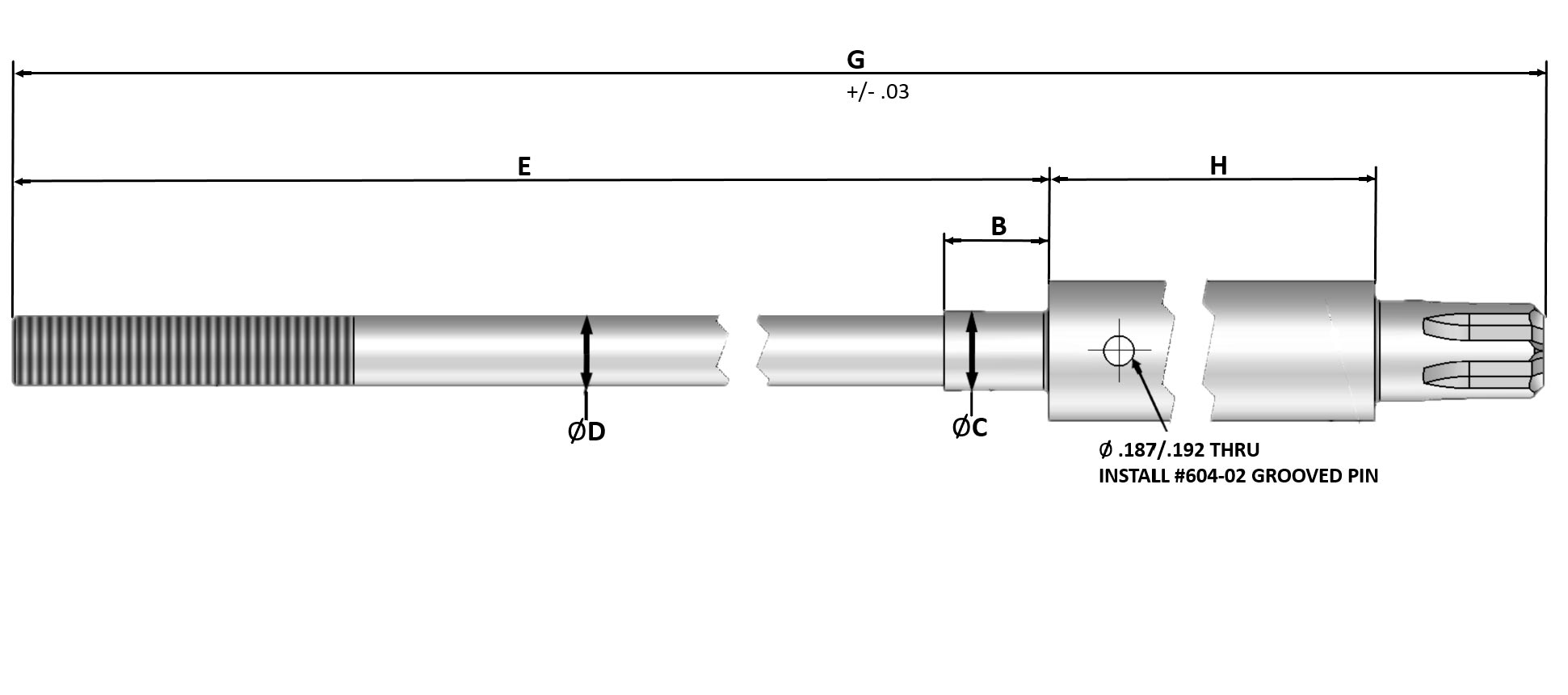

Assembly |
D21193 Drawbar Head |
D21194 Drawbar Rod |
E |
G |
H |
C |
B |
D |
Automatic Assembly |
Mechanical Assembly |
600-01 | 601-01 | 602-01 | 18.450 | 22.90 | 3.400 | 0.490 | 0.650 | 7/16 | BR1000, AL1700 | BR6000 |
600-08 | 601-08 | 602-07 | 18.500 | 23.25 | 3.700 | 0.490 | 0.650 | 7/16 | SM1401 | SM6401 |
600-13 | 601-13 | 602-13 | 18.800 | 25.80 | 5.950 | 0.578 | 0.800 | 7/16 | RL1100 | RL6100 |
600-16 | 601-16 | 602-16 | 18.250 | 22.70 | 3.400 | 0.490 | 0.600 | 7/16 | SH1600 | |
600-17 | 601-17 | 602-16 | 18.250 | 23.70 | 4.400 | 0.490 | 0.600 | 7/16 | SH6600 | |
600-45 | 601-45 | 602-01 | 18.450 | 23.40 | 3.900 | 0.490 | 0.650 | 7/16 | WE2700 | AR6001 |
600-55 | 601-55 | 602-55 | 18.750 | 24.10 | 4.300 | 0.520 | 0.440 | 7/16 | CL3400 | CL8400 |
600-67 | 601-67 | 602-67 | 19.000 | 24.30 | 4.250 | 0.600 | 0.750 | 5/8 | KO2303 |
