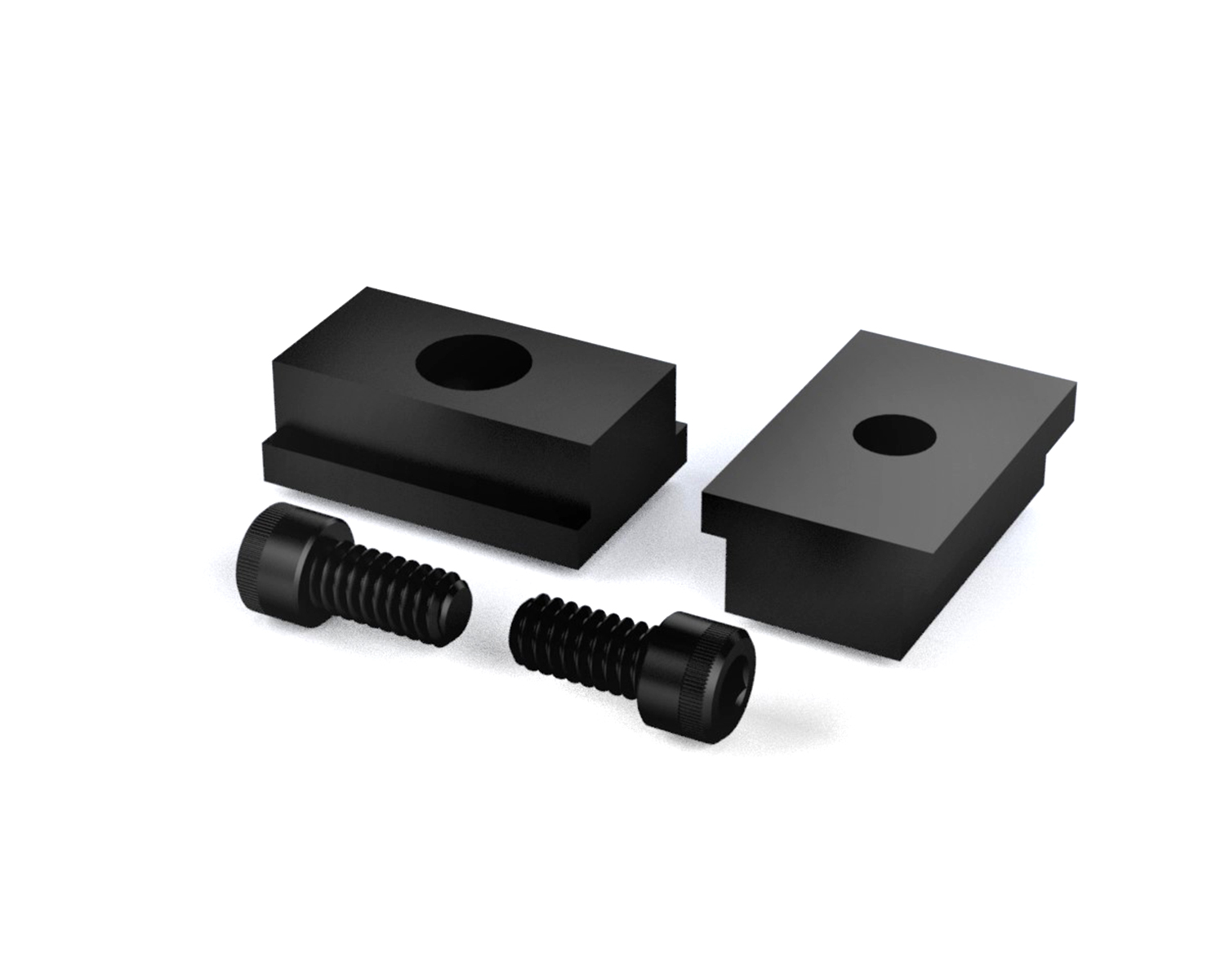

Kurt 8″ D-Series Fixture Key Set 13/16 inch x 16 mm – D80-33M16
Part No. D80-33M16
$75.00
8″ or 10″ D-Series Keys fit a 13/16 inch vise keyway and 16 mm machine table T-slot.
Description
Description
Hardened vise keys are used to align your Kurt vise to your milling machine table. Step keys are used when the keyway in the vise is different than that of the machine T-slot. Most commonly used with our 8 or 10 inch D-Series vise with a 13/16 keyway slot.
- Keyway slot: 13/16 inch
- Machine T-slot: 16 mm
- Sold in pairs
Resources

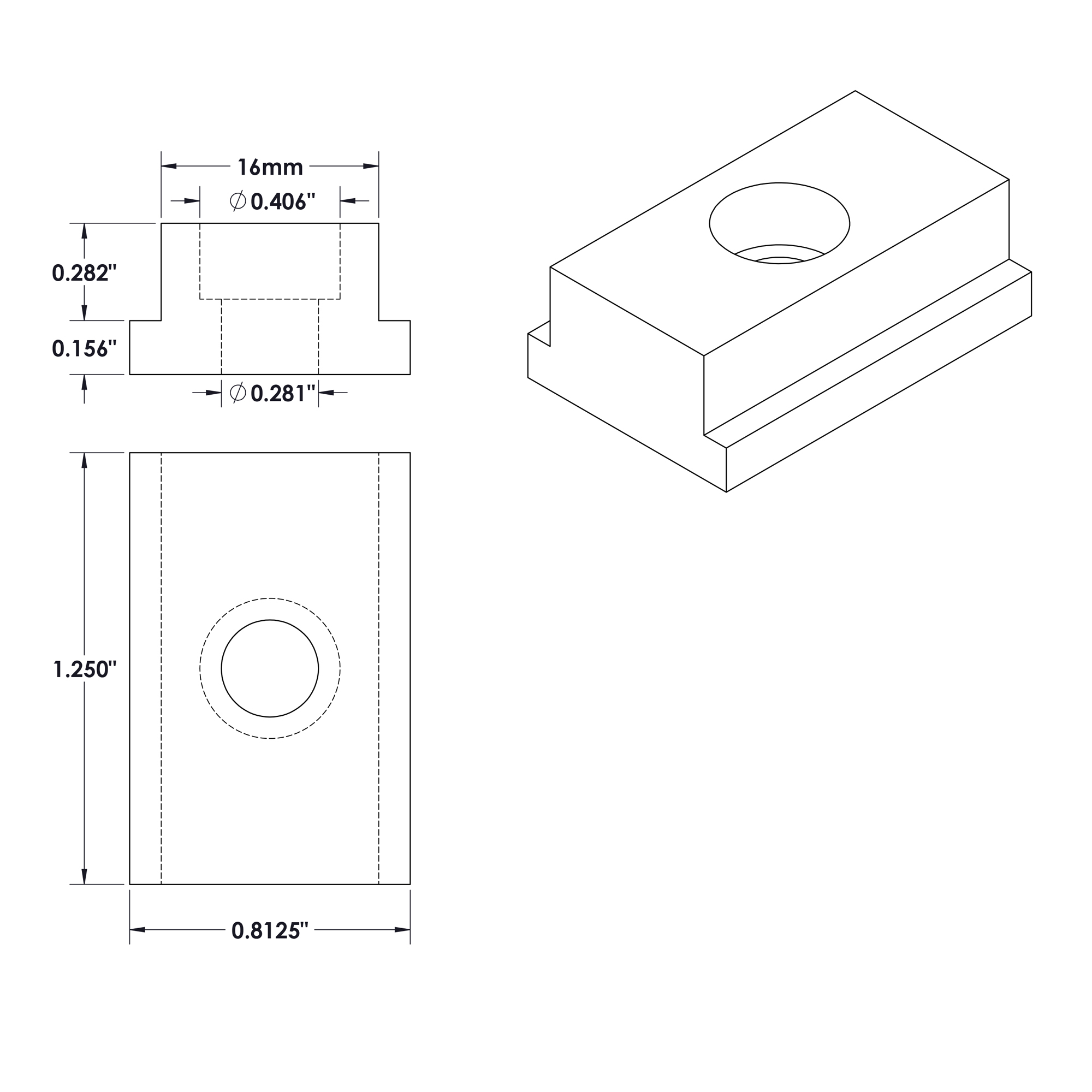

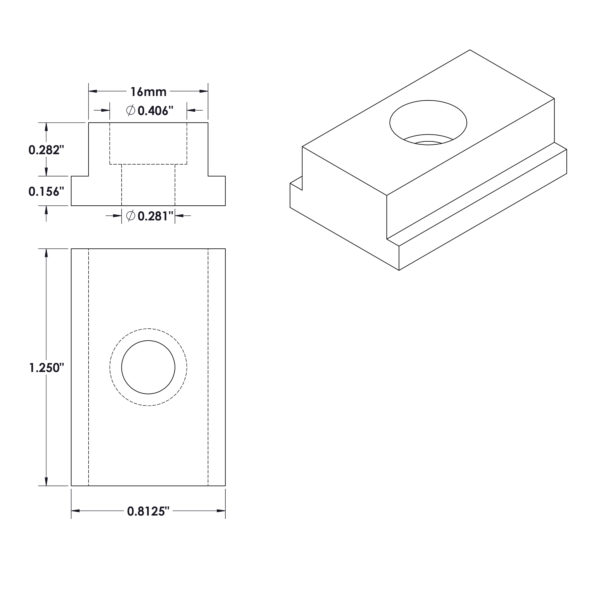

Dimensional Data
