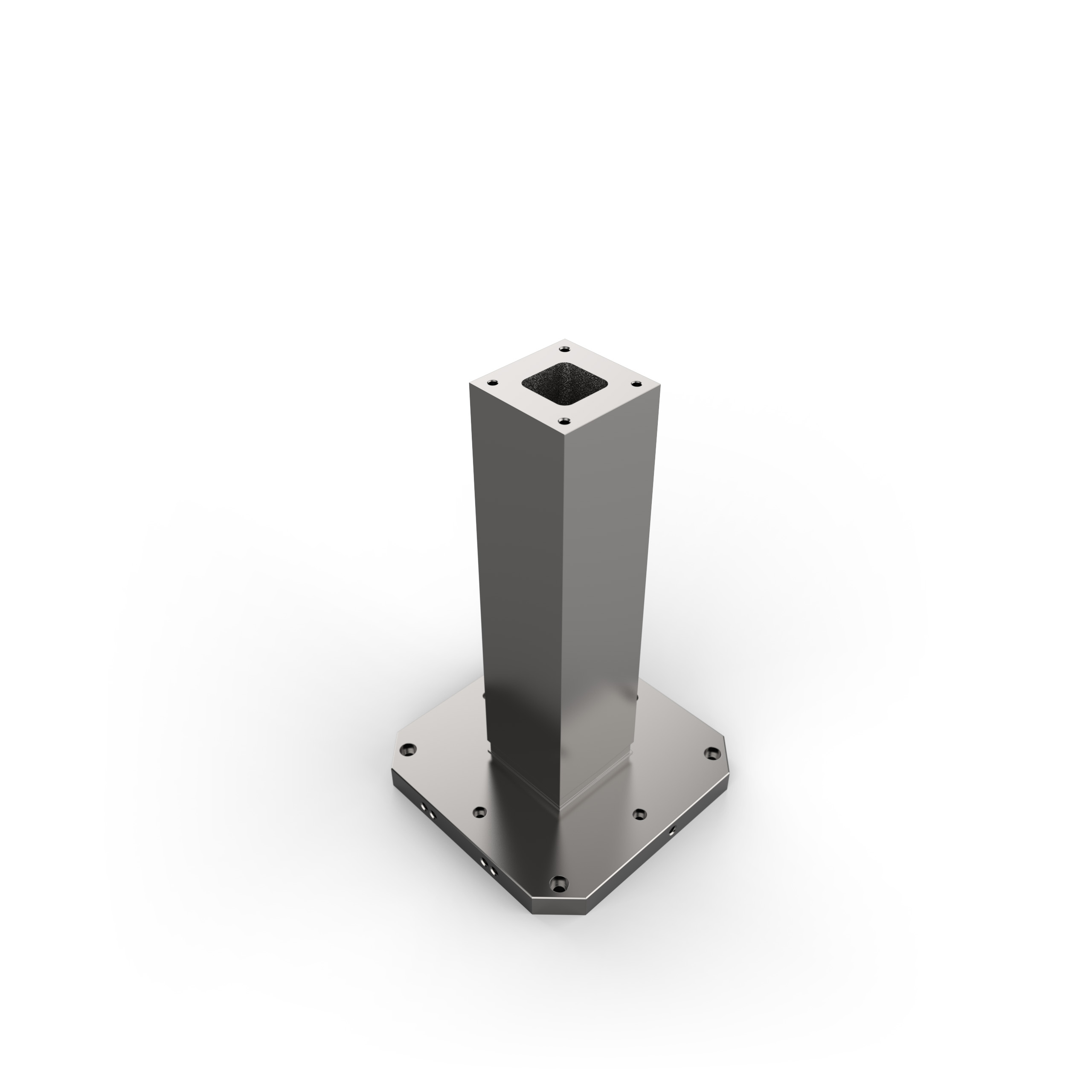

Kurt Cast Iron, 4 face, 400 mm Base – TB4C40606
Part No. TB4C40606
$2,628.00
Cast Iron, 4 face, 400 mm Base
Dimensional Data
Dimensional Data
| Dimension | Inches unless noted |
| A | 400 mm x 400 mm |
| B | 6.00 |
| C | 26.00 |
| D | 1.50 |
| E | 1.50 |
| F | 320 mm |
| G (SHCS) | 5/8" or M16 |
| H | 2.50 |
| J | 12.50 |
| K | 12.50 |
| L | 55 mm |
| M | 75 mm |
| N | 18 mm |
| P | 5/8-11UNC |
| Q (SHCS) | 1/2" or 13 mm |
| Est. Weight | 128 Kgs/282 Lbs |
| Surface Datum A Base Flatness | 0.001 |
| Face Perp. To Base | 0.003 |
| Edge Locator Perp. | 0.0015 |
| Face Dimension | 6.000 ±0.002 |
| Face Locator to Edge Parallelism | 0.002 |
