Description

These vises have minor porosity in the body and/or the movable jaws. This does not effect the functionality or the warranty. ALL SCRATCH AND DENT SALES ARE FINAL.

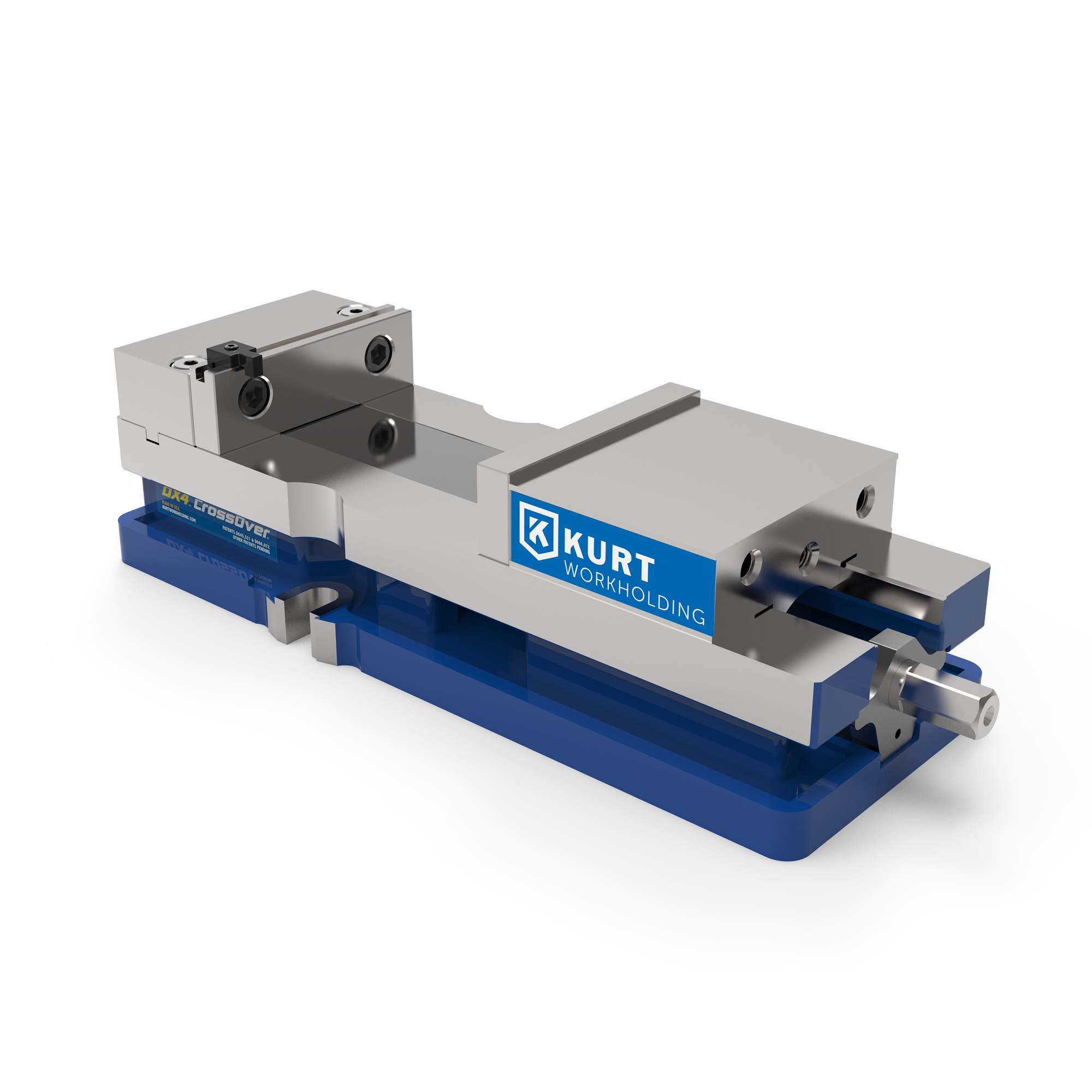

Introducing the Kurt DX4™ CrossOver^® Vise

The evolutionary DX4™ CrossOver® Vise combines all the great features of the world-renowned KURT D40 and 3400V vises, along with new state-of-the-art workholding features. DX4 CrossOver achieves new levels in precision and performance where flatness and parallelism are important and is a better vise than our own D40 in every way we measure a vise. With KURT’S commitment, the DX4 CrossOver is destined to become the go-to-vise for today’s machining applications.

DX4 CrossOver Features

• DX4 CrossOver vise is a combination of AngLock®, Pull-Type and 2 top bolt FEA designed stationary jaw. When combined they create an ultra-unique strategy for a better vise.
• AngLock® design reduces stress on body during clamping
• Pull-type design reduces stress on body during clamping
• Hardened vise bed/jaw plates
• Semi-hard steel screw
• 80,000 psi ductile iron body, nut and movable jaw
• 6.5″ opening
• New wider 2 bolt stationary design fastens from the top
• Bolts & locates on 40mm, 50mm and 2″ grid patterns
• Accepts sine keys for alignment (not included)
• Chip evacuation straight through the body
• Screw support held in place with snap rings
• Groove Lock® jaw plate and workstop (Included)
• New brush seal design makes it easier to replace
• Includes chip guard
• Powder coat paint is long lasting and durable
• Matching of the bed heights or keyway to stationary jaw (additional cost)
• Lifetime Iron Clad Warranty

DX4 CrossOver features comparison to D40 Vise

• DX4 is a replacement vise to D40 vise
• Larger opening (6.5″ versus 3.75″)
• Same bed height as D40
• Narrower body style than D40 and allows more vises on machine table
• Updated proven bearing pack shared with the 3400 series
• Same distance from the keyway to stationary as D40

DX4 CrossOver Mounting

With our commitment and Lifetime Ironclad Warranty, the DX6 CrossOver vise is destined to become the go-to vise for all your machining applications. Order yours today, or contact Kurt Workholding to learn more.

Resources

• Kurt DX4/DX4R Manual  (pdf)

Dimensional Data

Clamping Force Pounds
