Description

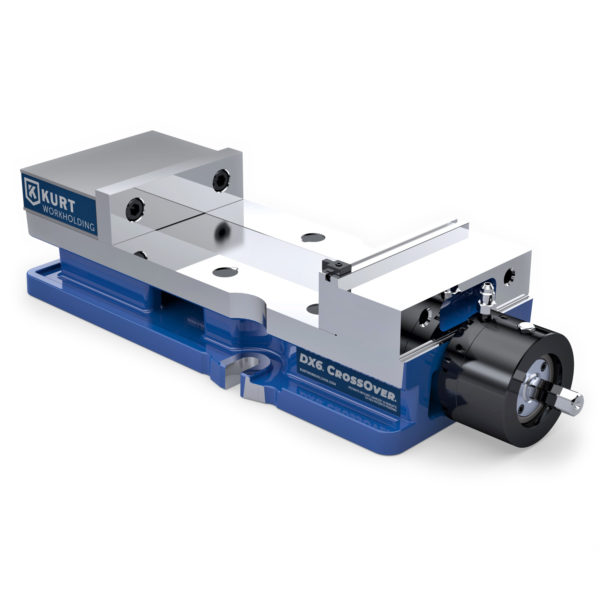

The Kurt DX6HR reverse vise is part of our new automated DX vise series. The DX6HR shares many of the same great features of Kurt’s DX6 CrossOver® vise with the addition of hydraulic actuation—allowing the vise to open and close using a Kurt pump system and a reverse screw. Kurt pumps can make our hydraulic vise models actuate manually with a lever or foot-switch or operate within a fully automated robotic workflow as part of an automated machining cell.

Features a reverse screw design, a cast-on stationary jaw for less deflection—and a more stable vise body when clamping, the same bed height and keyway to the stationary jaw face as the D688, a redesigned lighter-weight nut and a new brush seal design. The bearing pack is larger, stronger, and more durable than our other designs, and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance.

Hydraulic models come with single and double acting actuation that only requires switching out a brass fitting with the supplied hydraulic fitting.

• Single acting: hydraulic clamping and spring return for unclamping
• Double acting: hydraulic to clamp and unclamp for faster, more precise setup

Hydraulic unit has 1/4″ stroke.

Features Kurt’s Lifetime Ironclad Warranty. Metric versions available – call us.

For more information, please check out our mounting page or sine keys page.

Mounting Instructions

Resources

• Kurt DX6H/DX6HR Manual  (pdf)

Dimensional Data

Clamping Force Pounds
