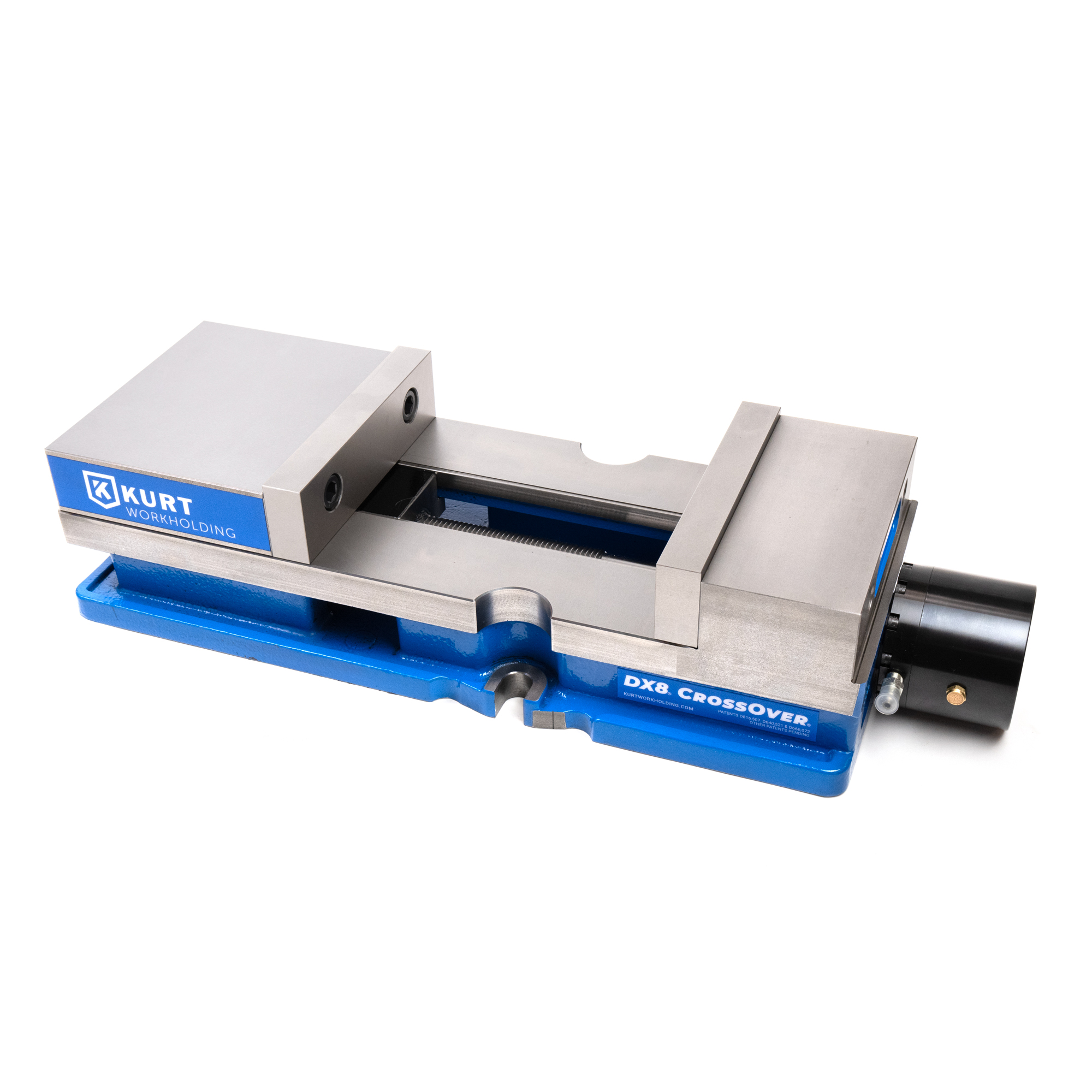

Kurt DX8H Hydraulic Vise – DX8H
Part No. DX8H
$2,784.00
Combines all the great features of our DX8 vises with hydraulic actuation. Features a 8″ jaw with a 10.0″ opening.
Description
Description
The Kurt DX8H is our newest addition to the automated DX vise series. The DX8H shares many of the same great features of Kurt’s DX8 CrossOver® vise with the addition of hydraulic actuation—allowing the vise to open and close using a Kurt pump system. Kurt pumps can make our hydraulic vise models actuate manually with a lever or foot-switch or operate within a fully automated robotic workflow as part of an automated machining cell.
Features a cast-on stationary jaw for less deflection—and a more stable vise body when clamping, 8-inch wide jaws with a 10-inch opening and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance. Kurt hydraulic models come with single and double acting actuation that only requires switching out a brass fitting with the supplied hydraulic fitting.
- Single acting: hydraulic clamping and spring return for unclamping
- Double acting: hydraulic to clamp and unclamp for faster, more precise setup
The Kurt hydraulic unit has 1/4″ stroke.
Features Kurt’s Lifetime Ironclad Warranty.

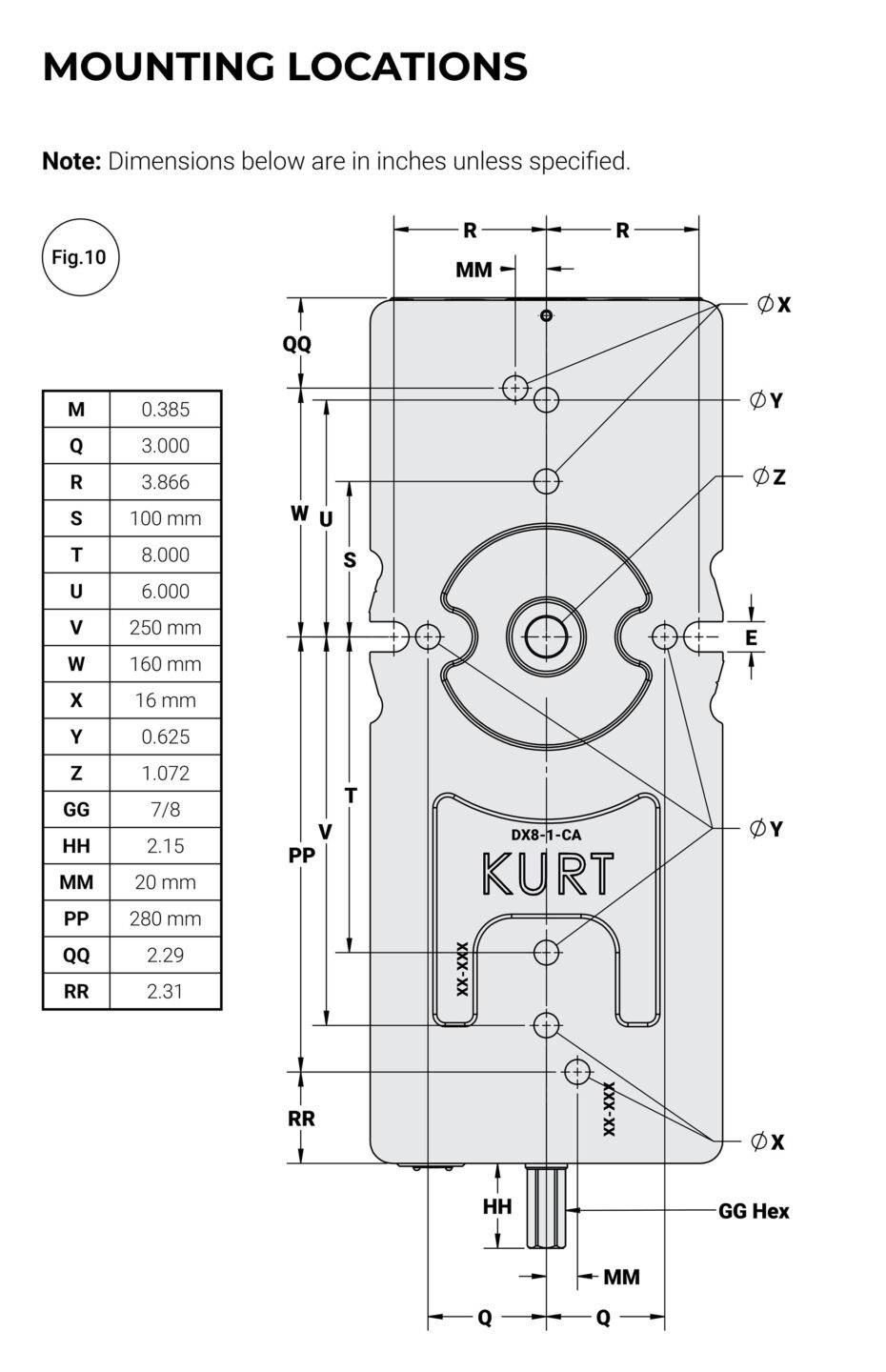

For mounting information, please check out our mounting page or sine keys page.
Mounting Instructions
Resources
Resources

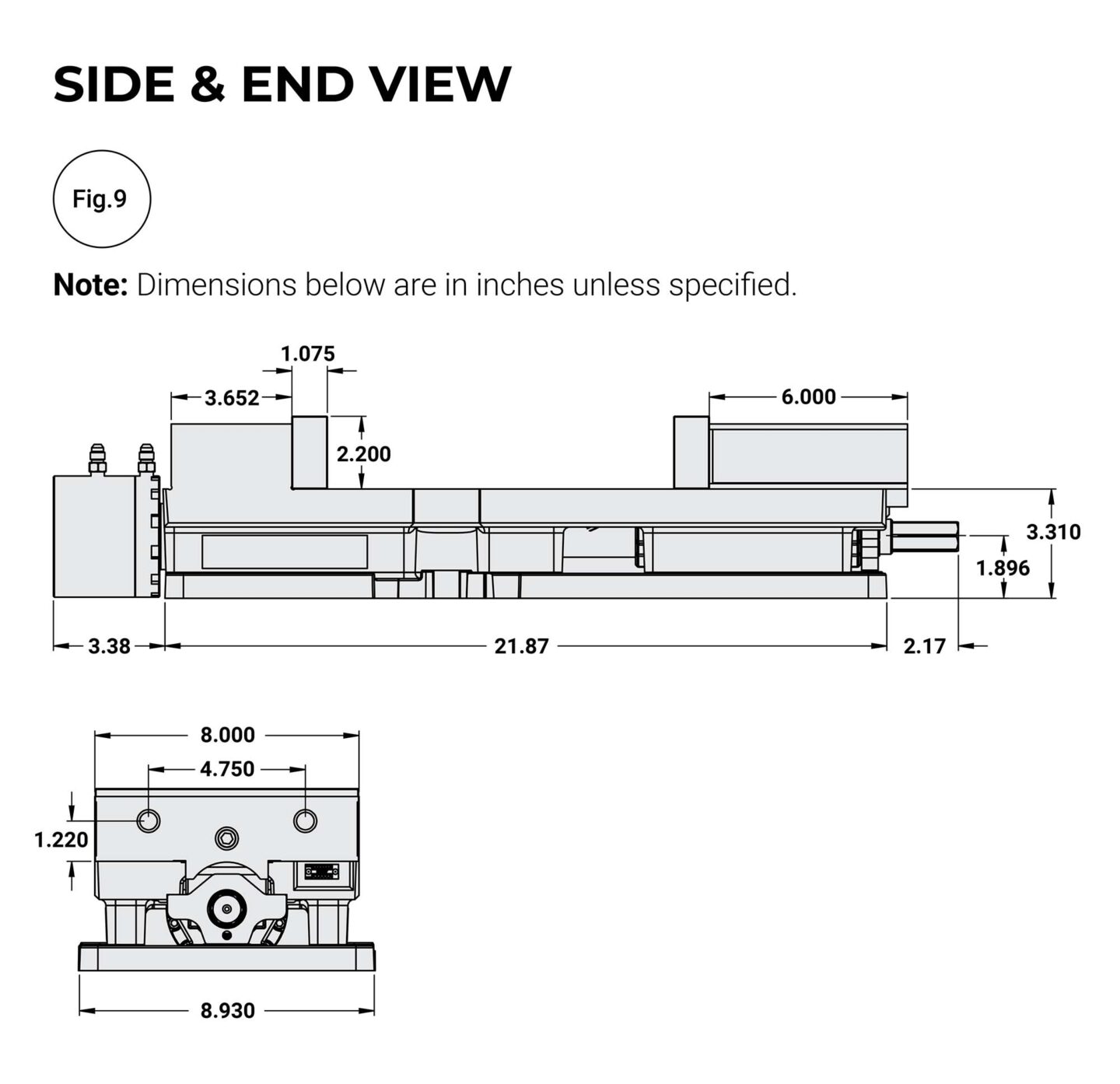

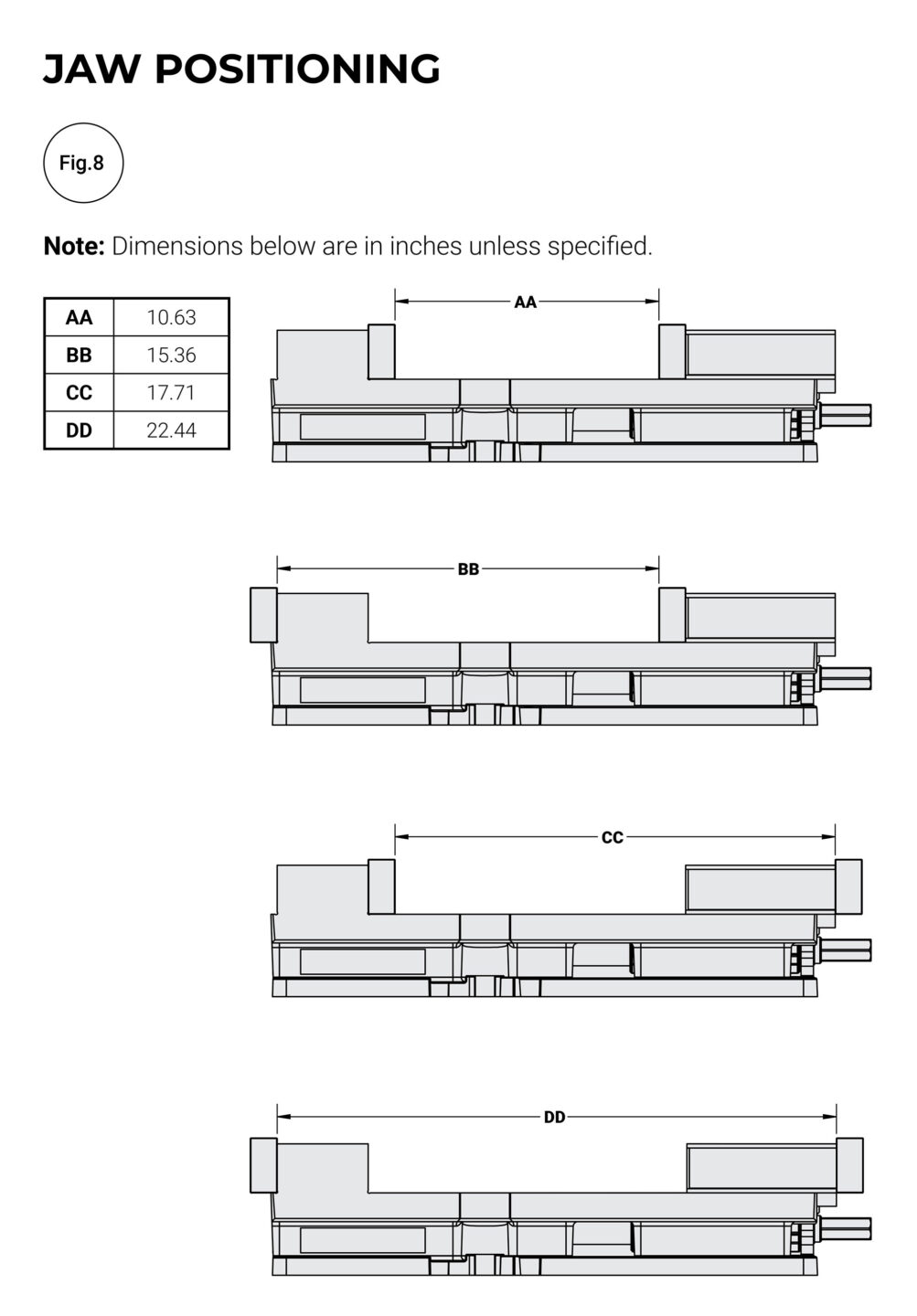

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 600 |
| 20 | 1,000 |
| 30 | 1,600 |
| 40 | 2,000 |
| 50 | 2,600 |
| 60 | 3,450 |
| 70 | 4,050 |
| 80 | 5,100 |
| 90 | 6,150 |
| 100 | 6,550 |
| Hydraulic PSI | Force in lbs. |
| 500 | 1,500 |
| 1,000 | 3,000 |
| 1,500 | 4,500 |
| 2,000 | 6,000 |
| 2,500 | 7,500 |
| 3,000 | 9,000 |
| 3,200 | 11,000 |
