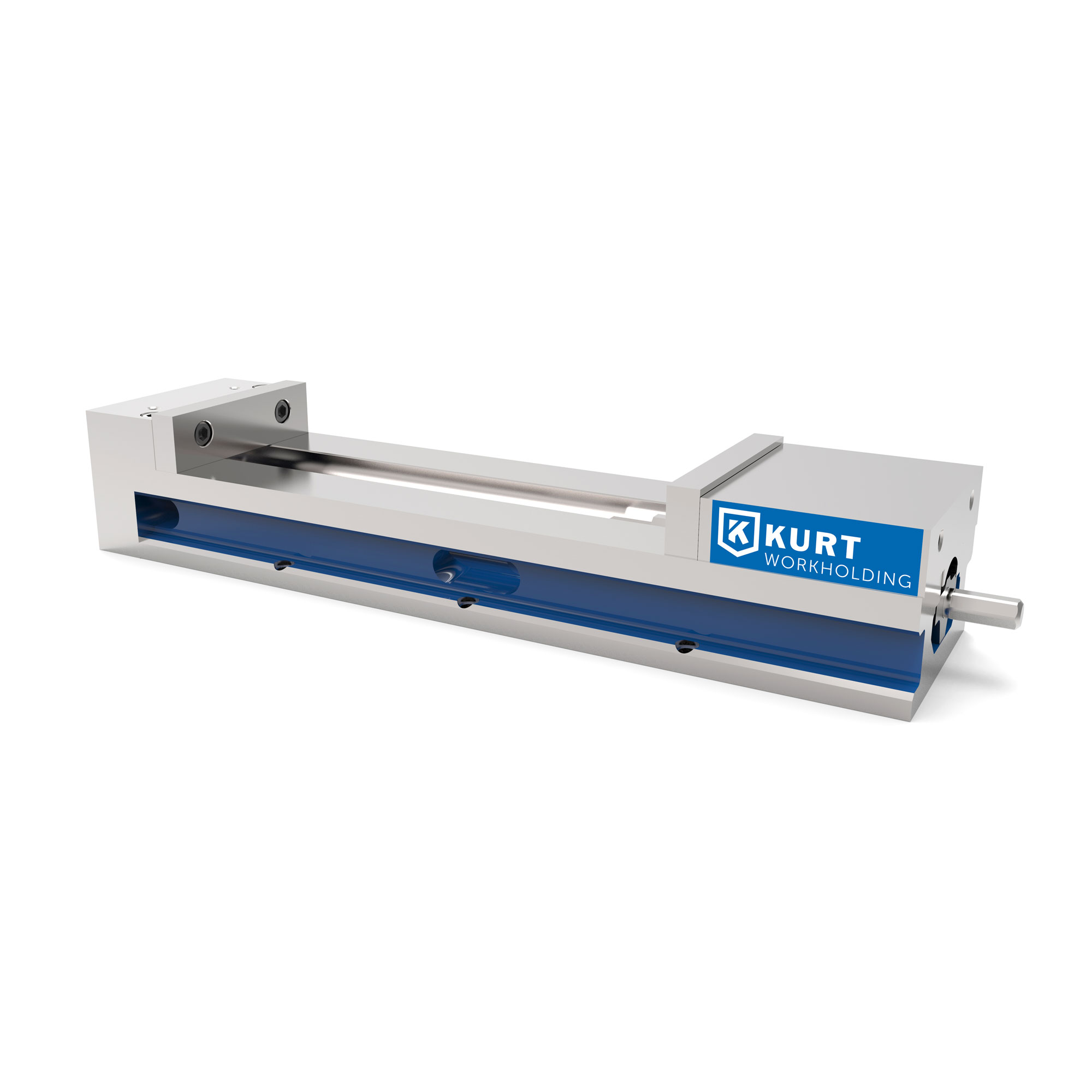

Kurt Extra Capacity Manual Vise, 8″ – XL8

Part No. XL8

$4,990.00

Kurt Industrial Products is an industry leading provider of premium quality 8″ added capacity manual vises for your industrial vise workholding needs. Contact us today for more information regarding our XL added capacity vises or request a quote for an in-depth price analysis.

Description

Description

Kurt XL vises are designed for the clamping of extremely large parts for both die and CNC applications. The jaw openings provide up to 28.765″ of versatile jaw opening space. These precise locking vises are ideal for high horsepower “hogging out” operations. Kurt XL vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.

XL8 Features

  • Precision clamping force up to 20,376 Lbs.
  • Jaw lift reduction due to AngLock design.
  • Ductile iron body provides up to 80,000 lb.
  • 8″ jaw widths with jaw openings from 0″-21″ with a maximum of 28.765″ (in the outside jaw positions).
  • “Pull-Type” clamping provides high precision and repeatability.
  • Excellent for high horsepower “hogging out” applications.
  • Manual and hydraulic models available.
  • Hydraulic feature a 1/4″ stroke.
  • Available internal hex screw.

Resources

Dimensional Data

Dimensional Data

Kurt XL8 Jaw Positioning
Kurt XL8 Mounting Locations
Kurt XL8 Side and End View

Clamping Force Pounds

Clamping Force Pounds

Torque Ft-Lbs Force in lbs.
20 2,904
40 5,664
60 7,872
80 10,824
100 13,848
120 16,632
140 19,008
160 20,376

Replacement Parts

Replacement Parts

XL8 Replacement Parts
