Description

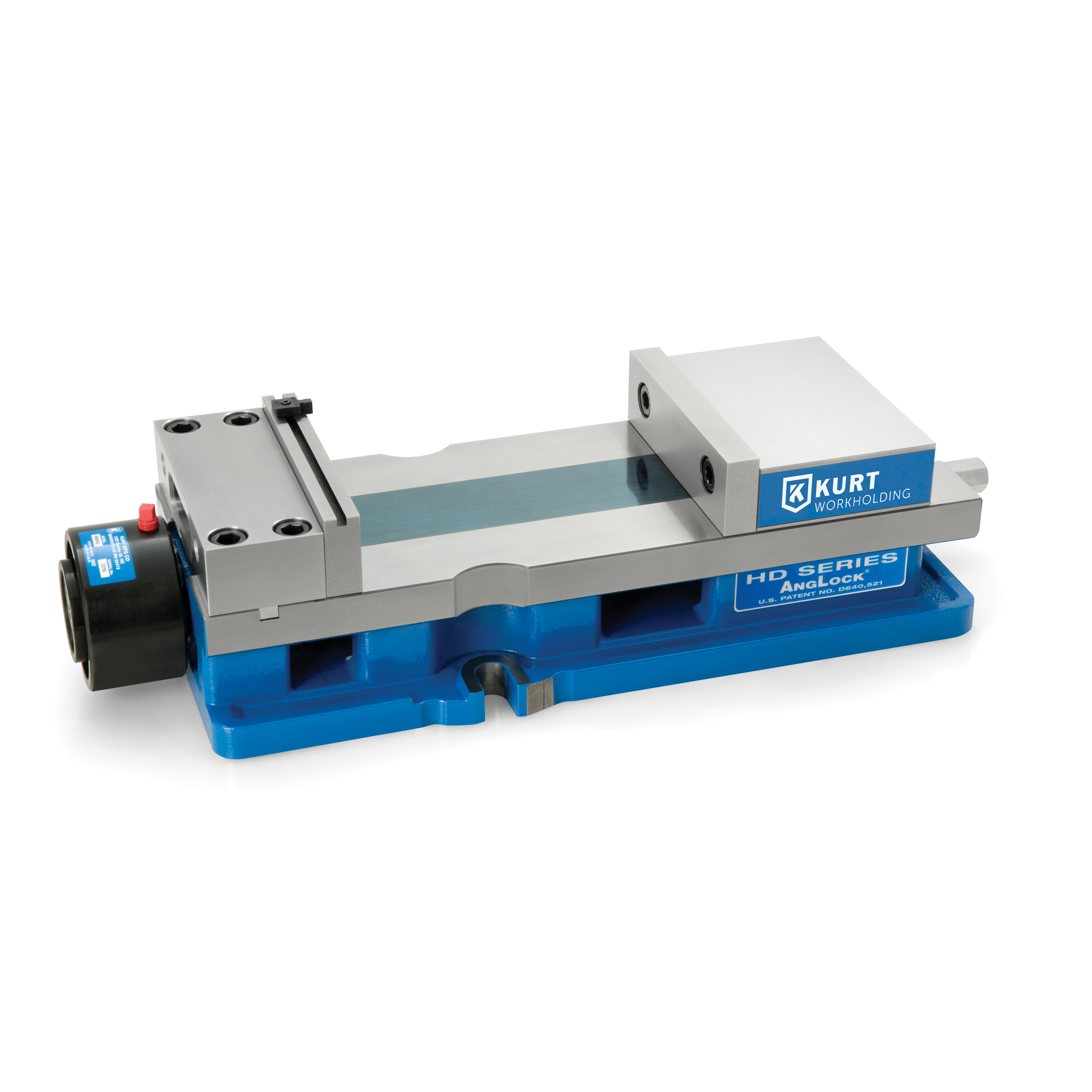

HDH690 Vise Features

• A full 9″ opening between jaws when using standard jaw plates
• Wider more stable stationary jaw equals less deflection
• Four bolt stationary jaw bolts from the top which reduces stress in the body so the vise stays flatter after assembly
• No need to remove the vise from the table to clean
• Narrower body allows for more vises in the work envelope
• Taller body design equals less deflection under clamping load
• Bolts and locates directly on standard grid plates: 40mm, 50mm or 2″

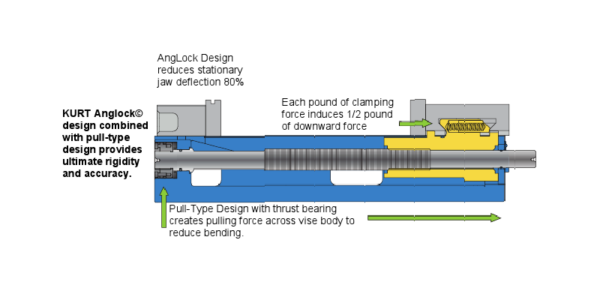

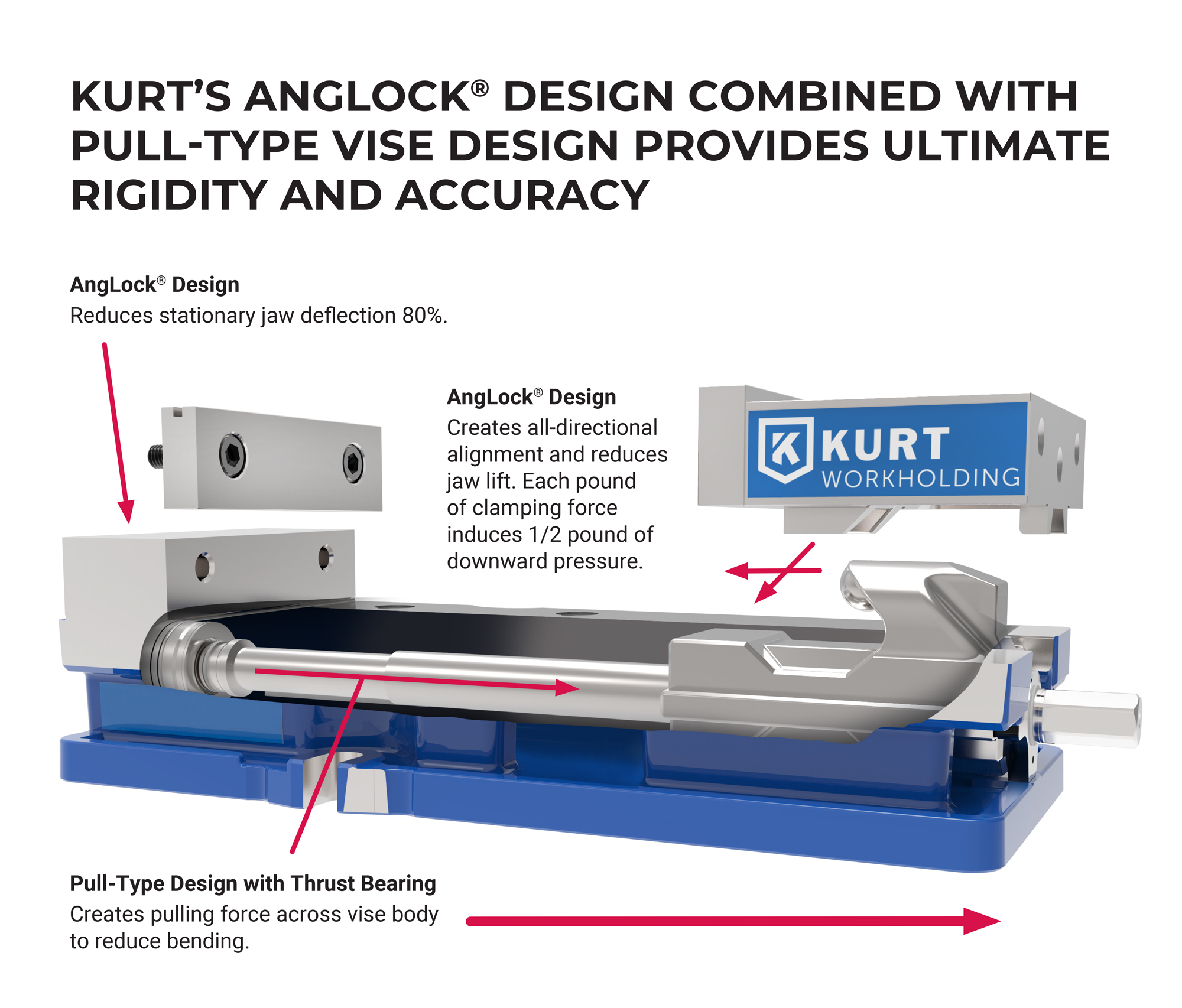

• “Pull-type” design reduces stress in the body which results in more accurate clamping
• Quick change movable jaw, the HD platform movable jaw allows for quick change and carvability to hold that odd shaped part
• GrooveLock® workstop included
• Uses sine keys for alignment
• Swivel base available, Part #D50-4-SA
• Body height matched ±0.0005″
• Hydraulic units feature a 1/4″ stroke
• Ship weight approx. 80lbs

Mounting Instructions

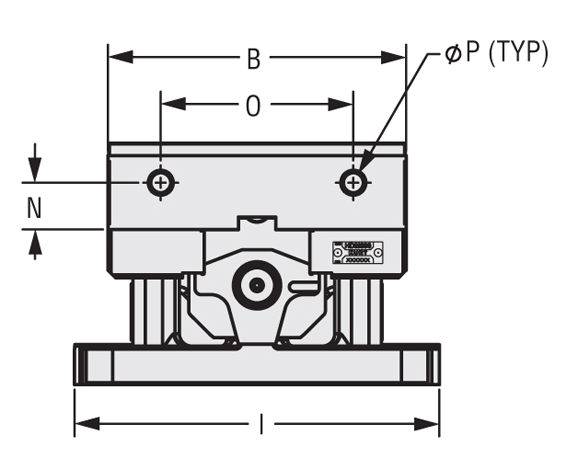

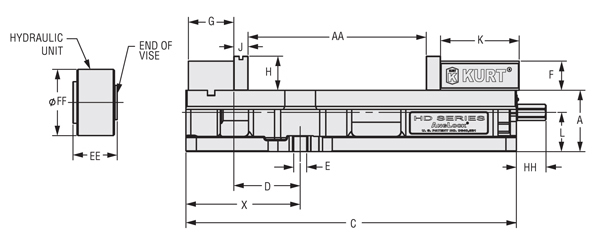

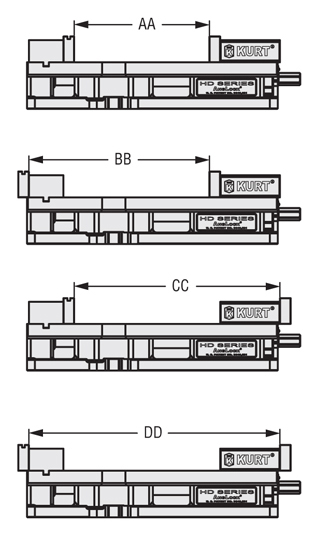

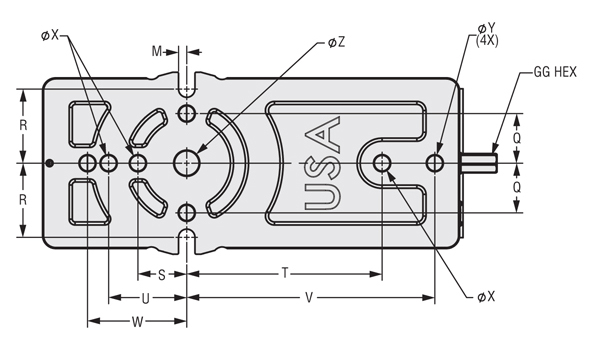

Dimensional Data

Clamping Force Pounds
