Description

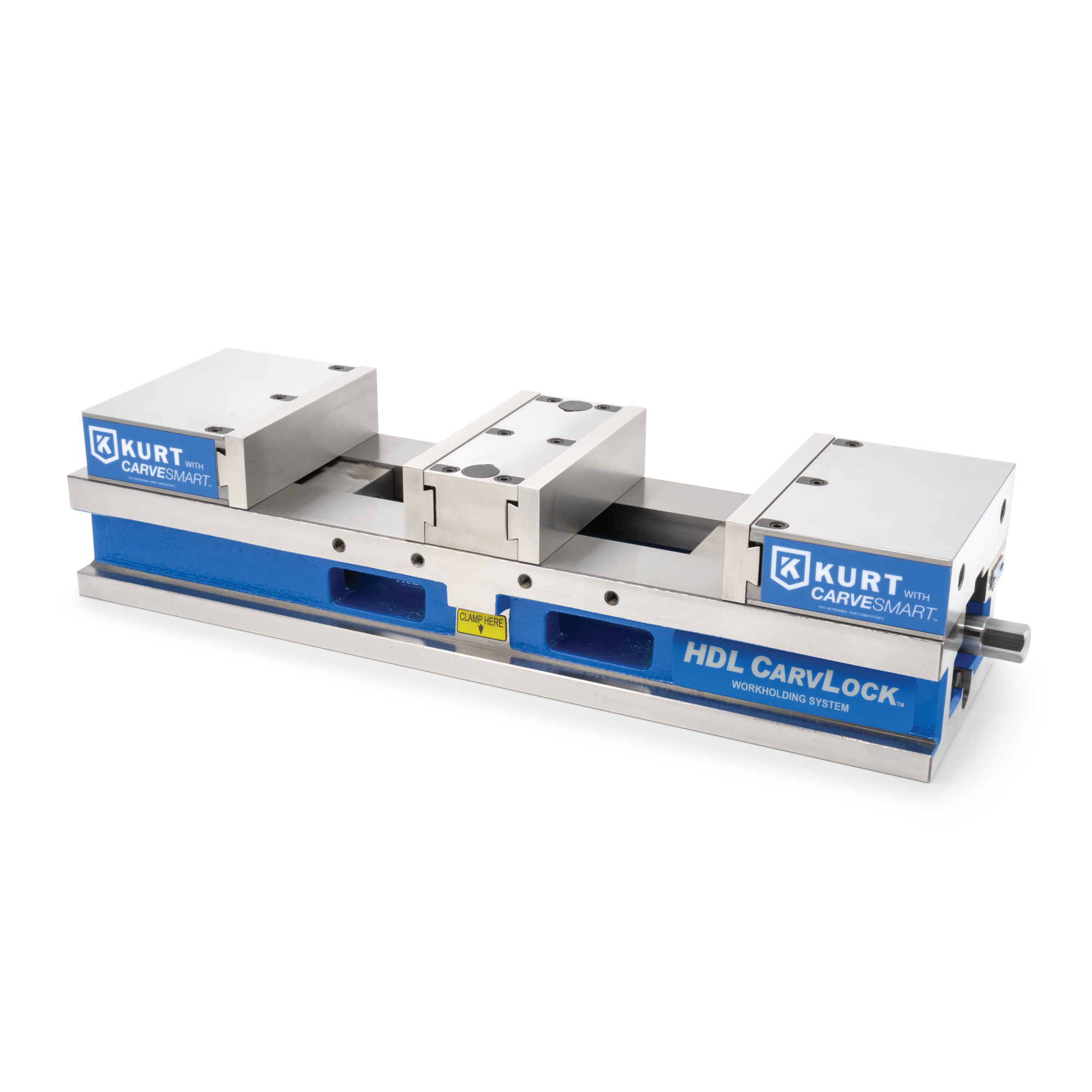

The new HDL6 CarveSmart Upgrade Kit replaces an HDL6 vise’s internals and jaws with a TL6-3-SA screw and nut assembly and CarveSmart quick-change dovetailed jaws. Fast vise tear down and cleaning along with quick, accurate, setups, changeovers and  jaw swaps are just an upgrade away. In addition to the CarveSmart stationary and movable jaws, the kit brings several Kurt TriLock Vise features to an HDL6, including quick double-station to small-single station vise conversions. Shops with inventories of jaw plates with cap screws can still use them by rotating the CarveSmart movable jaws 180 degrees.

Benefits:

• Replaces HDL6 screw/nut assembly with the TL6-3-SA Screw and Nut Assembly
• Includes 2 CarveSmart movable jaws and 1 stationary jaw
• An easy-to-clean and service upgrade for the HDL6 vise
• Eliminates HDL6 screw/nut clutch assembly
• More part-holding options with multiple CarveSmart dovetailed 6-inch jaw options

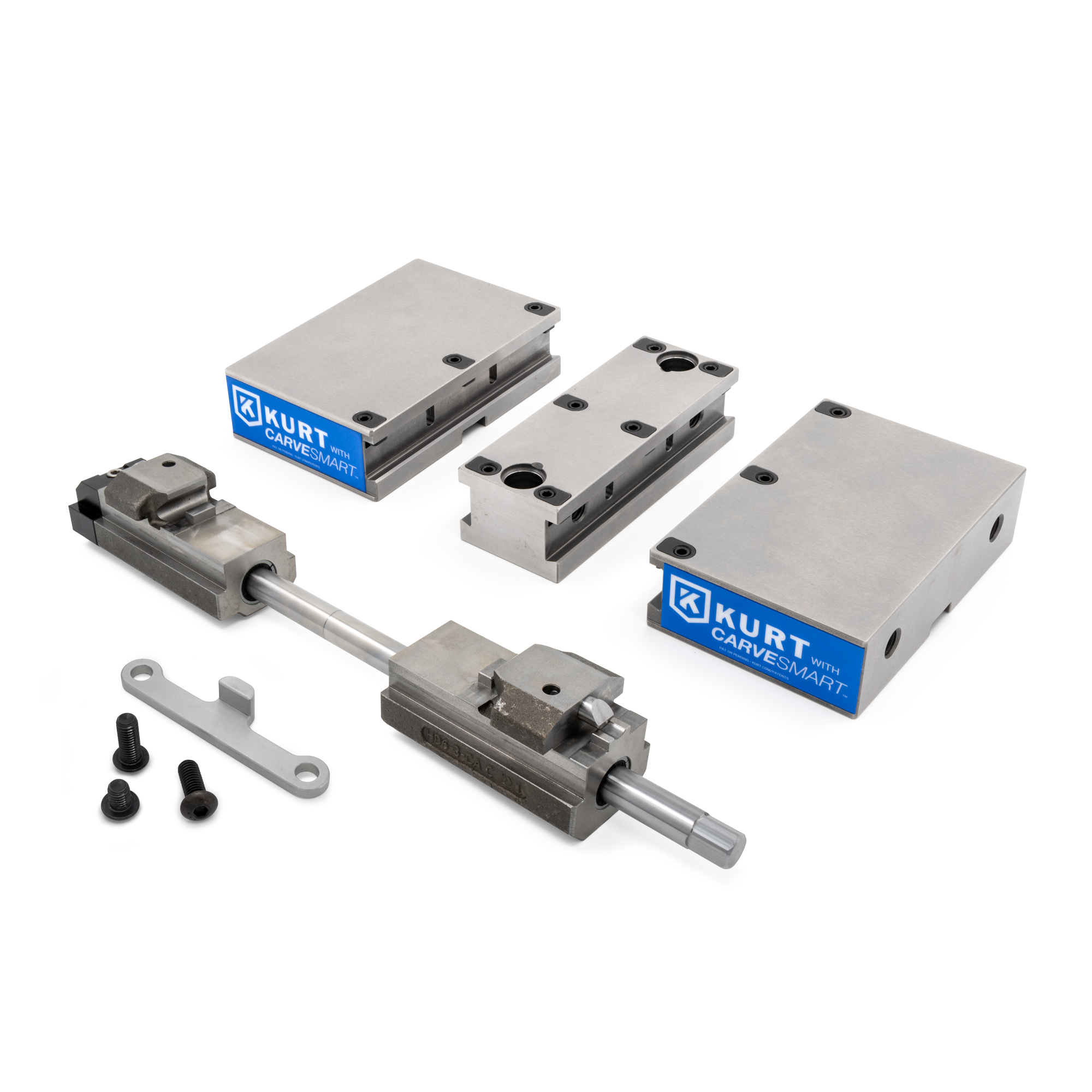

Upgrade Kit Includes:

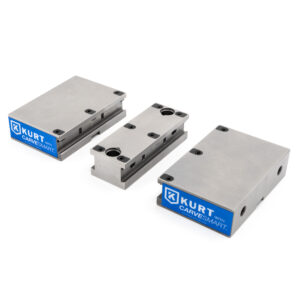

• 2 – CarveSmart Movable Jaws – TL6CS-2-SA
• 1 – CarveSmart Stationary Jaw – TL6CS-6-SA

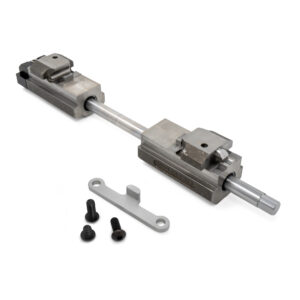

• 1 – TL6 Nut and Screw Assembly – TL6-3-SA
• 1 – Screw and Nut Retaining Bracket – HDL6-229
• Mounting hardware
