Kurt Hydraulic Tower w/ Cast Jaws, 400 mm Base, 6″ – CTHDHM644C
Part No. CTHDHM644C
$17,405.00
Hydraulic Tower w/ Cast Jaws, 400 mm Base, 6″

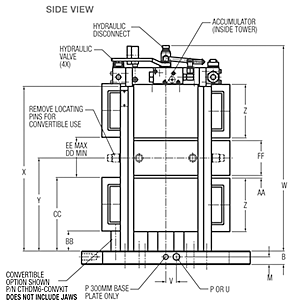

Dimensional Data
Dimensional Data
| Inch | MM | |
| A | 15.748 | 400.00 |
| B | 1.250 | 31.75 |
| C | 1.969 | 50.00 |
| D | 8.500 | 215.90 |
| E | 6.000 | 152.40 |
| F | 6.250 | 158.75 |
| G | 12.500 | 317.50 |
| H | 6.299 | 160.00 |
| J | 12.598 | 320.00 |
| K | M16 | M16 |
| L | M12 | M12 |
| M | 0.709 | 18.00 |
| Q | 2.165 | 55.00 |
| R | 4.331 | 110.00 |
| S | 2.953 | 75.00 |
| T | 5.906 | 150.00 |
| U | M16 X 2.0 | M16 X 2.0 |
| V | 0.984 | 25.00 |
| W | 19.18 | 487.17 |
| X | 15.375 | 390.52 |
| Y | 8.688 | 220.68 |
| Z | 5.000 | 127.00 |
| AA | 0.250 | 6.35 |
| BB | 1.875 | 47.625 |
| CC | 6.875 | 174.625 |
| DD | 3.250 | 82.55 |
| EE | 3.750 | 95.25 |
| FF | 3.25 | 82.55 |
| Approx. Ship weight w/ jaw sets | 375 Lbs | 170.1 Kgs |
