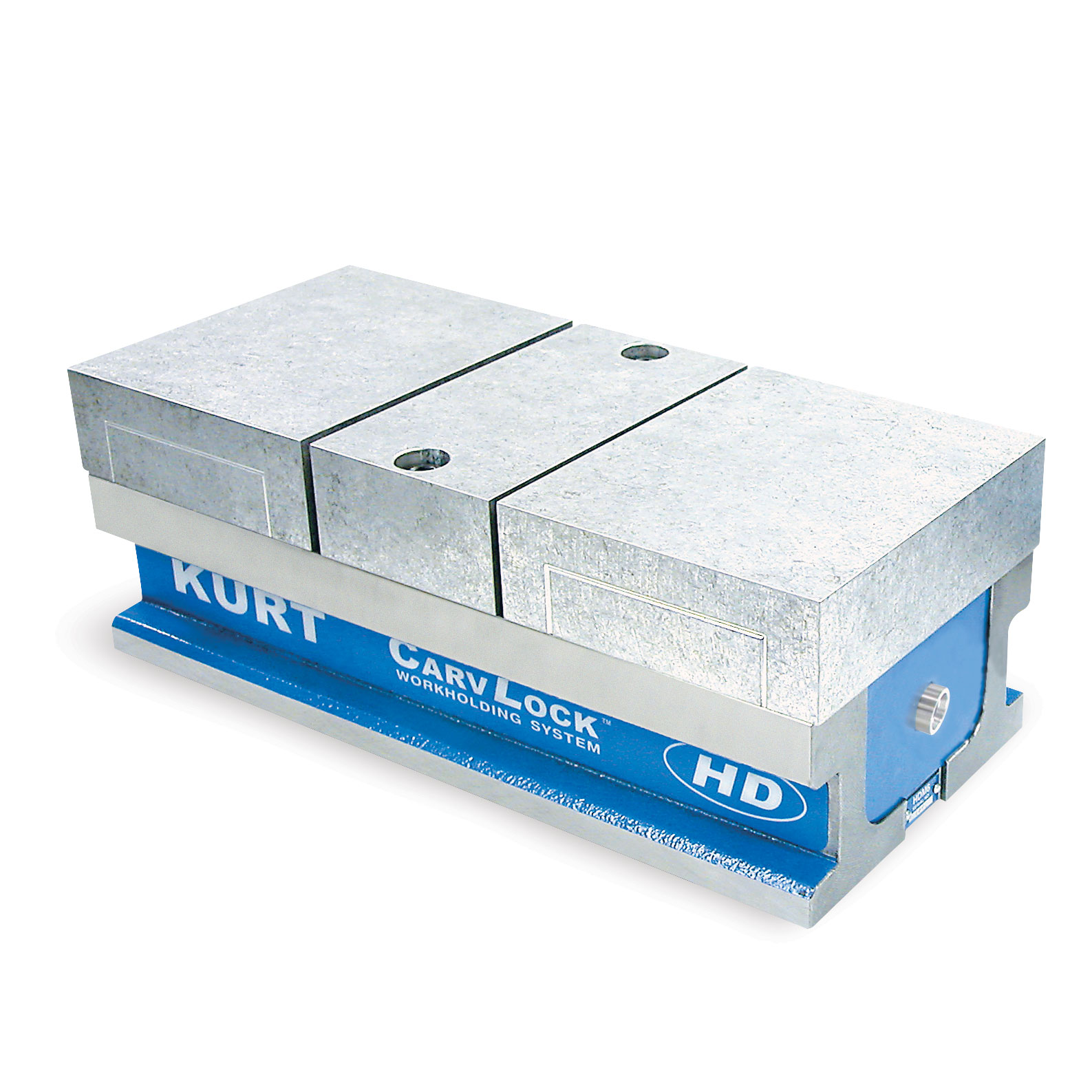

Kurt Hydraulic Vise Base Assembly, 6″ – HDHM6

Part No. HDHM6

$2,607.00

Hydraulic Vise Base Assembly, 6″

Description

Description

Jaws for HD Vises are sold separately and available with the following options:Machinable Aluminum Jaws, Machinable Ductile Iron Jaws and Aluminum Fixture Plate.

NOTE: This is a single acting hydraulic vise.

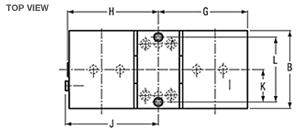

Dimensional Data

Dimensional Data

Hydraulic Vise Base Assembly

Hydraulic Vise Base Assembly

Hydraulic Vise Base Assembly

Hydraulic Vise Base Assembly

Hydraulic Vise Base Assembly

Inch MM
A 3.125 79.375
B 6.000 152.400
C 13.375 339.725
D 6.688 169.875
E 3.250 82.550
F 13.750 349.250
G 6.875 174.625
H 6.875 174.630
K 2.500 63.500
L 5.000 127.000
M 5.000 127.000
N 1.728 43.891
O 6.000 152.400
P 0.250 6.350
Q 3.312 84.120
R 0.969 24.610
S 0.522 13.260
T 7/16-20 UNF 7/16-20 UNF
T O-RING PORT O-RING PORT
U 0.438 11.125
V 2.125 53.975
W 3.875 98.425
X M10 x 1.5 M10 x 1.5
Z 1.000 25.400
AA 0.984 25.000
BB 2.953 75.000
CC 5.000 127.000
DD 1.969 50.000
EE 2.000 50.800
GG 1/2 1/2
HH M12 M12
JJ 0.625 15.875
KK 0.630 16.000
LL 3.250 82.550
MM 3.750 95.250
NN 0.938 23.830
OO 0.730 18.540
PP 1.206 30.630
QQ 13.250 336.550
RR 13.750 349.250
SS 2.400 60.960
TT 1.190 30.330
UU 0.125 3.180
VV 0.375 9.530
