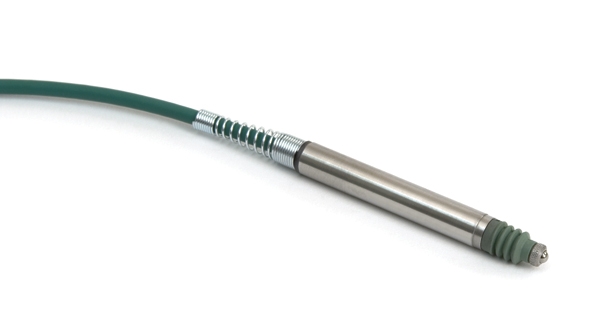

Kurt KDP 5.0 – 5.0mm spring
$622.00
Body 8mmMaximum Stroke 5mmRepeatability 0.15?mTemperature Min -40?CTemperature Max +100?CPre-travel 0.15mmPost-travel 0.85mmTip Force: Standard Va
Description
Description
Body 8mm
Maximum Stroke 5mm
Repeatability 0.15µm
Temperature Min -40°C
Temperature Max +100°C
Pre-travel 0.15mm
Post-travel 0.85mm
Tip Force: Standard Vacuum +/-20%(N) .07 @ mid position
Tip Force: Feather Touch +/-30% (N) 0.03 @ mid position
Temperature Coefficient 0.01%FS/°C
Standard Tip: Carbide Ball
*Contact us for more detailed specificiatons and other contact tip options.
Body 8mm Maximum Stroke 5mm Repeatability 0.15µm Temperature Min -40°C Temperature Max +100°C Pre-travel 0.15mm Post-travel 0.85mm Tip Force: Standard Vacuum +/-20%(N) .07 @ mid position Tip Force: Feather Touch +/-30% (N) 0.03 @ mid position
