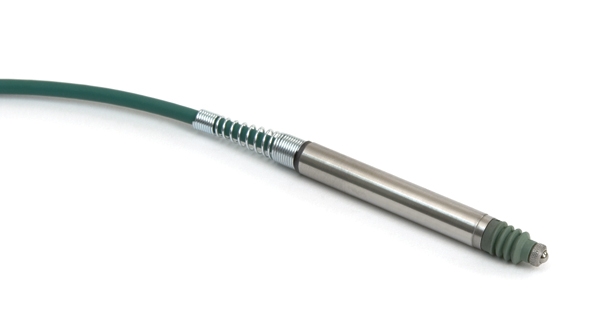

Kurt KDP 5.0P – 5.0mm pneumatic
$689.00
Body 8mmMaximum Stroke 5mmRepeatability 0.15?mTemperature Min -40?CTemperature Max +100?CPre-travel 0.15mmPost-travel 0.85mmTip Force: Standard Va
Description
Description
Body 8mm
Maximum Stroke 5mm
Repeatability 0.15µm
Temperature Min -40°C
Temperature Max +100°C
Pre-travel 0.15mm
Post-travel 0.85mm
Tip Force: Standard Vacuum +/-20%(N) .08 @ 0.4 Bar, 2.8 @ 1 Bar
Tip Force: Feather Touch +/-30% (N) 0.18 @ 0.3 Bar, 1.1 @ 1 Bar
Tip Force: Jet +/-20% (N) 0.85 @ 1 Bar
Temperature Coefficient 0.01%FS/°C
Standard Tip: Carbide Ball
*Contact us for more detailed specificiatons and other contact tip options.
Body 8mm Maximum Stroke 5mm Repeatability 0.15µm Temperature Min -40°C Temperature Max +100°C Pre-travel 0.15mm Post-travel 0.85mm Tip Force: Standard Vacuum +/-20%(N) .08 @ 0.4 Bar, 2.8 @ 1 Bar Tip Force: Feather Touch +/-30% (N) 0.18 @ 0.3 Bar
