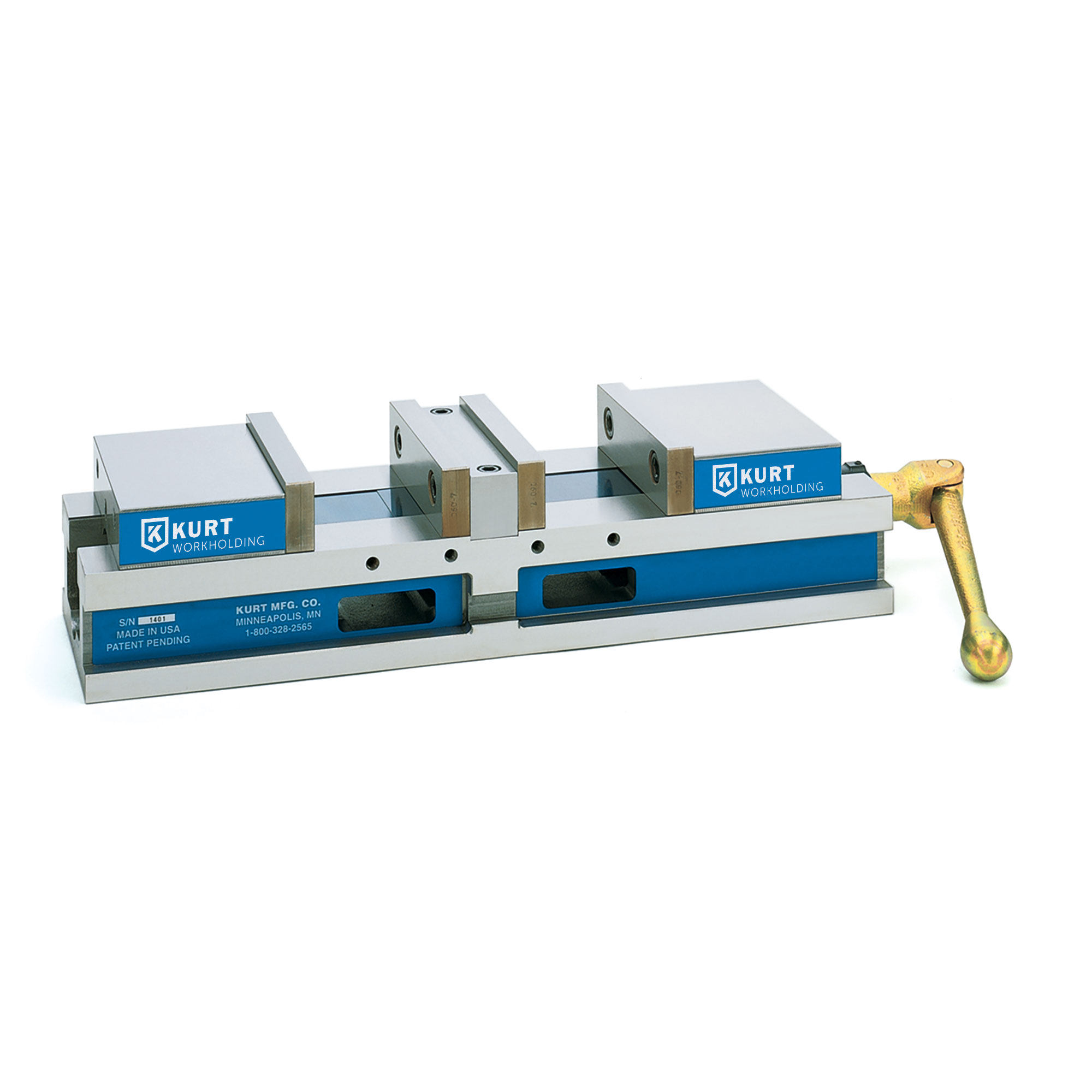

Kurt Manual DoubleLock Vise, 8″ – DL800
Part No. DL800
$6,543.00
Manual DoubleLock Vise, 8″
Description
Description
Use your DoubleLock vise to it’s full capacity with the DoubleLock convertible kit. The kit is available for the DL800 vises.

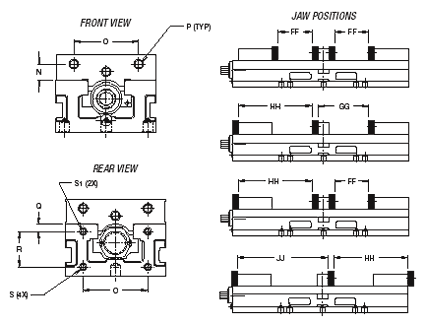

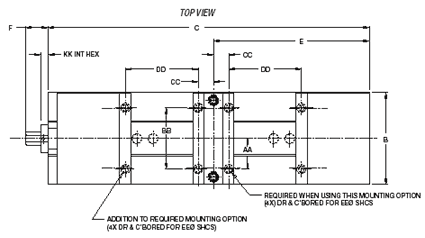

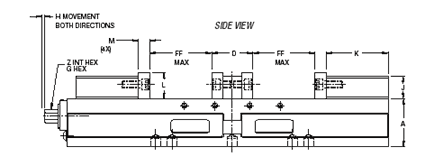

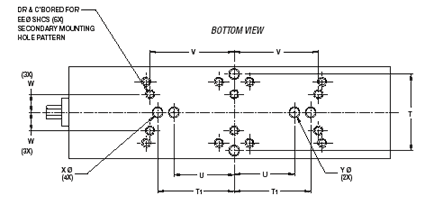

Dimensional Data
Dimensional Data
| Inch | Pounds | |
| A | 3.750 | x |
| B | 8.060 | x |
| C | 30.000 | x |
| D | 4.000 | x |
| E | 15.000 | x |
| F | 4.250 | x |
| G | 7/8 | x |
| H | 0.190 | x |
| J | 1.965 | x |
| K | 6.000 | x |
| L | 2.200 | x |
| M | 1.075 | x |
| N | 1.220 | x |
| O | 4.750 | x |
| P | 5/8-11 | x |
| Q | 0.750 | x |
| R | 2.375 | x |
| S | 1/2-13 | x |
| T | 7.000 | x |
| V | 8.000 | x |
| W | 3.625 | x |
| X | 0.750 | x |
| AA | 2.500 | x |
| BB | 5.000 | x |
| CC | 1.000 | x |
| DD | 7.500 | x |
| EE | 1/2 | x |
| FF | 6.000 | x |
| GG | 8.925 | x |
| HH | 13.075 | x |
| JJ | 16.000 | x |
| S1 | 5/8-11 | x |
| T1 | 7.000 | x |
| Ship wt | x | 250 |
