Kurt Tower 630 mm Base, w/ Cast Jaws, 6″ – CTHDLM646C
Part No. CTHDLM646C
$11,525.00
Tower 630 mm Base,w/ Cast Jaws, 6″
Resources
Resources

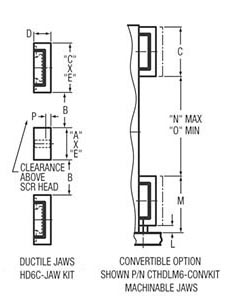

Dimensional Data
Dimensional Data
| Inch | MM | |
| A | 24.803 | 630.000 |
| B | 1.500 | 38.100 |
| C | 2.760 | 70.000 |
| D | 8.500 | 215.900 |
| E | 6.000 | 152.400 |
| F | 10.000 | 254.000 |
| G | 20.000 | 508.000 |
| H | 9.842 | 250.000 |
| J | 19.685 | 500.00 |
| K | 5/8 SHCS | M16 SHCS |
| L | 1/2 SHCS | M12 SHCS |
| M | 0.709 | 18.000 |
| N | 3.937 | 100.000 |
| O | 7.874 | 200.000 |
| P | x | M16 X 2.0 |
| U | 0.984 | 25.000 |
| V | 22.450 | 570.230 |
| W | 21.590 | 548.380 |
| X | 21.000 | 533.400 |
| Y | 10.192 | 258.880 |
| Z | 0.750 | 19.050 |
| AA | 0.156 | 3.960 |
| BB | 0.750 | 19.050 |
| BB | EXT HEX | EXT HEX |
| CC | 0.625 | 15.875 |
| CC | INT HEX | INT HEX |
| DD | 1.125 | 28.580 |
| EE | 3.125 | 79.380 |
| FF | 0.375 | 9.530 |
| GG | x | M8 x 1.25 |
| Estimated Shipping Weight of Vise Body Only | Contact Factory | Contact Factory |
