Kurt Tower w/ 300 mm Base, w/ Metric Hard Jaws, 4″ – CTHDLM443J
Part No. CTHDLM443J
$9,419.00
Tower w/ 300 mm Base, w/ Metric Hard Jaws, 4″

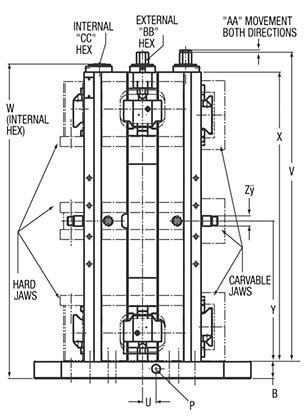

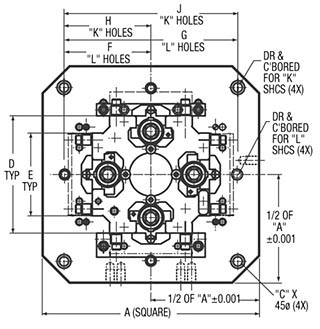

Dimensional Data
Dimensional Data
| Inch | MM | |
| A | 11.811 | 300.000 |
| B | 1.000 | 25.400 |
| C | 0.790 | 20.000 |
| D | 6.250 | 158.750 |
| E | 4.000 | 101.600 |
| H | 5.000 | 127.000 |
| J | 10.000 | 254.000 |
| K | 1/2 SHCS | M12 SHCS |
| M | 0.590 | 15.000 |
| N | 1.575 | 40.000 |
| O | 3.150 | 80.000 |
| P | x | M12 X 1.75 |
| V | 17.701 | 449.600 |
| W | 17.763 | 451.180 |
| X | 16.375 | 415.920 |
| Y | 7.875 | 20.030 |
| Z | 0.590 | 15.000 |
| AA | 0.120 | 3.050 |
| BB | 0.562 | 14.280 |
| BB | EXT HEX | EXT HEX |
| CC | 0.437 | 11.100 |
| CC | INT HEX | INT HEX |
| DD | 1.375 | 34.920 |
| EE | 2.563 | 65.100 |
| FF | 0.375 | 9.530 |
| GG | x | M8 x 1.25 |
| Estimated Shipping Weight of Vise Body Only | Contact Factory | Contact Factory |
